Specifications
Performance Dimensions
174 174
9811/5700-7
930
Note: Complies with ISO 22915-13.
Important: The following data is intended for quick
reference only. Always refer to the rating plate in the cab.
Refer to Fork Ratings, Working with the Machine,
Operation.

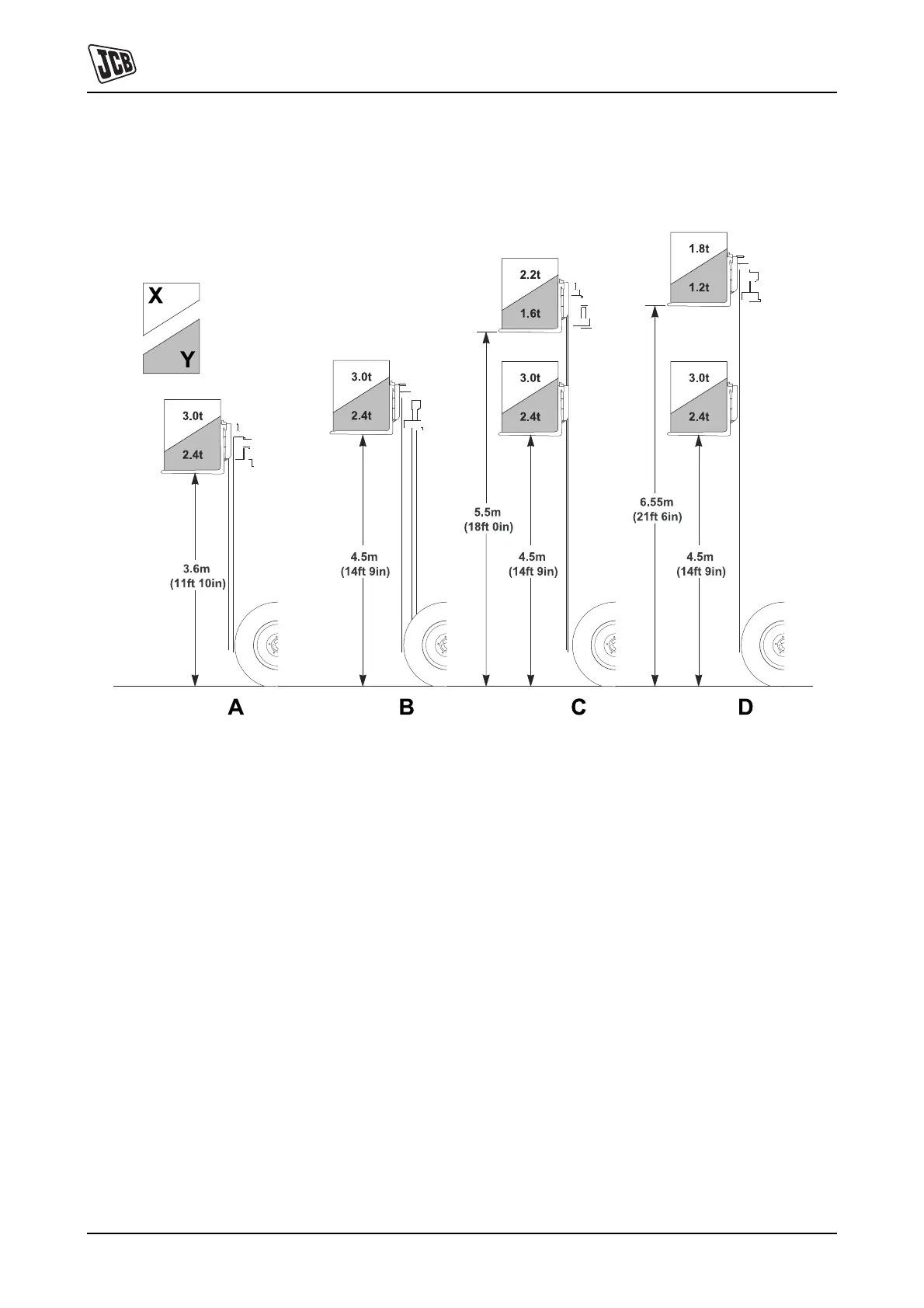

Fig 136. Lift Performance
A 3.6m (11ft 10in) Duplex mast
B 4.5m (14ft 9in) Free lift mast
C 5.5m (18ft 0in) Triplex mast
D 6.55m (21ft 6in) Triplex
X Bar and Industrial carriage
Y Multi-hitch carriage forkframe and forks
