Specifications
Performance Dimensions
175 175
9811/5700-7
940
Note: Complies with ISO 22915-13.
Important: The following data is intended for quick
reference only. Always refer to the rating plate in the cab.
Refer to Fork Ratings, Working with the Machine,
Operation.

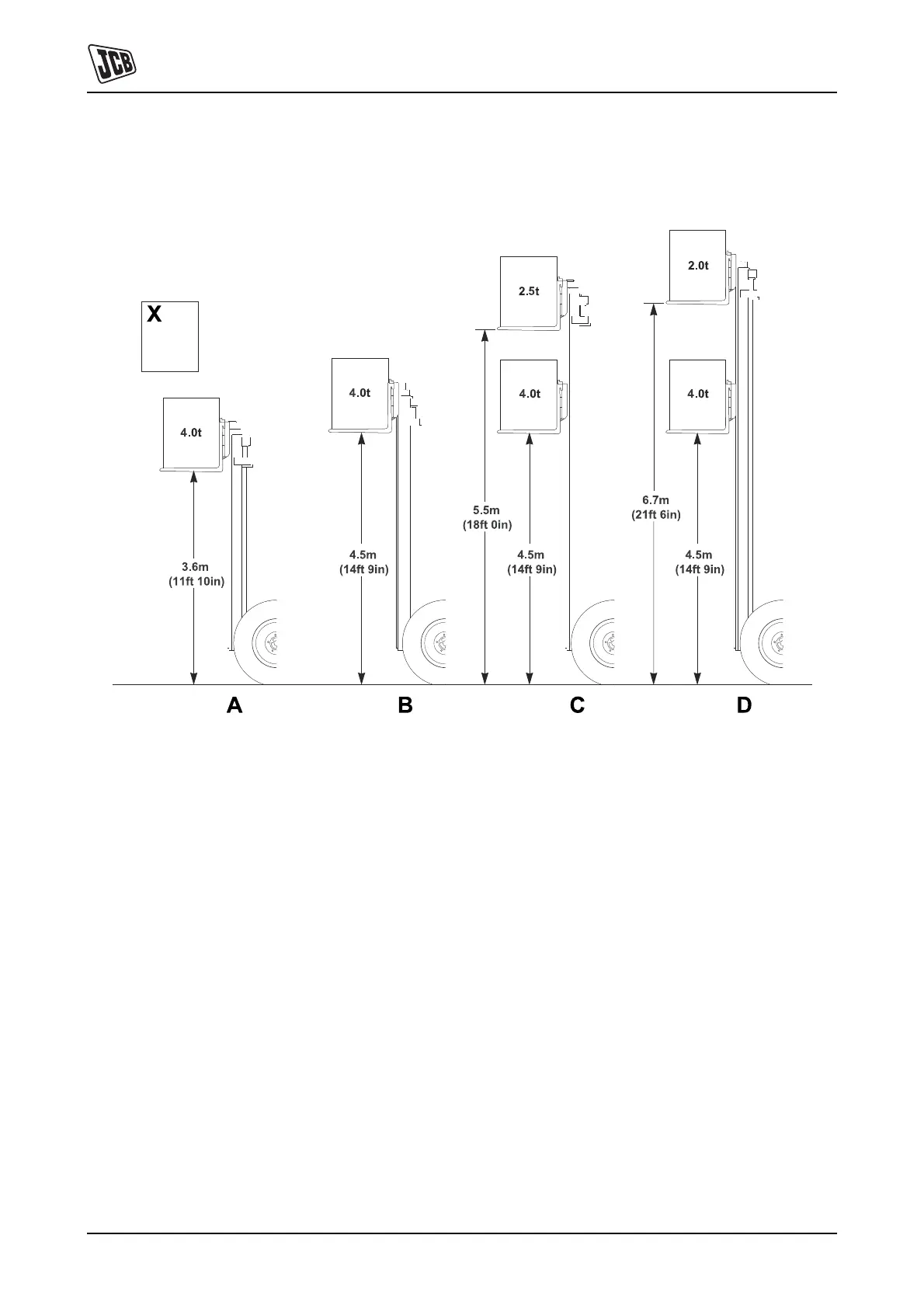

Fig 137. Lift Performance
A 3.6m (11ft 10in) Duplex mast
B 4.5m (14ft 9in) Free lift Triplex mast
C 5.5m (18ft 0in) Triplex mast
D 6.7m (21ft 6in) Triplex
X Bar and Industrial carriage
