Operation

Lifting the Machine

40 9831/3200-3 40

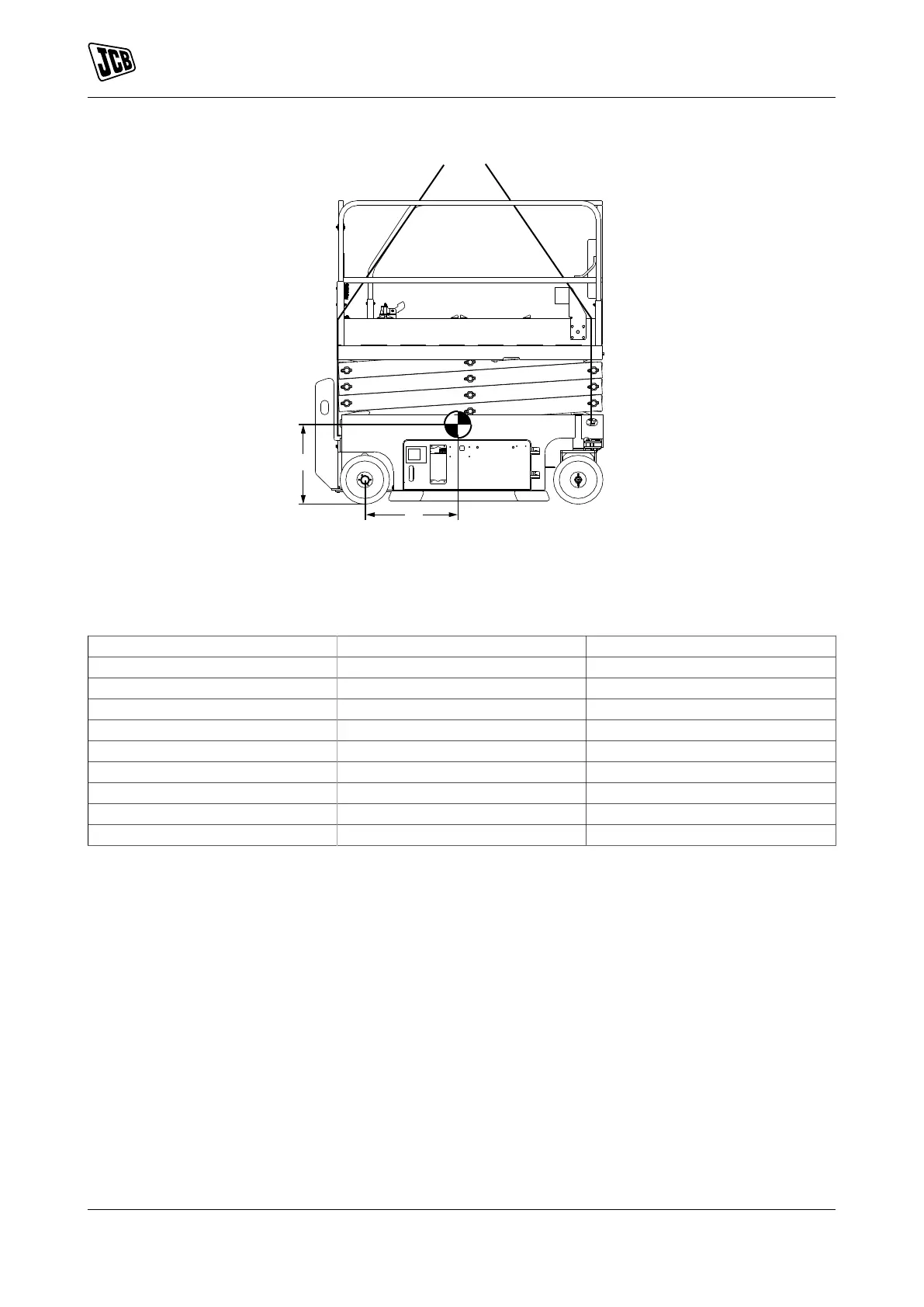

Figure 30.

X X axis distance Y Y axis distance

5.1. You must consider the location of the centre of gravity on the machine, when you lift the machine.

Refer to Table 5.

Table 5. Location of the Centre of Gravity

Machine Model X axis Y axis

S1530E 620mm 511mm

S1930E 604mm 540mm

S2032E 955mm 625mm

S2632E 956mm 672mm

S2046E 801mm 530mm

S2646E 806mm 570mm

S3246E 808mm 638mm

S4046E 815mm 676mm

S4550E 1,058mm 754mm
