© 2017 JCM Global Corporation 17 Part No. 960-000194R_Rev. A
GEN5™ Printer
Manual Cleaning
Use the following procedure for Manual Cleaning of the Printer:
1. Slide the Printer out of the EGM.
2. Remove Tickets from the Printers Paper Tray (Figure 11 a).
3. Press the Lid Release Lever toward the rear of the Printer to release the lid
(Figure 11 b).
4. Rotate the Lid up in the direction indicated by the red arrow (Figure 11 c
and Figure 12 a on page 18) to access the Printer interior.
5. Use Non-Flammable Compressed Air to blow out excessive dust and dirt
from the following areas within the Printer:
– Ticket-In Slot (Figure 11 d)
– Presenter Assembly (refer to Figure 12 b on page 18)
– Print Head (refer to Figure 13 b on page 18)
– Paper Tray (Figure 11 a)
d
a
b
c

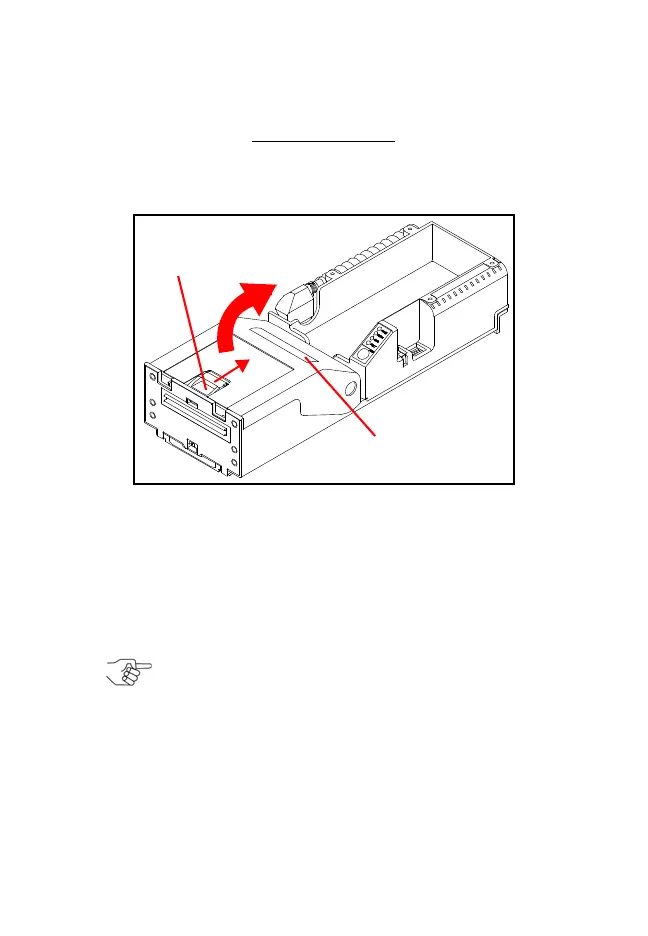

Figure 11 Cleaning the Ticket-In Slot
NOTE: Insert the Compressed Air canister’s tube into
the Ticket-In Slot approximately 1 inch from the right
edge of the Slot.
GEN5_FlipBookRevA_v15.fm Page 17 Friday, June 30, 2017 9:20 AM
