Part No. 960-100941R_Rev. A © 2016 JCM American Corporation
TBV Transaction Based Validator JCM® Training Overview October, 2016
DIP SWITCH TEST
The DIP Switch Test verifies the operation of the DS1 or DS3 8-position DIP
Switch. To perform this test, proceed as follows:
1. Click the DIP Switch tab (Figure 14 a).
2. Click the “
Start” Screen Button to begin the test.
3. Change each Switch’s position from
OFF to ON to verify the operation of the
DIP Switch.
The Status indicator for each Switch will change from
OFF to ON when the
Switch position is changed.
4. Click the “
Stop” Screen Button to end the test.

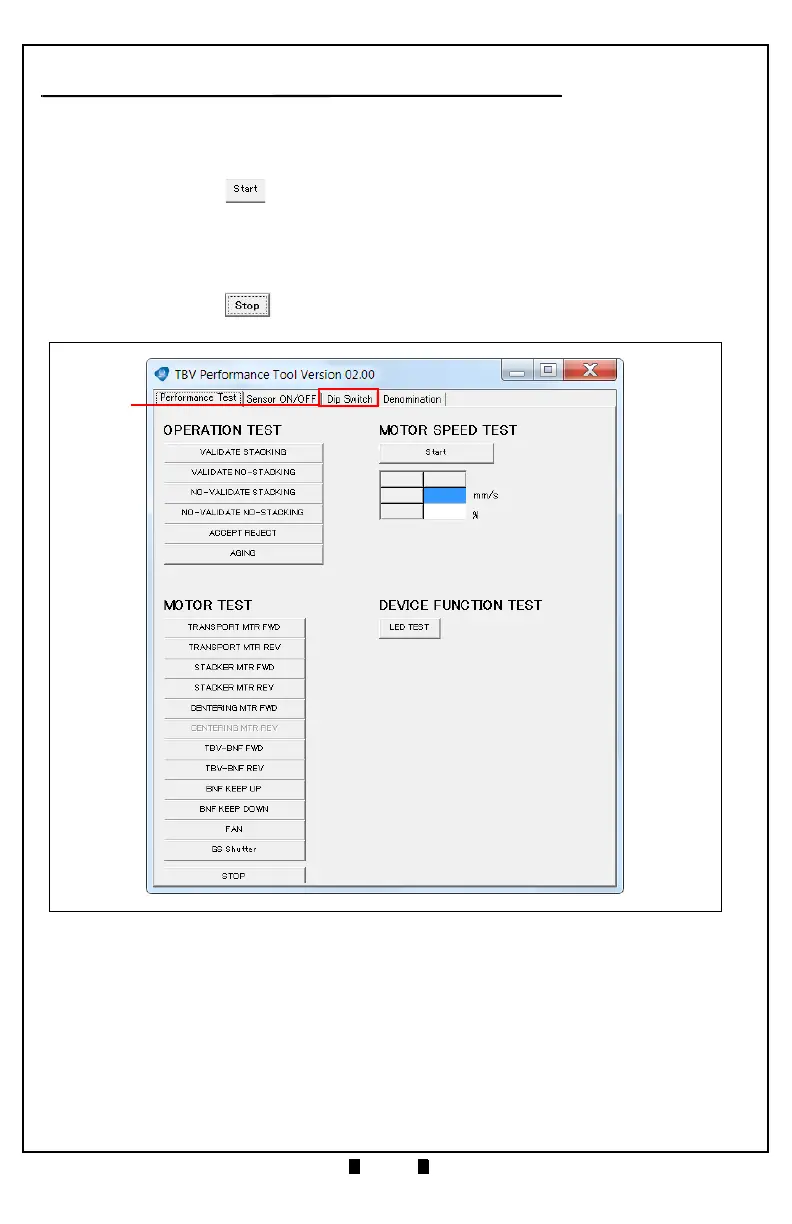

Figure 14 TBV Performance Tool - DIP Switch Tab
