TBV Transaction Based Validator JCM® Training Overview October, 2016
OPERATION TESTS
A CCEPTANCE T ESTS
To perform each Operation Test, proceed as follows:
1. Click the Performance Test tab (Figure 9 a).
2. In the
OPERATION TEST Section (Figure 9 b), click the desired Test Screen
Button to begin the test.
The Bezel LED will be lit
BLUE.
3. To start the Test, insert a Banknote into the TBV Unit.
4. Verify the Banknote’s value using either of the following methods:
•
LED Flash Count - For each Banknote inserted, the Bezel LED will flash
PURPLE for the Denomination Value detected. Count the number of LED
Flashes then refer to Table 10 on page 18 for Denomination Flash Codes.
• Denomination Update - Click the Denomination tab (Figure 10 a) to view the
Denomination Screen, then click the “
Update” Screen Button
(Figure 10 b) to confirm the value of the Banknote inserted.
a
b

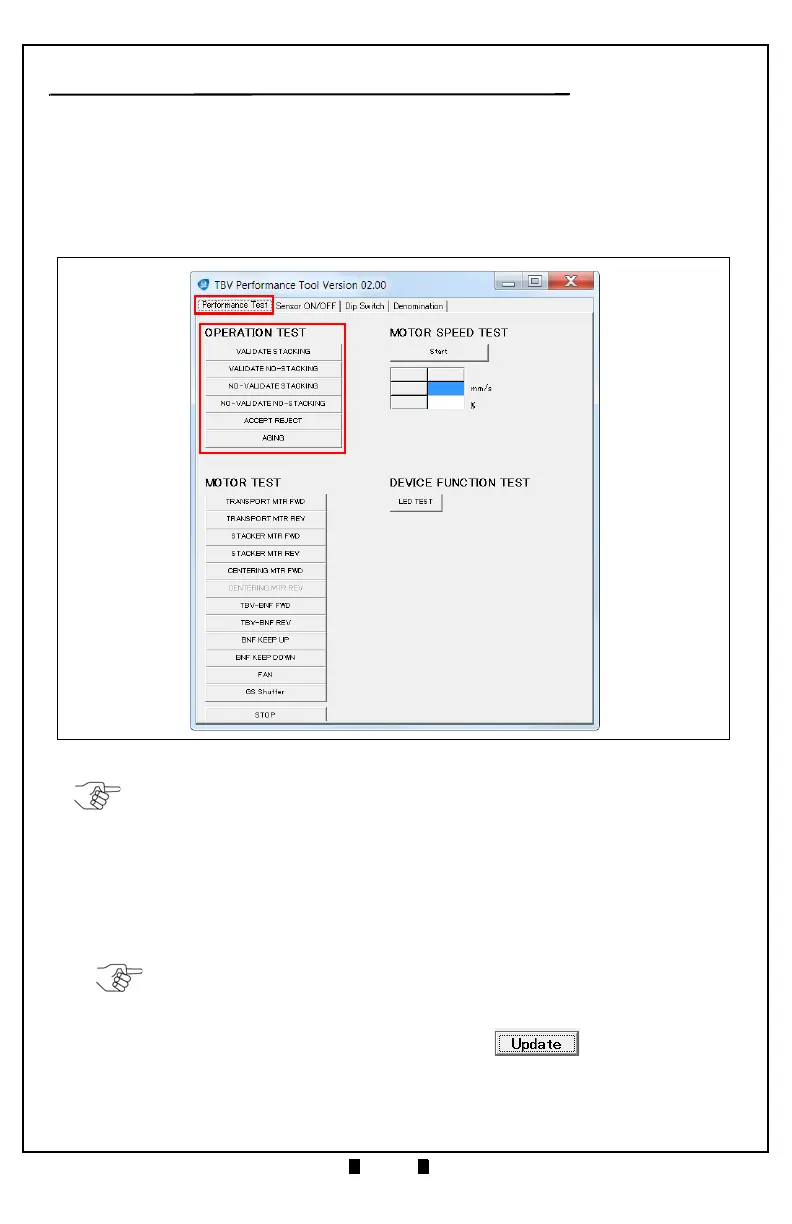

Figure 9 TBV Performance Tool - Operation Test Options
NOTE: For a complete list of Acceptance Test descriptions, refer to Table 10 on
page 18. Test information appears in RED at the bottom of the Performance Test
tab screen as each Test is running.
NOTE: For each Banknote inserted into the TBV Unit, the Flash Code repeats
three (3) times, then the Bezel LED color returns to BLUE.
