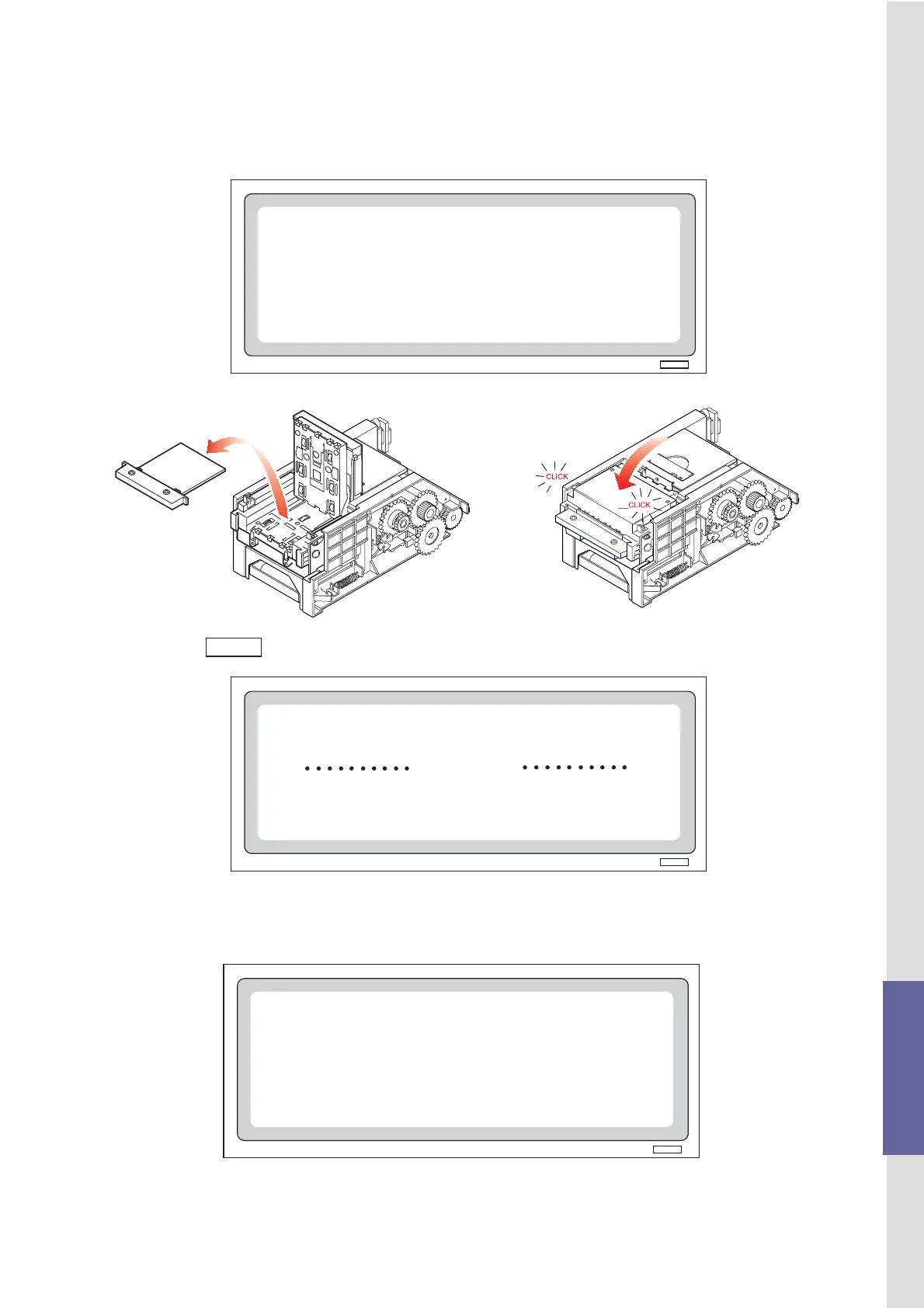

Pull out reference paper. Hit Enter Key.
<scr 7>
Adjusting XXXX
<scr 8>
Set MAG HEAD TESTER. Push Enter Key.
MAG GAIN ADJUST
<scr 9>
(9) When screen 7 appears, calibration with black and white calibaration papers is complete. Remove the
calibration paper and close the acceptor head. Make sure that the tabs on both side of the acceptor head
are firmly locked.
(10) Press the ENTER key to start calibration without calibration papes (no paper calibaration).
(11) When the calibration is complete, screen 9 appears.
Modelnumbers
Specifications
Operation Manual
Communication
Specifications
Disassembly
Assembly
Wiring Diagram Trouble Shooting
Calibration
Software Download
Parts List
WBA-SS Service Manual - 5 -
