Jconcepts BJ4 - Page 16

APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND
CVD CROSS PIN
SOLID
APPLY A SMALL AMOUNT
OF BLACK GREASE
1. SPREAD A SMALL AMOUNT OF BLACK GREASE ON THE OUTSIDE OF THE CVD COUPLING AND INSERT THE
COUPLING INTO THE AXLE AS SHOWN.
2. SPREAD A SMALL AMOUNT OF BLACK GREASE ON THE ROUND PORTION OF THE AXLE AND INSERT INTO THE
CVD BONE, ALIGNING THE CROSS HOLES.
3. INSERT THE CROSS PIN, MAKING SURE IT IS EVENLY SPACED ON BOTH SIDES OF THE CVD BONE.
4. APPLY A SMALL AMOUNT OF MIP THREAD LOCKING COMPOUND TO THE SET SCREW. ANGLE AND TURN
THE CVD SO THE SET SCREW CAN BE SCREWED IN WITH AN ALLEN WRENCH.
5. REPEAT THIS PROCEDURE FOR ALL OF THE CVD'S. SET THE COMPLETED CVD'S AND ADDITIONAL HARDWARE
ASIDE FOR LATER ASSEMBLIES.

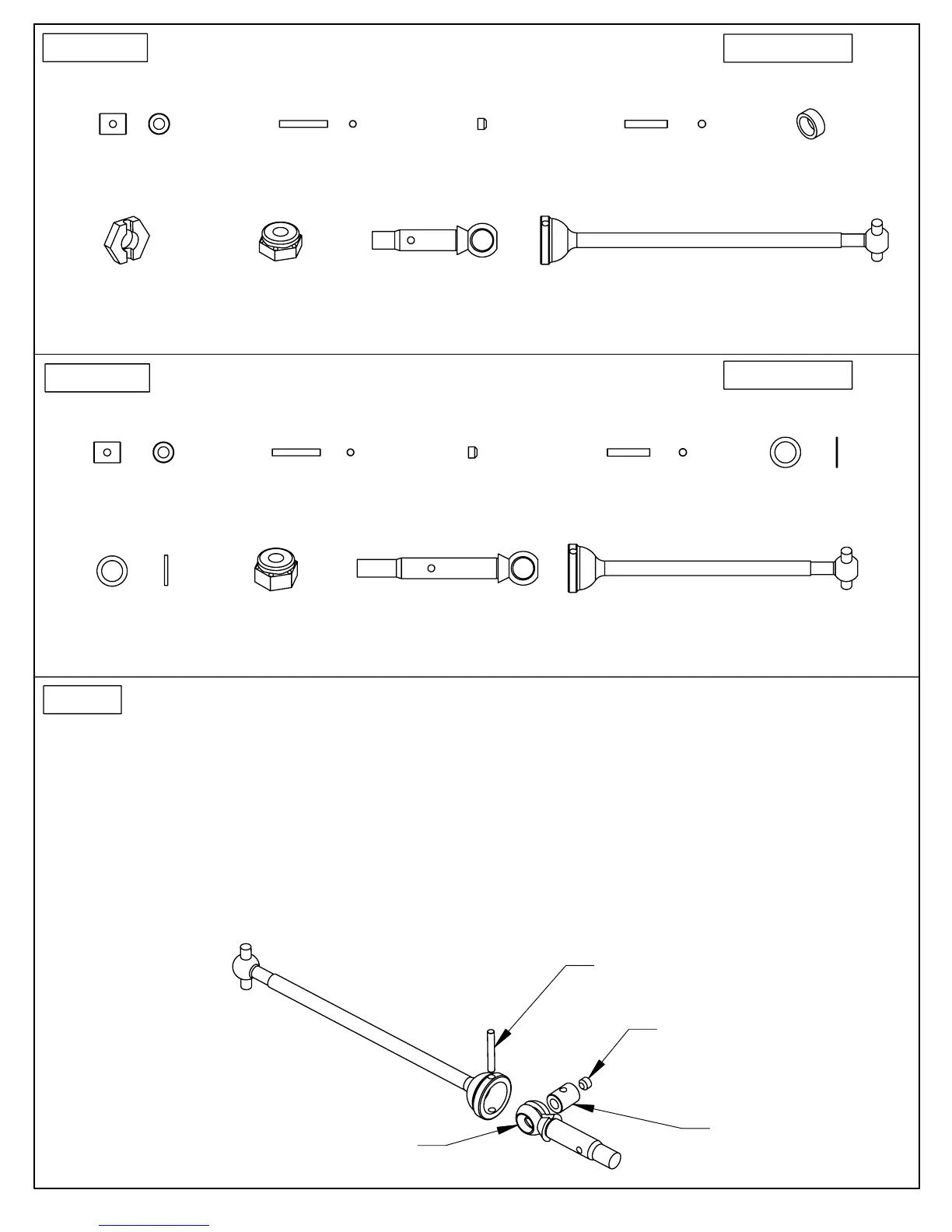

FRONT/REAR CVD ASSEMBLY:
1. .050" ALLEN WRENCH
APPLY A SMALL AMOUNT
OF BLACK GREASE
CVD FRONT BONE
x 2
CVD FRONT AXLE
x 2
CVD COUPLING
x 2
REMOVE THESE PARTS FOR THE REAR CVD'S
CVD CROSS PIN
x 2
CVD SET SCREW
x 2
BEARING SPACER
x 2
1. .050" ALLEN WRENCH
CVD ROLL PIN
x 2
CVD FRONT HEX
x 2
REAR CVD COMPONENTS
CVD FRONT
WHEEL NUT
x 2
CVD ROLL PIN
x 2
CVD REAR BONE
x 2
CVD REAR AXLE
x 2
CVD CROSS PIN
x 2
CVD SET SCREW
x 2
CVD AXLE
SHIM (THIN)
x 6
CVD AXLE
SHIM (THICK)
x 2
CVD COUPLING
x 2
CVD REAR
WHEEL NUT
x 2
FRONT CVD COMPONENTS
REMOVE THESE PARTS FOR THE FRONT CVD'S
CVD BAG
TOOLS USED
STEP 1
TOOLS USED
CVD BAG
