3. BALANCED XLR, PHONE INPUTS
3.입력단자
감전의위험이있으니스피커결선작업을하기전에반드시
기기의전원을꺼주시기바랍니다.
스피커결선시에는극성에주의하십시오.
스피커결선시에는전력손실과댐핑팩터를높이기위하여
충분히굵은선을최단거리로결선하십시오.
4.출력단자
3
Normal input level is 1.6V (+4dBu) 15K balanced with channal
A,B XLR and 1/4" phone jack input terminal for the extension to
another amplifier connect link jack to another amplifier input jack.
바란스형입력잭으로서입력감도는+4dBu(1.6V)15K입니다.
4. SPEAKER CONNECTORS
Turn the amplifier off befor touching the output connection.
WARNING:
To prevent electric shock do not operate the amplifier with
any of the conductor portion of the speaker wire exposed.
SPEAKER CABLING:
Larger wire sizes and shorter lengths minimize both loss of
power and degradation of damping factor.
Do not place speaker cables next to input wirning.
5. MODE SELECTOR
BRIDGE MONO
STEREO
Both channels operate separately : for stereo or 2-channel
operation, speaker impedance for each channel at least 4 .
Both channels are connected as a bridge : for a speaker
impedance of at least 8 .
5.운용모드
스테레오
브릿지모노
채널A+콘넥터를스피커+단자,채널B+콘넥터를스피커-단자와
연결하여출력을증강하기위한방식으로신호입력을채널A에만
각채널이분리되어운용할경우에사용되며스피커최소부하는
4입니다.
공급합니다.스피커최소부하는8입니다.
MODEL
CONDITION
AC 100V/120V AC 220/230/240V
JMA-900A
JMA-600A
JMA-300A
T20AL 250V
T15AL 250V
T8AL 250V
T4AL 250V
T8AL 250V
T10AL 250V
Ch-B Ch-A
Ch-B
Ch-A/BRIDGED
Ch-B
Ch-B
Ch-A
Ch-B /Ch-A BRIDGED
Ch-A
1
2
4 3
5
1.교류전원공급용소켓
교류전원공급용소켓이며,전면의주전원스위치가"OFF"된상태
에서전원코드를끼워주십시오.
2.교류전원휴즈용홀더
교류전원용휴즈홀더입니다.
1. AC INLET SOCKET
This is AC power cord socket. Please connect the power cord after
main power switch "off".
2. AC FUSE HOLDER
This is AC fuse holder.
There is DC in P.C.B board
MODEL
VOLTAGE
120VAC 220/230/240VAC
MOBILE35
120VAC
T6AL 250V(65TL)
T10AL 250V(65TL)
MOBILE60
T1AL 250V(S51)
T2AL 250V(S51)
T500mAL 50V(50T)
T1A 250V(50T)
IMPORTANT NOTICE:
When fuse is blown out, it should be replaced with the same type
fuse like following table, if it continuous to blown out, stop replacing
fuse and refer servicing to qualified person.
중요사항:휴즈를교체시에는반드시규정된정격휴즈를자격
이있는사람이교체하십시오.
R

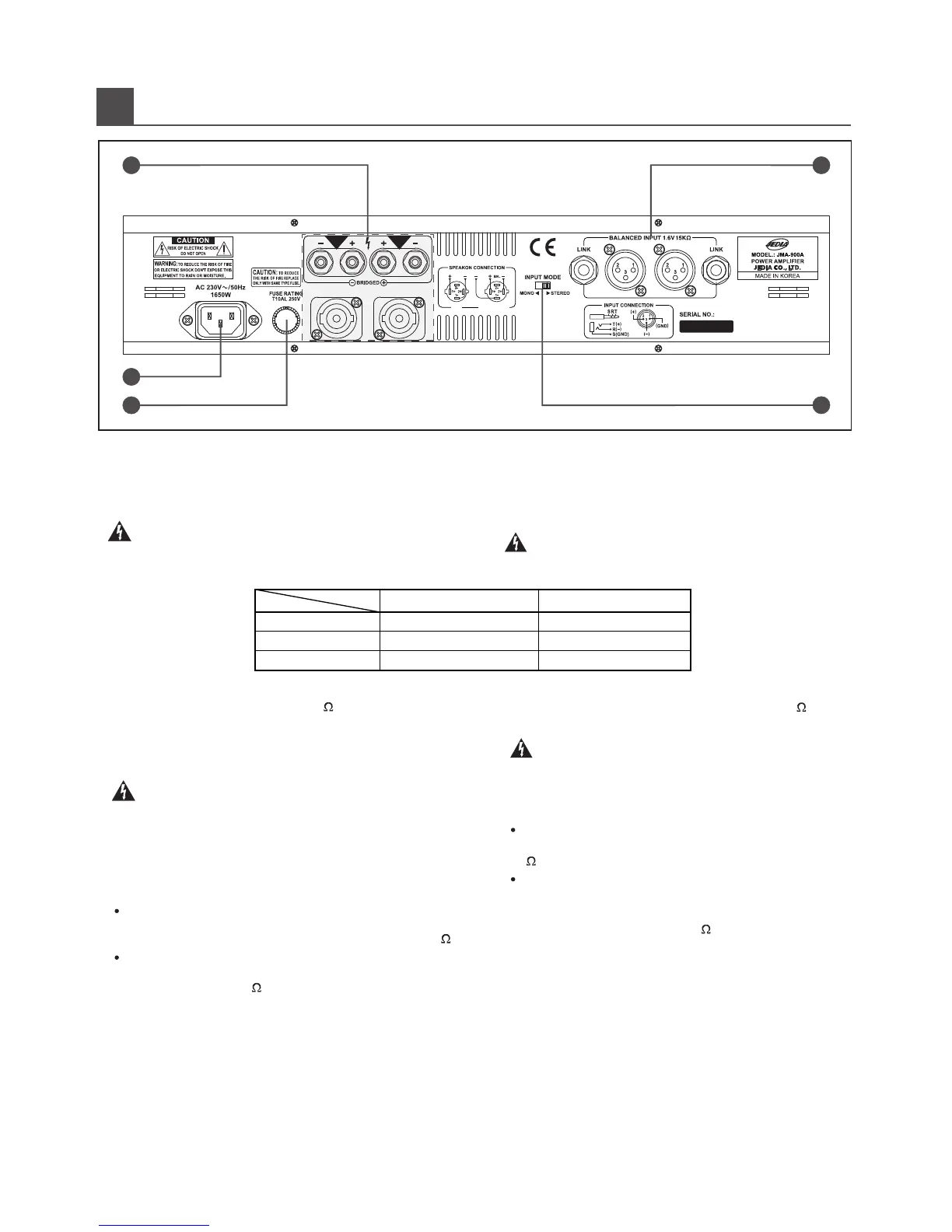

EAR PANEL CONTROLS (후면기능)
