IN CASE OF EMERGENCY 259

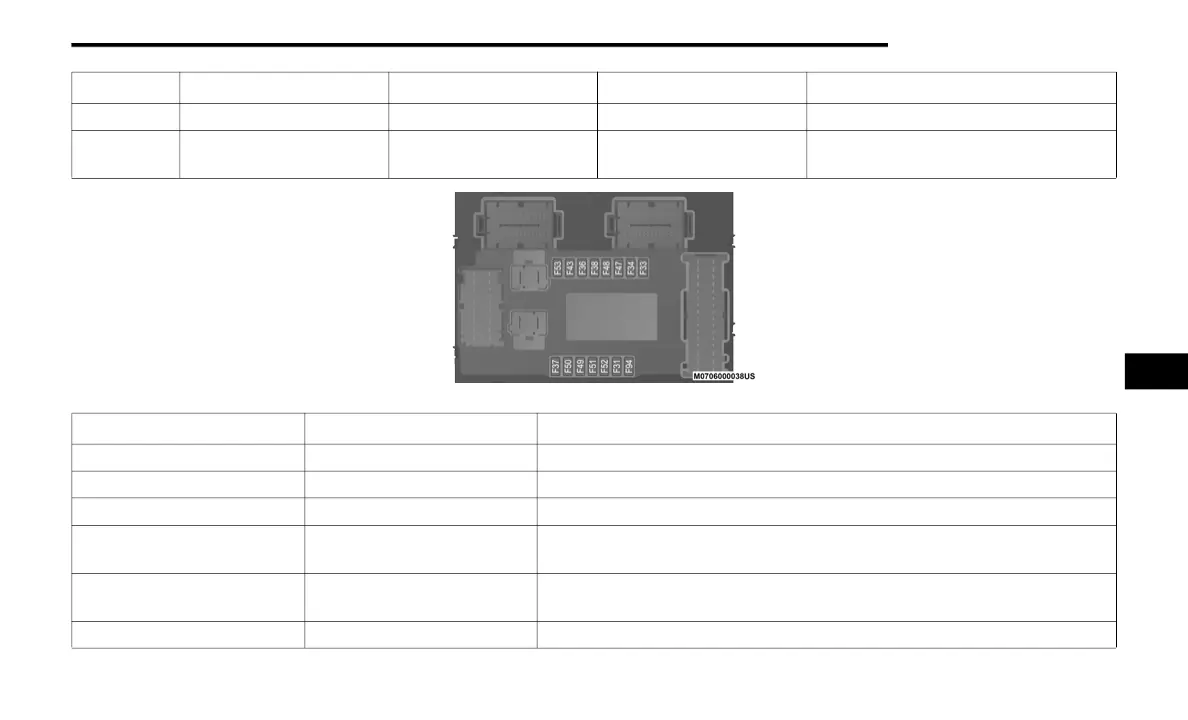

Body Computer Fuse Center
The controller is located at the left side of the
steering column at the bottom of the instrument
panel.
For the fuse replacement see an authorized
dealer.
Body Controller Fuse Cavities
F89 – – 30 Amp Green Heated Rear Window
F90 – – 5 Amp Tan
Intelligent Battery Sensor (IBS) 1.3L – If
Equipped
Cavity Maxi Fuse Cartridge Fuse Micro Fuse Description
Cavity Mini Fuse Description
F31 7.5 Amp Brown Flashes/Electrical Movement Front Seats/Fan Air Conditioning
F33 20 Amp Yellow Power Window Front (Passenger Side)
F34 20 Amp Yellow Power Window Front (Driver Side)
F36 15 Amp Blue
Supply Uconnect System, Air Conditioning, USB Port, Rear Ceiling Lights (With
Sunroof), E-Call, SGW
F37 10 Amp Red
System Power Forward Collision Warning Plus, All Wheel Drive (AWD), IPC, Brake
Pedal Switch (NC)
F38 20 Amp Yellow Central Locking
6
20_BV_OM_EN_USC_t.book Page 259
