E
58
F4-134 ENGINE

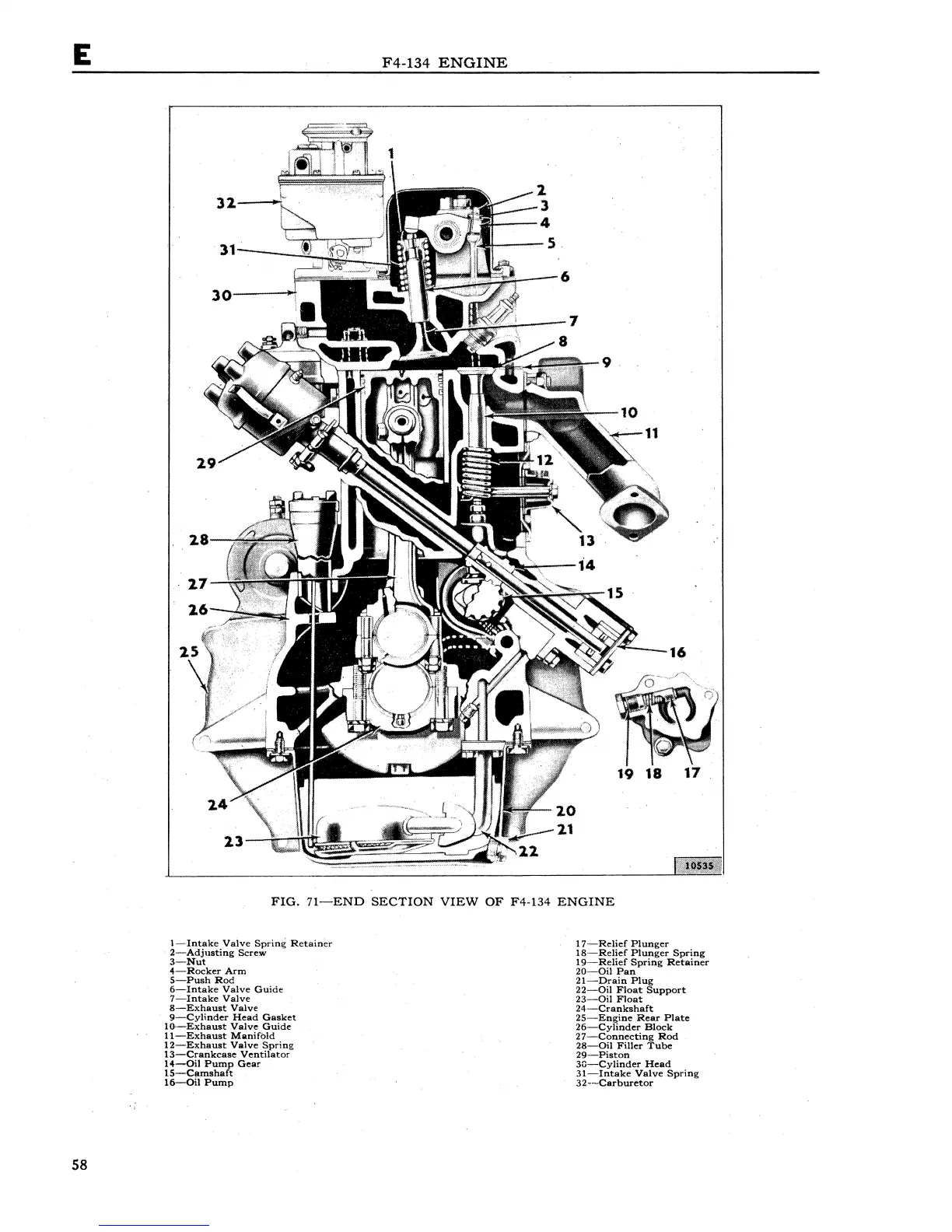

FIG. 71-END SECTION VIEW OF F4•134 ENGINE
1-lntake Valve Sprini Retainer
2-Adjusting Screw
3-Nut
4-Rocker Arm
5-Push Rod
6-lntake Valve Guide
7-lntake Valve
8-Exhaust Valve
9-Cylinder Head Gasket
10·-Exhaust Valve Guide
11-Exhaust Manifold
12-Exhaust Valve Spring
13-Crankcase Ventilator
14-0il Pump Gear ·
15-C!lmshaft
16-0il Pump
17-Relief Plunger
18-Relief Plunger Spring
19-Relief Spring Retainer
20-0il Pan
21-Drain Plug
22-0il Float Support
23-0il Float
24-Crankshaft
25-Engine Rear Plate
26-Cylinder Block
27-Connecting Rod
28-0il Filler Tube
29-Piston
3G-Cylinder Head
31-lntake Valve Spring
32--Carburetor
