'Jeep' UNIVERSAL and 'Jeep' DISPATCHER

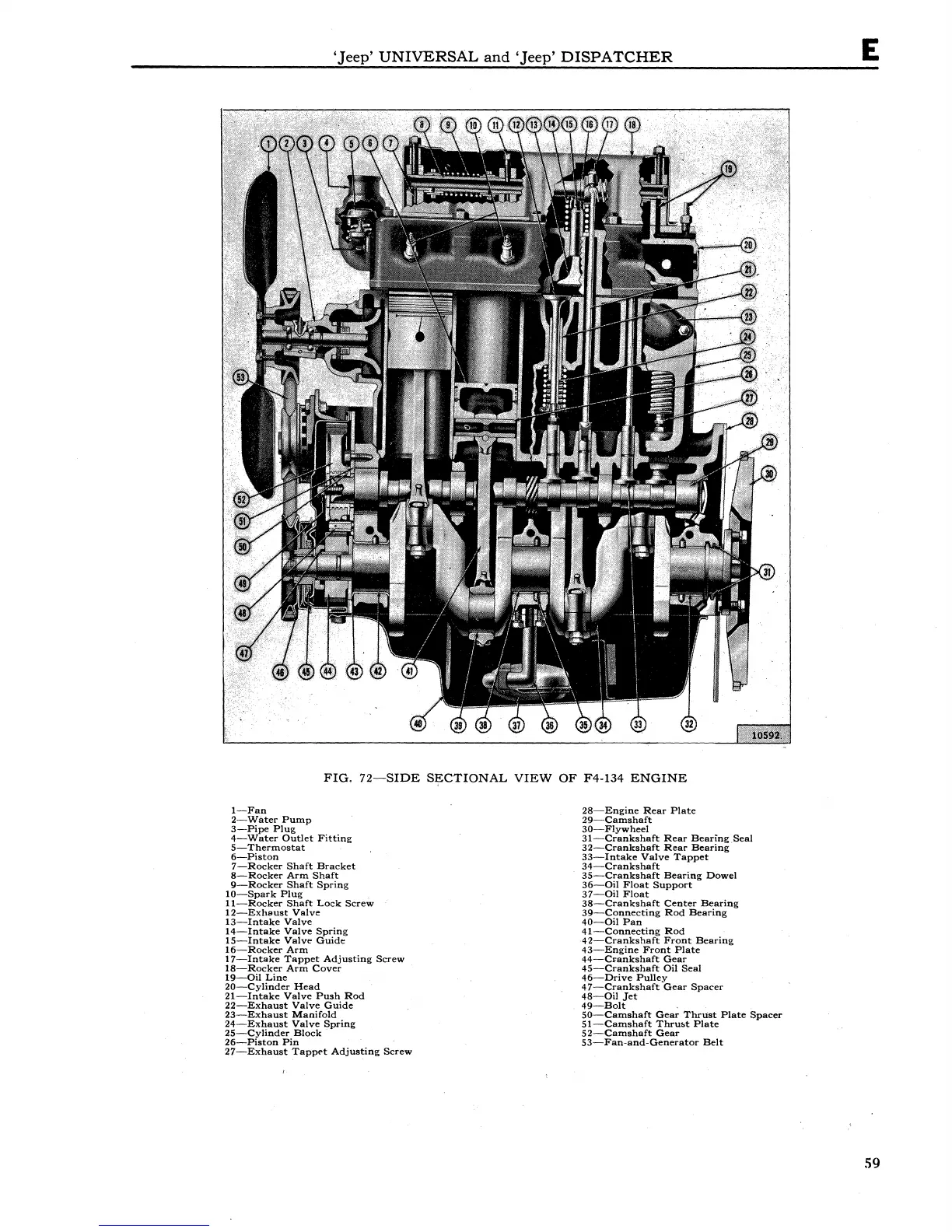

FIG. 72-SIDE SECTIONAL VIEW OF F4-134 ENGINE
1-Fan
2-Water Pump
3-Pipe Plug
4-Water Outlet Fitting
5-Thermostat
6-Piston
7 -Rocker Shaft Bracket
B-Rocker Arm Shaft
9-Rocker Shaft Spring
10-Spark Plug
11-Rocker Shaft Lock Screw
12-Exhaust Valve
13-Intake Valve
14-Intake Valve Spring
15-Intake Valve Guide
16-Rocker Arm
17-Intake Tappet Adjusting Screw
18-Rocker Arm Cover
19-0il Line
20-Cylinder Head
21--lntake Valve Push Rod
22-Exhaust Valve Guide
23-Exhaust Manifold
24-Exhaust Valve Spring
25-Cylinder Block
26-Piston Pin
27-Exhaust Tapp~t Adjusting Screw
28-Engine Rear Plate
29-Camshaft
30-Flywheel
31-Crankshaft Rear Bearing Seal
3 2-Crankshaft Rear Bearing
33-Intake Valve Tappet
34-Crankshaft
35-Crankshaft Bearing Dowel
36-0il Float Support
37-0il Float
38-Cran kshaft Center Bearing
39-Connecting Rod Bearing
40-0il Pan
41-Connecting Rod
4 2-Crankshaft Front Bearing
43-Engine Front Plate
44-Crankshaft Gear
45-Crankshaft Oil Seal
46-Drive Pulley
4 7 -Crankshaft Gear Spacer
48-0il Jet
49-Bolt
50-Camshaft Gear Thrust Plate Spacer
51-Camshaft Thru>t Plate
52-Camshaft Gear
53-Fan-and-Generator Belt
E
59
