·Jeep' UNIVERSAL and 'Jeep' DISPATCHER
A

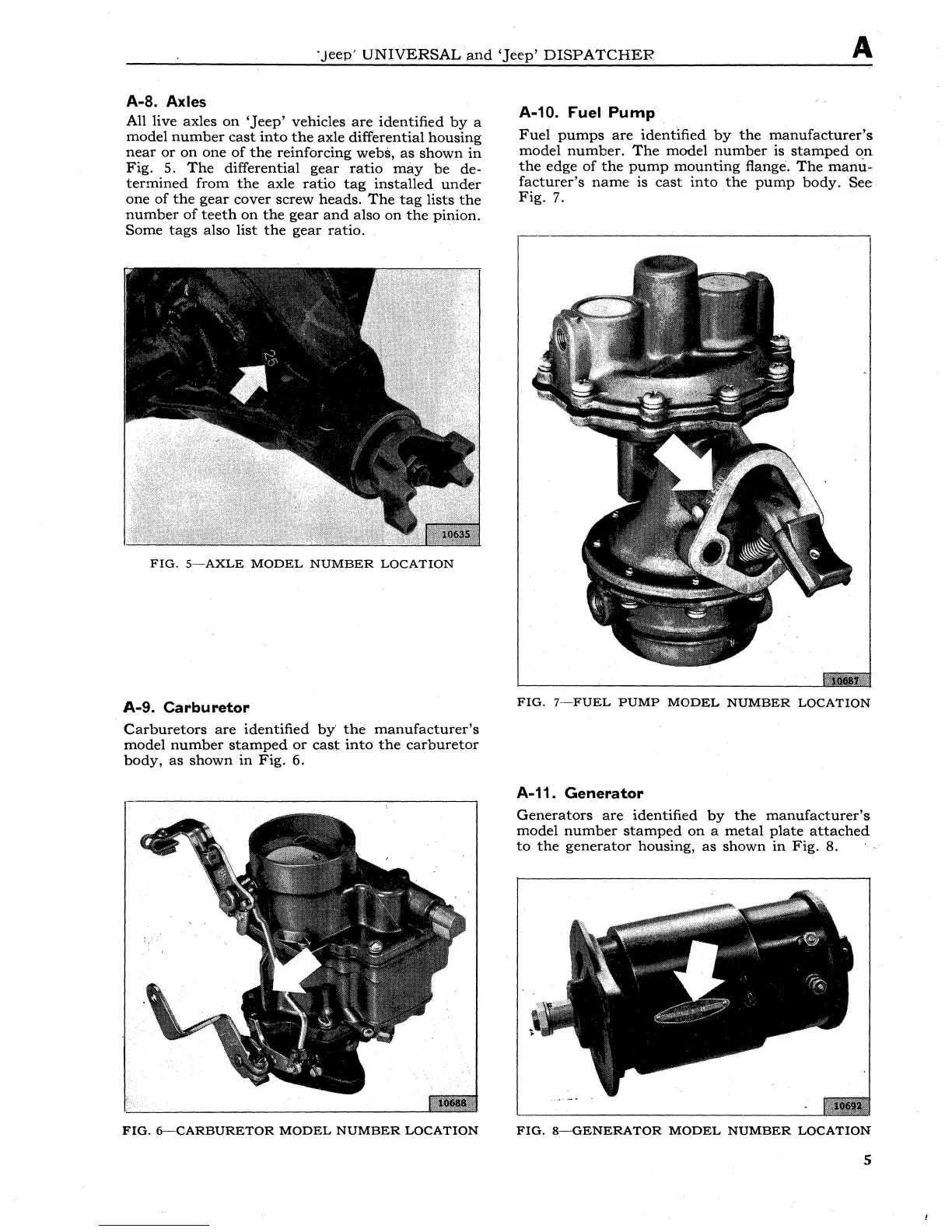

A-8. Axles
All live axles on 'Jeep' vehicles are identified by a
model number cast into the axle differential housing
near or on one of the reinforcing webs, as shown in
Fig. 5. The differential gear ratio may be de-
termined from the axle ratio tag installed under
one of the gear cover screw heads. The tag lists the
number of teeth on the gear and also on the pinion.
Some tags also list the gear ratio.
FIG. 5-AXLE MODEL NUMBER LOCATION
A-9. Carburetor
Carburetors are identified by' the manufacturer's
model number stamped or cast into the carburetor
body, as shown in Fig. 6.
FIG. 6-CARBURETOR MODEL NUMBER LOCATION
A-10. Fuel Pump
Fuel pumps are identified by the manufacturer's
model number. The model number is stamped on
the edge of the pump mounting flange. The manu-
facturer's name is cast into the pump body. See
Fig. 7.
FIG. 7-FUEL PUMP MODEL NUMBER LOCATION
A-11. Generator
Generators are identified by the manufacturer's
model number stamped on a metal plate attached
to the generator housing, as shown in Fig. 8.
FIG. 8-GENERATOR MODEL NUMBER LOCATION
5
