Jensen JCD3010 User Manual

JCD3010
4

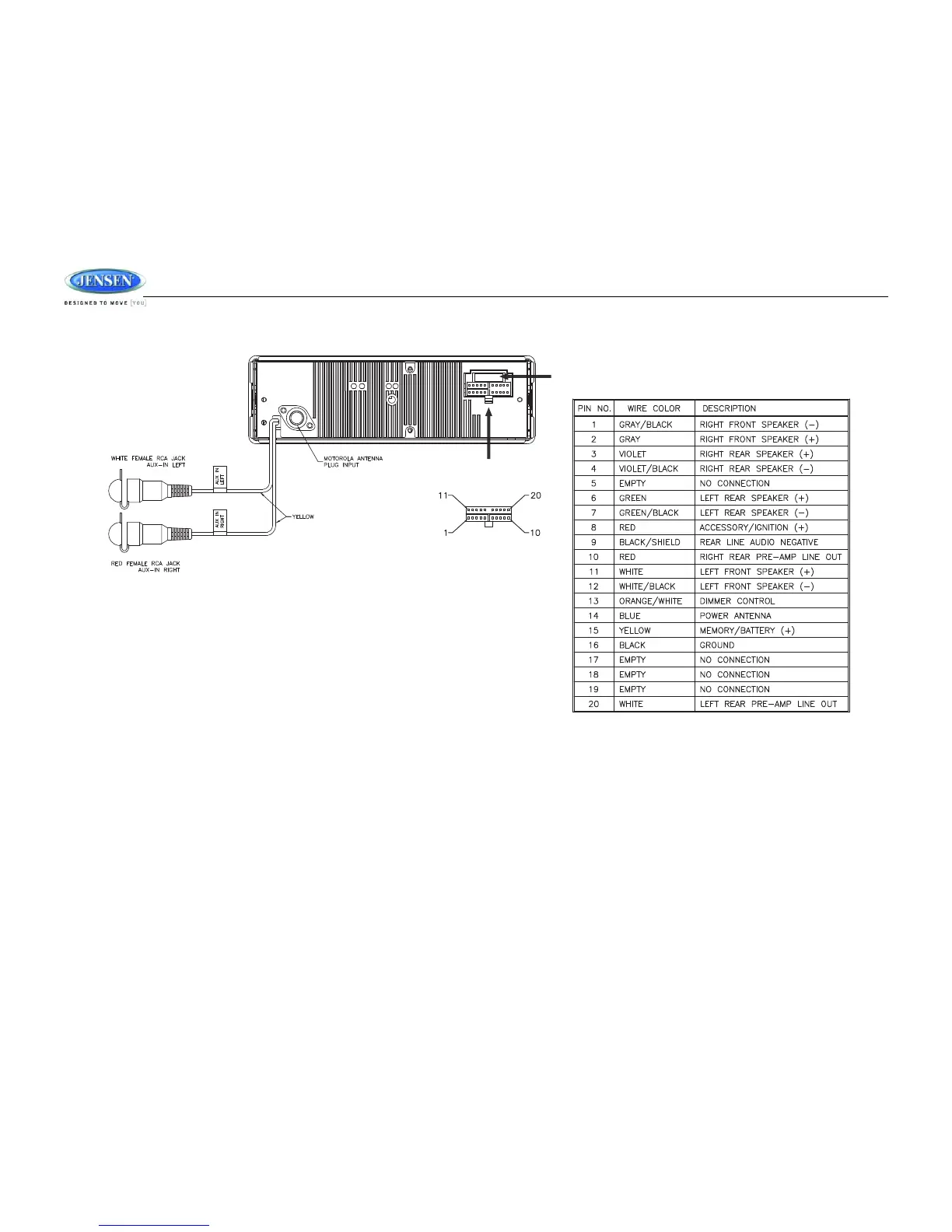

WIRING
15A FUSE
A-A
Wire Connector
A- A
SHOWN FROM PIN VIEW
ACCESSORY/IGNITION (+)
Connect to existing radio accessory fuse or
+12 VDC switched power source.
POWER ANTENNA
Connect to power antenna or amplifier. If not
used, tape bare end of wire.
MEMORY/BATTERY (+)
GROUND
Connect to battery or 12 volt power source
that is always live. The radio will not work if
this wire is not connected.
Connect to ground terminal or clean,
unpainted metal part of chassis.

Jensen JCD3010 Specifications

General

Brand	Jensen
Model	JCD3010
Category	Car Receiver
Language	English
