WARNING!
Do not connect the +12VDC ACC switched wire to the
battery. This wire MUST be connected to the Accessory/
Ignition wire or a +12 volts switched power source.

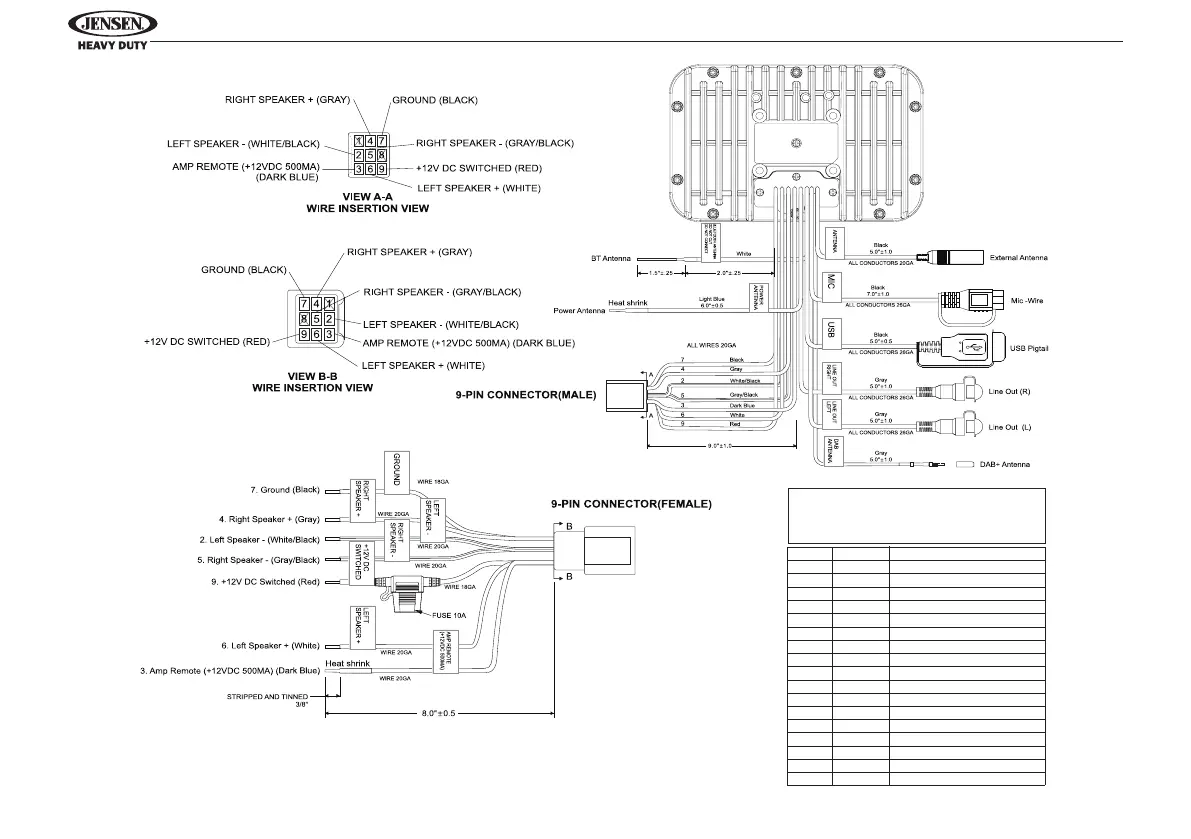

Pin No.Color Description
1
BlackGround
2
N/A No Connection
3
Red +12V DC Switched
4Gray Right Speaker+
5Gray/Black Right Speaker-
6White Left Speaker+
7
N/A No Connection8
White/Black Left Speaker-
9
Dark Blue Amp Remote(+12VDC 500MA)
N/AWhiteBT Antenna
N/A Light Blue Power Antenna
External Antenna
N/ABlack
Black
USB Pigtail
N/A
N/A
N/A
N/A
N/A
Gray/Red Line Out(R)
Gray/White Line Out(L)
BlackMic-Wire
Gray DAB+Antenna
