POWER SOURCE (AC ADAPTOR ONLY)
The JTA-245 is powered by an external AC-DC adaptor with an output of DC 5V 2A .
POWER CONNECTION
1. Connect the cord of the power adaptor to the DC IN JACK (#18) at the back of the unit.
2. Plug the power adaptor into a household wall socket

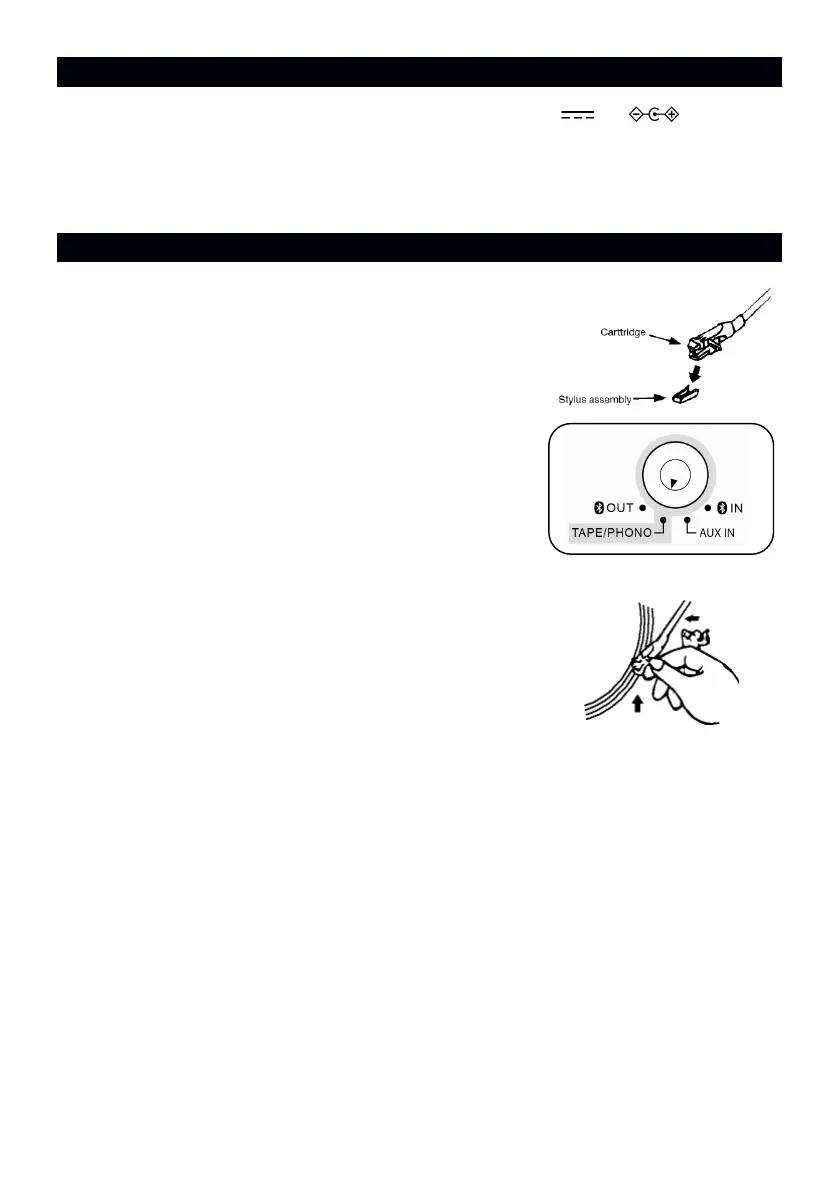

PHONO OPERATION
Please Note - Before Use
-
Remove the stylus protector.
- Be sure that the TONE ARM (#8) is unlocked and free to
move from the TONE ARM REST prior to operating. Lock the
TONE ARM (#8) in place with the TONE ARM LATCH (#5)
when not in use.
1. Rotate the FUNCTION SELECTOR (#12) to the TAPE/PHONO mode.
2. Rotate the POWER / VOLUME CONTROL (#13) clockwise to turn on
the unit. The POWER/FUNCTION INDICATOR (#15) will turn on red.
3. Raise the turntable dust cover.
4. Place a record on the TURNTABLE PLATTER (#1), use the 45 RPM
ADAPTER (#3) if required.
5. Set the 33/45/78 RPM SELECTOR (#7) to the proper position
depending on the record to be played.
6. Lift the TONE ARM (#8) from the tone arm rest by using the TONE ARM LIFT
LEVER (#4) and slowly move it over the record. The TURNTABLE
(#1) will start to rotate.
7. Place the TONE ARM (#8) to the desired position of the record.
8. Adjust the volume to the desired level.
9. At the end of record, the platter will automatically stop spinning. Lift the
TONE ARM (#8) from the record and return it to the tone arm rest.
10. To stop playing manually, lift the TONE ARM (#8) from the record and return
it to the tone arm rest.
NOTES:
• The PITCH CONTROL KNOB (#17) allows you to fine tune the playing speed of the record once the correct
speed (33/45/78 RPM) is chosen. Turn the Pitch Control Knob to slightly increase or decrease the speed of the
turntable if necessary.
• Certain types of records may have an auto-stop area outside the preset limit, so the turntable may stop before
the last track finishes. If this occurs, set the AUTO STOP ON/OFF SELECTOR (#6) to the “OFF” position. This
allows the record to play to the end, but please note that it will not stop automatically. You must manually raise
the TONE ARM (#8) and place it back in the tone arm rest and then turn off the power to stop the turntable from
spinning.
• To play your record on external Bluetooth speakers (not included), see the Bluetooth OUT Operation section.
