MPR2110 INSTALLATION
Preparation
Please read entire manual before installation.
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
Step 3:
Connect all wiring
harnesses and slide
the head unit into the
mounting sleeve until
it clicks into place.
Using the existing
brackets or the brackets
supplied with the
installation kit, mount
the brackets to the sides
of the head unit with the
screws supplied with the
head unit
.

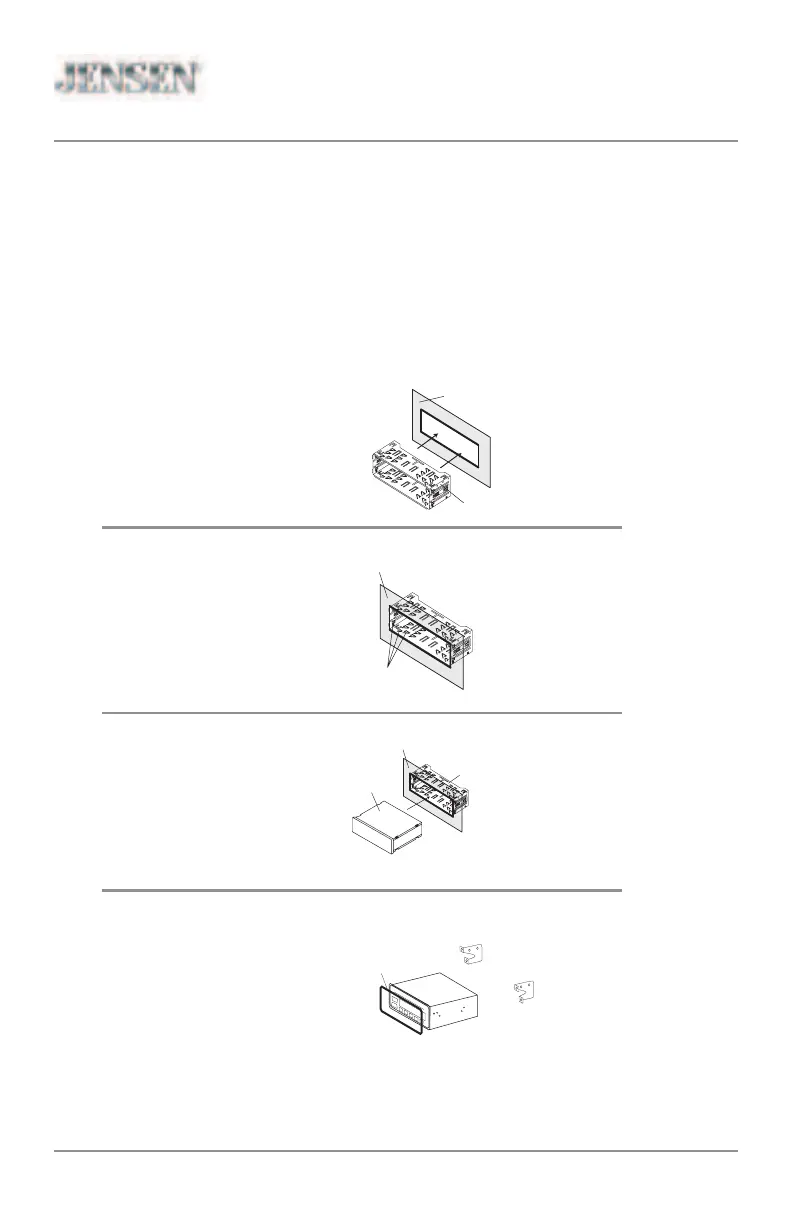

Mounting the Head Unit:
ISO mounting
Step 1:
Insert the mounting
sleeve into the
installation kit or
dashboard.
Step 2:
Bend multiple
mounting tabs around
the mounting sleeve
until the mounting
sleeve is secure.
Mounting the Head Unit:
T
ypical DIN mounting
Mounting Sleeve
Dashboard or
Installation Kit
Single DIN
Mounting Sleeve
Dashboard or Installation Kit
Mounting Tabs
Single DIN
New
Radio
Existing
Brackets
Decorative
Bezel
Single DIN
Mounting Sleeve
Dashboard or Installation Kit
Head Unit
Single DIN
