Jensen MPR2110 - Wiring Diagram

3
MPR2110 INSTALLATION

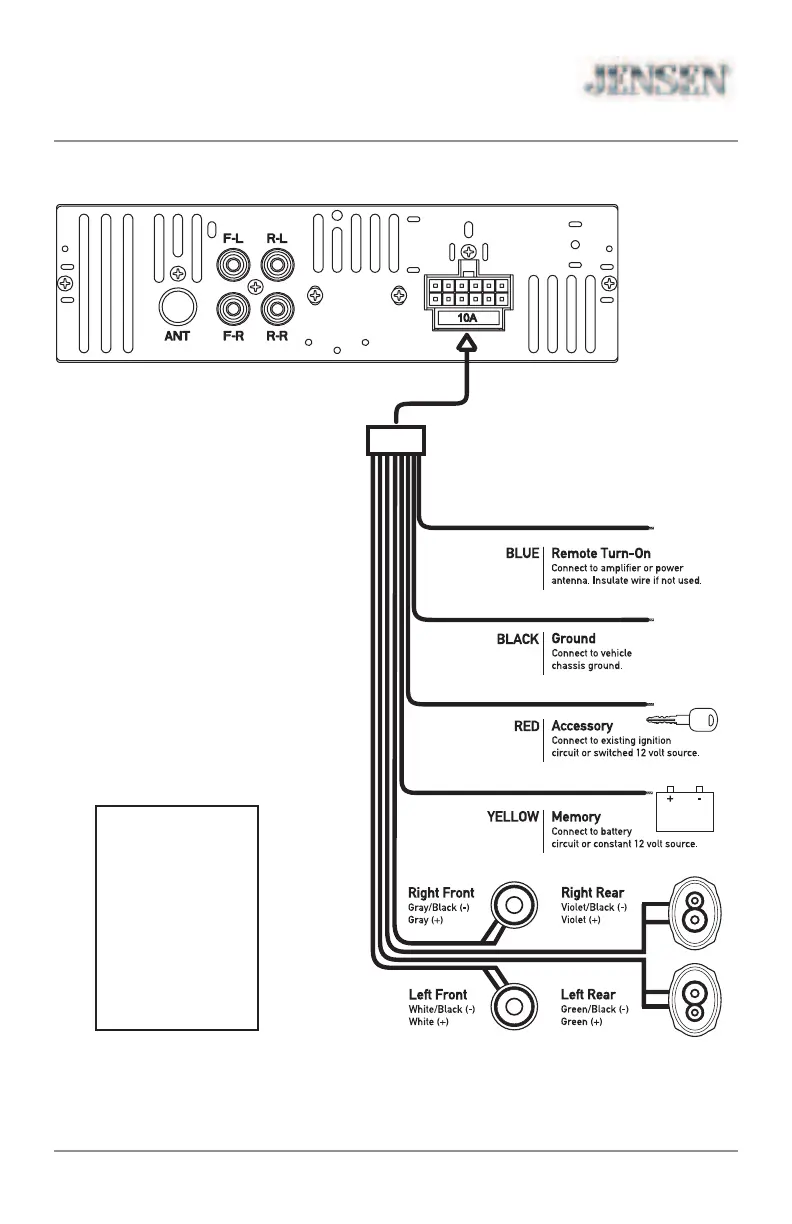

Wiring Diagram
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The unit uses
one 10 amp ATM fuse
located beside
the Heat Sink
