Jensen MPR420 - Wiring Diagram

3
MPR420 INSTALLATION

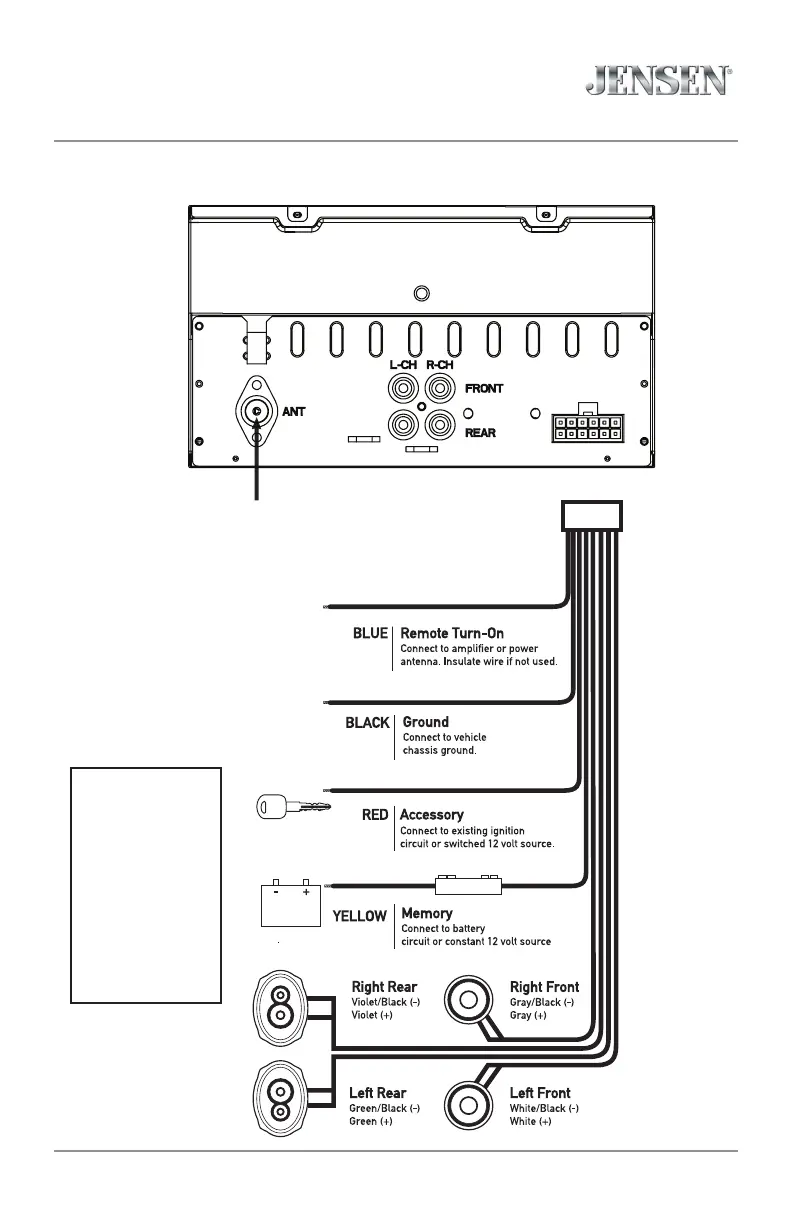

Wiring Diagram
FUSE
43#DPS
DJF#I xvh
Antenna
Connector
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The unit uses
one 10 amp ATC fuse
located beside the wiring
connector.
