Jensen Octane XDA92RB User Manual

XDA SERIES

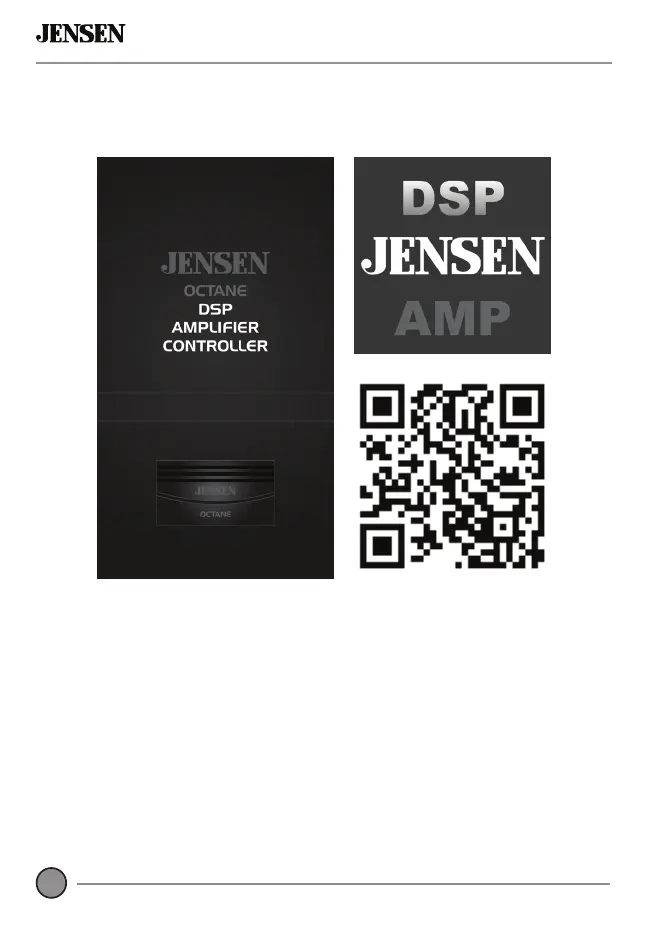

Scan the above QR Code to download the Jensen Octane DSP Amplifier
Controller app from the Apple App Store or Google Play Store onto your
smartphone or tablet.
Use the app to control features including: X-Over, EQ, RGB Light
Customization, Volume and other amp settings directly from your
smartphone or tablet via Bluetooth.
Note:
XDA amp series do not support audio streaming and hands free
calls via Bluetooth.
Controller App Download/Installation
9

Jensen Octane XDA92RB Specifications

General

Channels	4
RMS Power @ 4 Ohms	90W x 4
Total Harmonic Distortion (THD)	<0.1%
Frequency Response	10 Hz - 30 kHz
Input Sensitivity	200 mV - 6V
Crossover Type	Variable
Low-Pass Crossover Frequency	50 Hz - 250 Hz
High-Pass Crossover Frequency	50 Hz - 250 Hz
Fuse Rating	30A
Peak Power Output	500W
Signal to Noise Ratio	90dB
Bass Boost	0dB - 12dB @ 45Hz
