To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable
prior to installation.
NOTE: If the VM9213 is to be installed in a car equipped with an on-board drive or navigation
computer, do not disconnect the battery cable. If the cable is disconnected, the computer
memory may be lost. Under these conditions, use extra caution during installation to avoid
causing a short circuit.
NAV102: Before accessing any navigation features, you must purchase and install the navigation
module (NAV102). All installation and operating instructions will be included with the navigation
module.
BTM10: Before you can connect to a Bluetooth enabled device, you must purchase and install the
Jensen BTM10.
Rear Camera: Before accessing any camera features, you must purchase and install a rear
video camera.
Optional Equipment
Disconnecting the Battery
2c
2a
2b
1
2
3

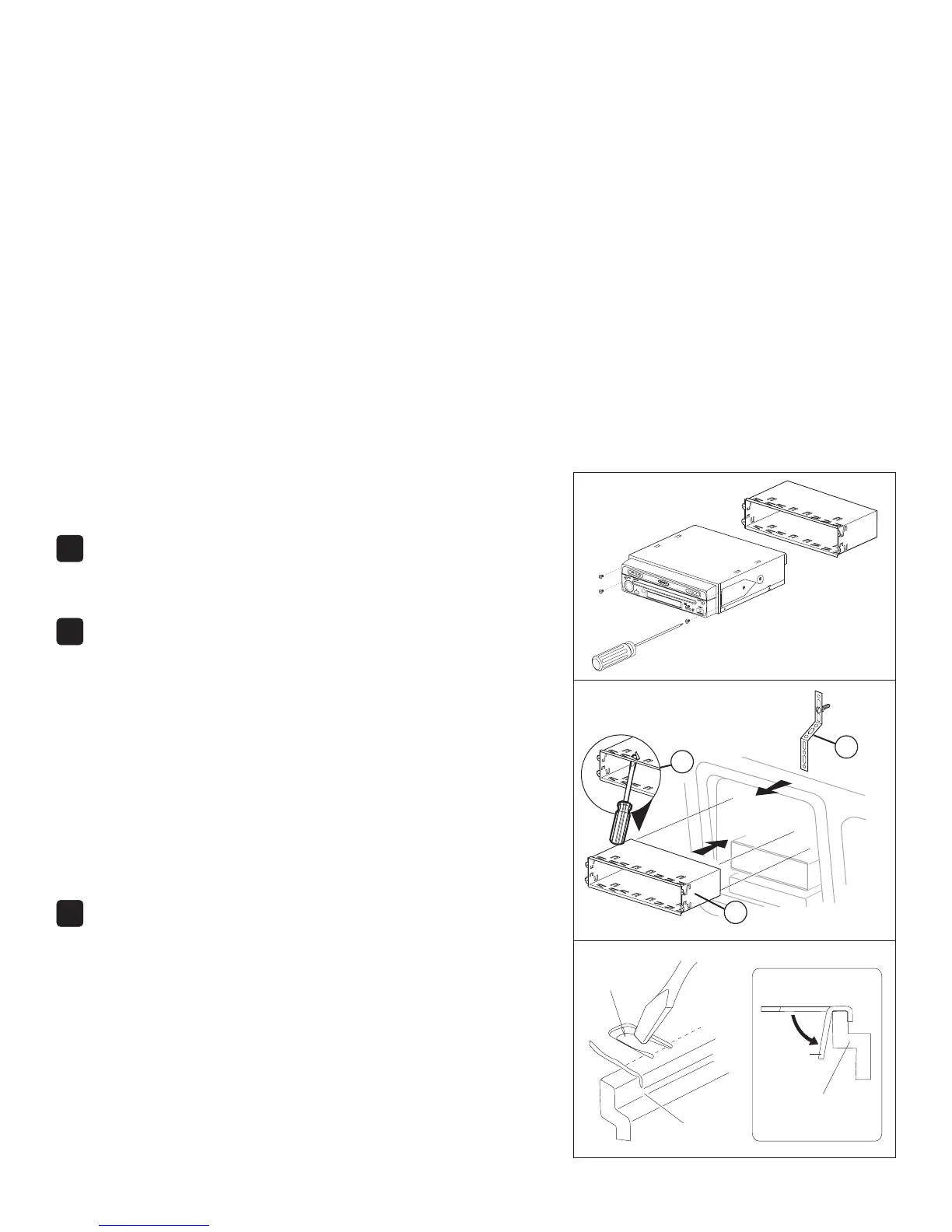

Pre-installation
Remove the four screws that attach the mounting
sleeve to the radio and remove the sleeve.
Install the mounting sleeve.
a. Install mounting sleeve into the dashboard or
optional adapter. Do not force the sleeve into the
opening or cause it to bend or bow.
b. Locate the series of bend-tabs along the top,
bottom and sides of the mounting sleeve. With the
sleeve fully inserted into the dashboard opening,
bend as many of the tabs outward as necessary
so that the sleeve is firmly secured to the
dashboard.
c. Install support strap to make the unit more stable.
Place the radio in front of the dashboard opening so
the wiring can be brought through the mounting
sleeve.
CAUTION! Be careful not to damage the car
wiring.
TAB
TAB
DASHBOARD
DASHBOARD
2
