Jensen VM9213 Installation Guide

Auto antenna control (connect to antenna control lead & power supply of antenna amplifier)
External power amplifier control
BLUE
BLUE/WHITE
WHITE/BLACK - GREEN/BLACK - WHITE + GREEN + PURPLE + PURPLE/BLACK - GREY/BLACK - GREY +
FRONT L+
FRONT L-
FRONT R+
FRONT R-
REAR R+
REAR R-
REAR L+
REAR L-
Car
Mute (leave open if not connected)
BROWN
Car Phone
FRONT L
FRONT R
REAR R
REAR L
MUTE
P.CONT
ANT.CONT
ACC
BLACK
YELLOW
RED
FUSE (15A)
Battery
Ignition Switch
BATTERY
BATTERY +
Ground
BATT
ACC
GND
WHITE
YELLOW
RED
External AV System
Rear Video
Rear View
Video Camera
VIDEO OUT
CAMERA
YELLOW
YELLOW
REVERSE
+
REVERSE +
GREEN/WHITE
Antenna
SWC
(Requires
Adapter, Sold Separately)
PAC SWI-PS Interface
AU
X IN 2
Antenna Jack
PINK
PARKING BRAKE
PRK SW
SUB.W
REAR R
FRONT L
FRONT R
REAR L
Harness Cord
External
Power
Amplifier
BT BUS
NAV BUS

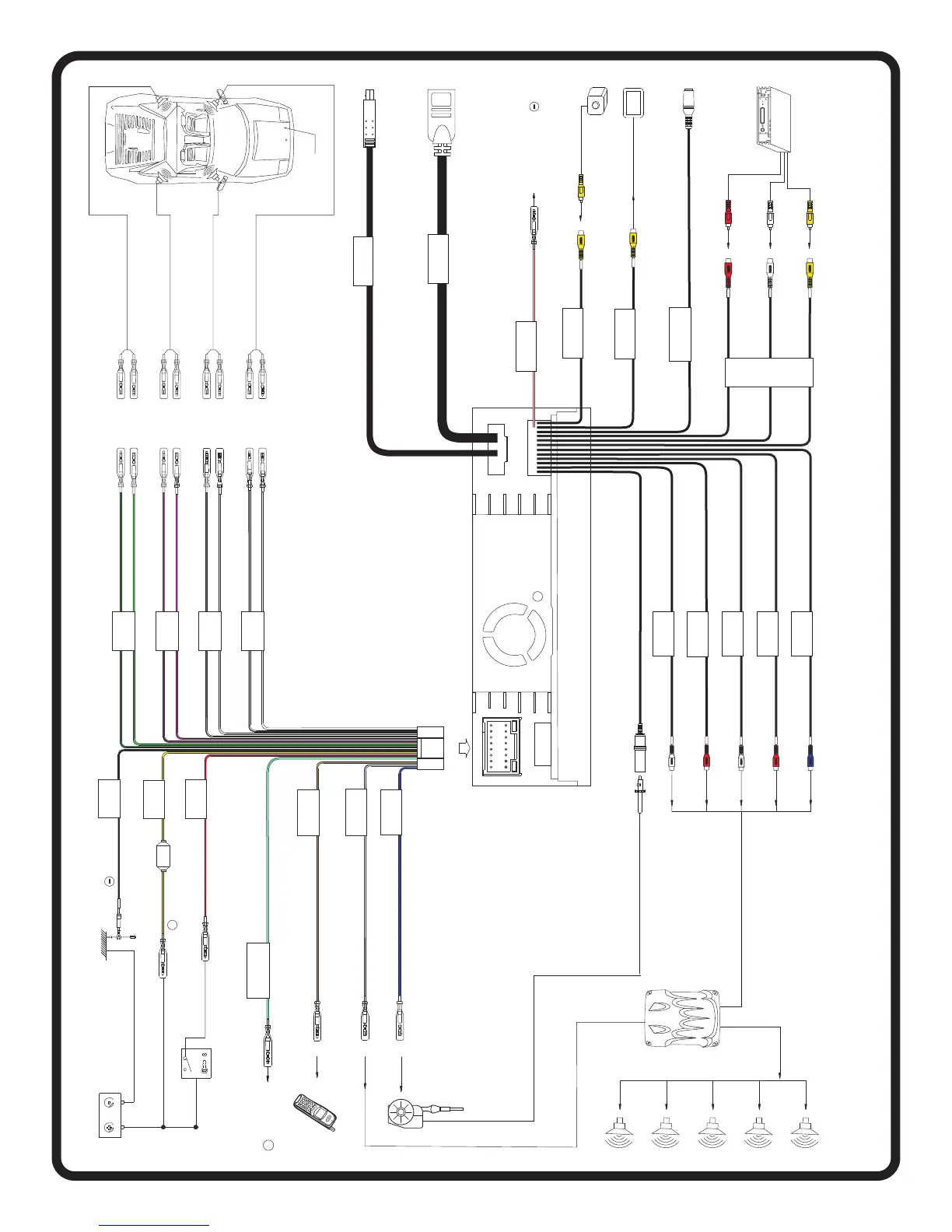

Wiring Diagram
