Jensen VX4022A - Page 3

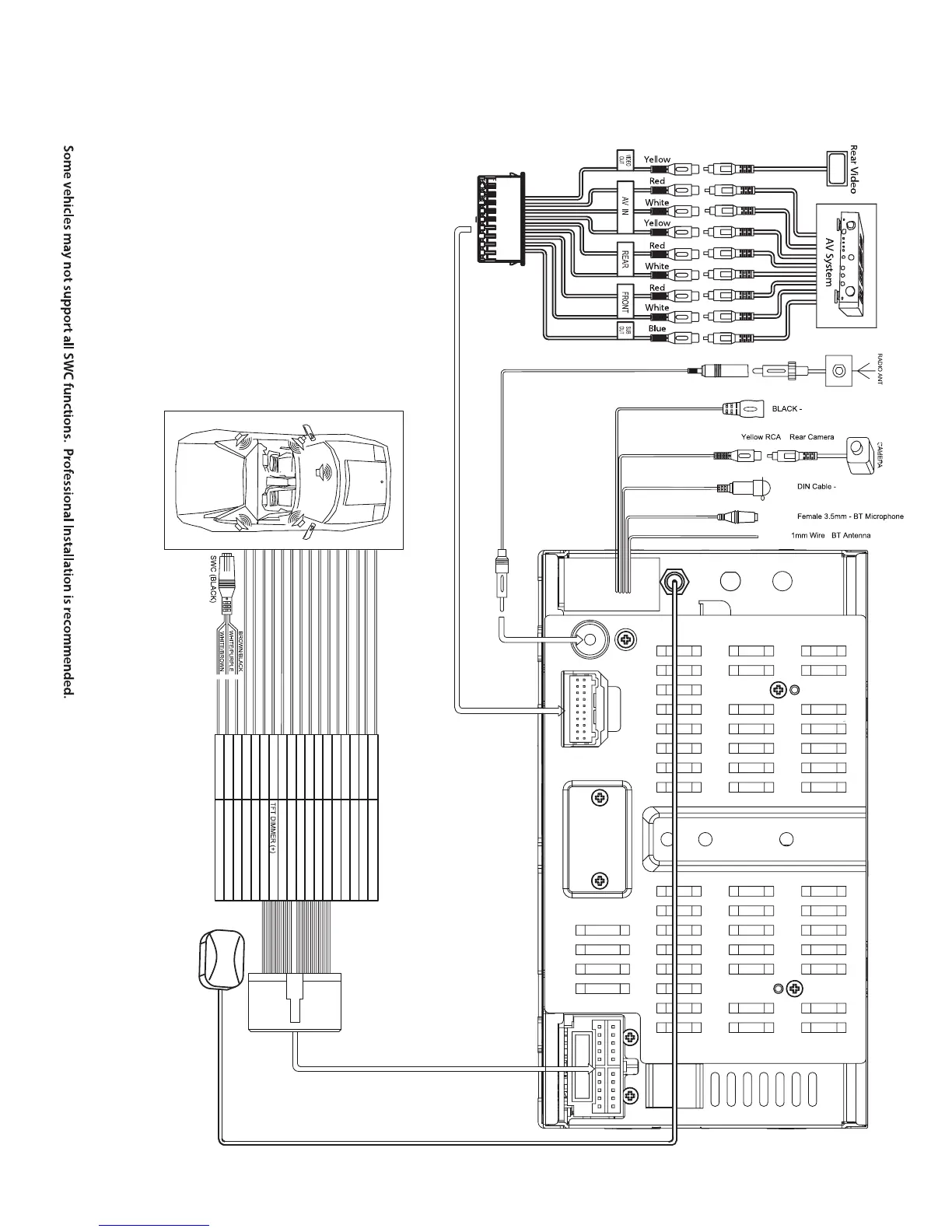

Wiring Diagram
CAUTION! IMPOR
TANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully,
or have the installation handled by an experienced technician.
2
Black SiriusXM
-
Black
Black -
RIGHT FRONT
+)
RIGHT FRONT SPEAKER (-) RIGHT REAR SPEAKER (+)
RIGHT REAR SPEAKER (-) LEFT REAR SPEAKER (+) LEFT REAR SPEAKER (-) BATTERY 12V (+) GROUND (-) ACC / IGNITION (+)
POWER ANT & AMP (+) BRAKE (-) REVERSE (+) LEFT FRONT SPEAKER (-PEAKER (-)
SPEAKER (
)
LEFT FRONT SPEAKER (+)
SPEAKER (-)
SPEAKER (+)SPEAKER (+)
WHITE WHITE/BLACK GRAY GRAY/BLACK PURPLE PURPLE/BLACK GREEN GREEN/BLACK YELLOW BLACK RED ORANGE BLUE PINK GREEN/WHITE
SWC A SWC B
WHITE/PURPLE WHITE/BROWN BROWN/BLACK SWC GND
GPS Antenna (VX7022 Only)
HDMI
