Jensen VX7023 - Steering Wheel Control (SWC) Compatibility; SWC Installation and Programming

67
VX7023
36
1. Volume
Up (+)
4.
Seek /
Track +
7. Preset (+) 10. BT Send
2. Volume
Down (-)
5. 8. Preset (-) 11. BT End
3. Mute 6. Source Band9.
12
.
PT
T
SWC Ready
The built-in SWC Interface is compatible with PAC steering wheel control
modules. The PAC SWI-RC is recommended.
A third-party adapter must be used in order for the VX7023 to be compatible
with any steering wheel controls.
Note:
Not all OE steering wheel functions may be supported by the VX7023. PTT -
Will activate Siri / Google Voice if mobile phone supports the feature. Not
compatible with all phones/vehicles.

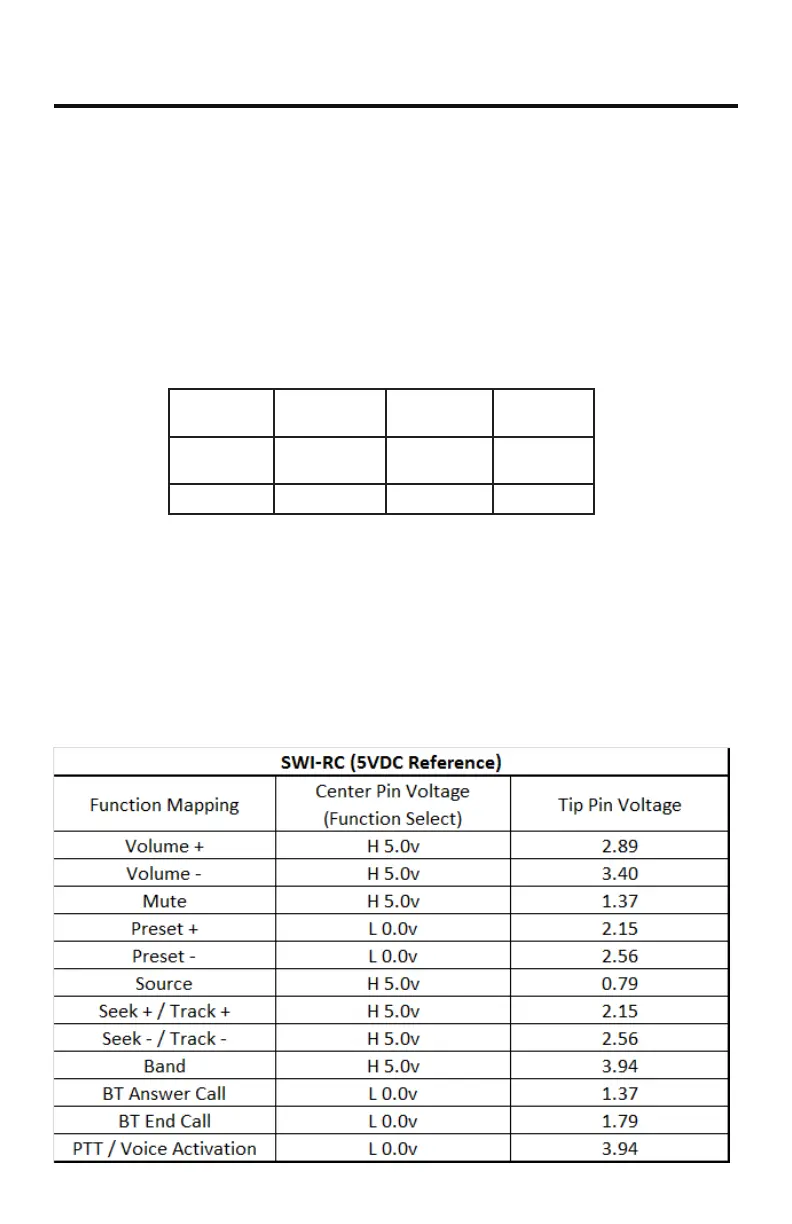

The following controls are available for most vehicles:
PAC SWI-RC Installation Hints
1.. Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Other/Sony".
2..
Programming - Use the Pioneer/Sony/Other radio function mapping order for
Jensen branded head units.
3.. When programming the SWI-RC, if a function is not supported (or not desired),
then the function MUST be skipped as per the PAC SWI-RC instructions.
4..
The SWC function MUST be programmed in the correct order per the PAC
SWI-RC radio function mapping order instructions.
Seek /
Track -
