4
®
XA2100

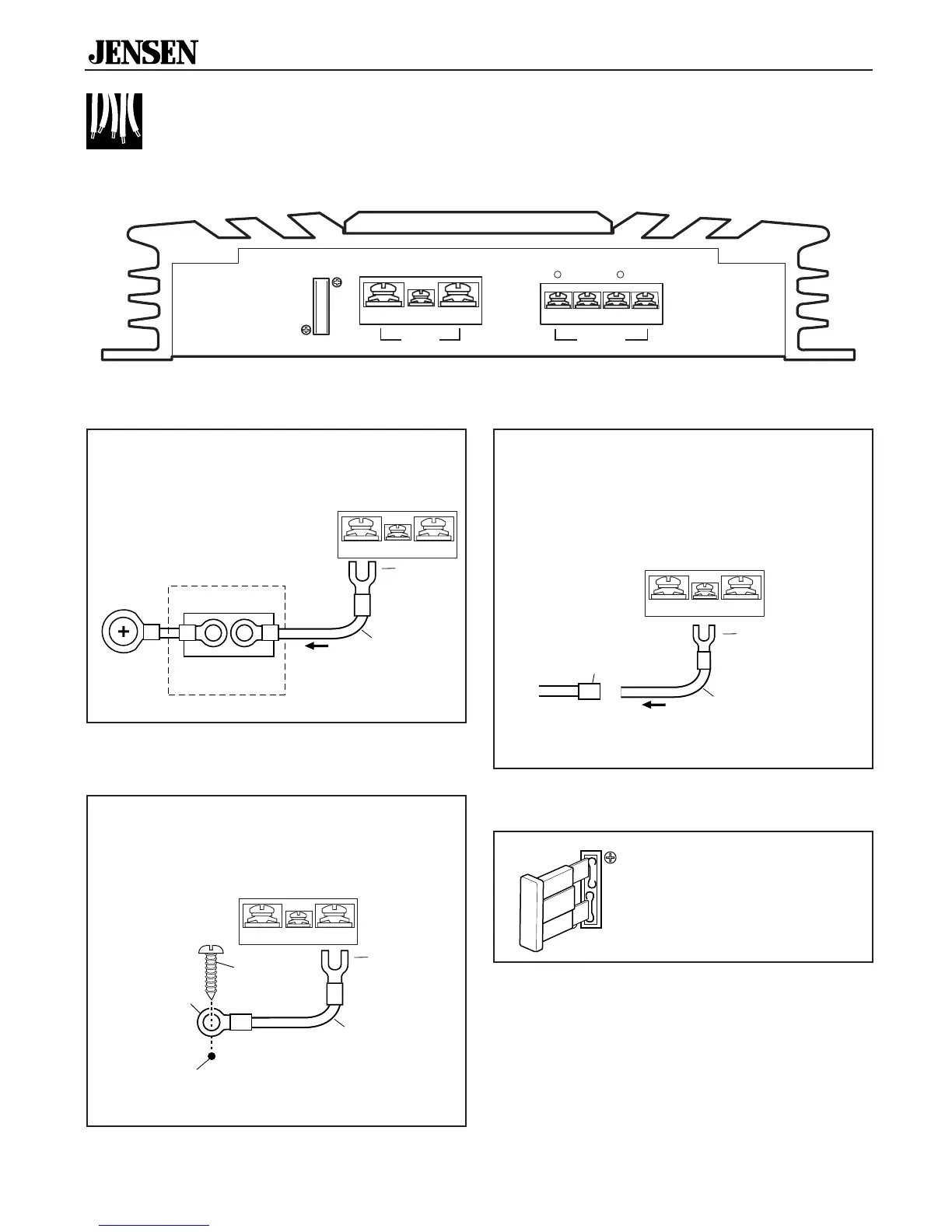

Wiring
Power and Outputs
Remote Terminal (RMT +12V)
Power Terminal (BATT +12V)
Connect directly to the vehicle battery+
terminal with 8 gauge wire (minimum).
Ground Terminal (GND)
Connect to a good chassis ground. The ground
connection should be to clean, unpainted metal
to provide a good electrical connection.
Connect the radio power antenna lead from
the receiver to the amplifier REMOTE terminal.
This turns the amplifier on whenever the re-
ceiver is turned on. If a power antenna lead is
not available, connect this wire to the radio or
accessory fuse.
Use only one 15 amp
blade-type fuse.
Fuses
15A
FUSE
15A
FUSE
POWER
RMT GND+ 12V
SPEAKER
L + L – R – R +
Spade
Connector
8 Gauge
Wire
To Battery+
Terminal
30 amp Fuse
or Circuit Breaker
Battery
Terminal
Adapter
Install as close
to the battery
as possible
Not Supplied
RMT GND+ 12V
Ring
Connector
Drill 1/8" hole
in chassis
sheet metal
Sheet Metal
Screw
(supplied)
Spade
Connector
8 Gauge
Wire
RMT GND+ 12V
To Receiver
Power
Antenna Lead
Butt
Connector
(not supplied)
Spade
Connector
8 Gauge
Wire
RMT GND+ 12V
5310_Eamp.p65 4/10/99, 7:20 PM4
