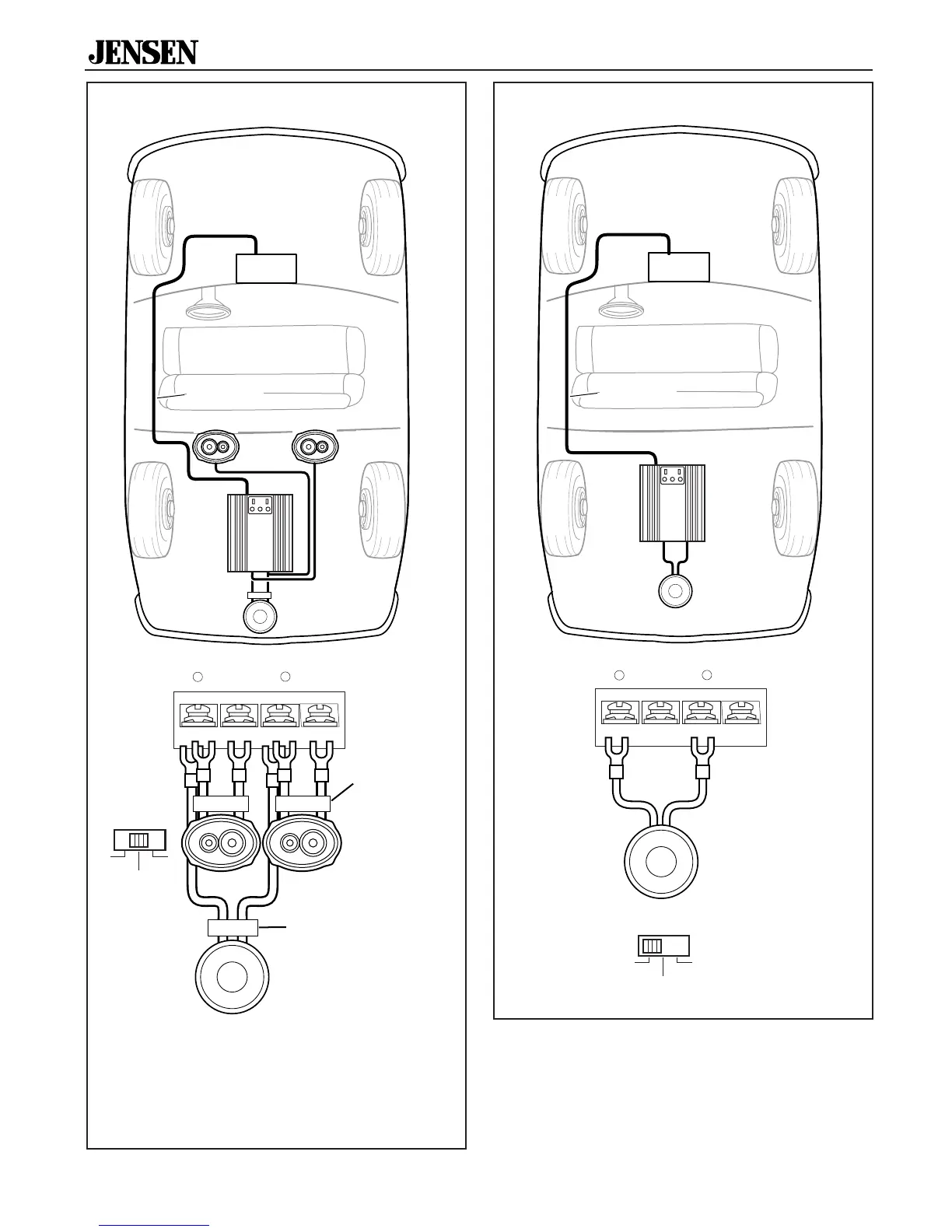

Jensen XA2150 - Advanced Speaker Wiring; 2 Speakers + Subwoofer (Tri-mode); Bridged Subwoofer

8
®
XA2150
Bridged Subwoofer2 Speakers + Subwoofer
Important
When running a subwoofer and two full-range
speakers together (Tri-mode operation), high
and low pass filters must be used. Failure to
install these filters will damage your amp and/
or speakers.
RCA Cables
2/4Ω
4Ω
2/4Ω
L + L – R – R +
Low Pass
Filter
(available at
most car stereo
installation
stores)
High Pass
Filters
LPF
FULL
HPF
X-OVER
4Ω
RCA Cables
L + L – R – R +
4Ω
minimum
LPF
FULL
HPF
X-OVER
