Section II: Operation
Page 37
5-376-000086
REV. 4 - 07/10
WRECKER BOOM OPERATION
SINGLE LINE BOOM - PLANETARY GEAR WINCH
The MPL40 wrecker boom is an extremely effective tool in recovery or retrieval
prior to lifting and towing. To operate the wrecker boom effectively, care and
thought must be given.
Boom Rating: (Extended) .....................................6,000 lbs.
(Retracted) .................................. 16,000 lbs.
Winch Rating: (Warn Planetary Gear) ..................9,000 lbs.
Wire Rope Working Limit: ....................................4,100 lbs.
Wire Rope Construction: ................ 6 x 25 EIPS RRL IWRC
Wire Rope Size:.................................... 3/8 inch x 100 Feet
*All ratings comply with SAE J2512 and SAE J706 Recommended Practice
WARNING:
Do not exceed the working limit of the wire rope. Use snatch blocks
and multiple lines to reduce the load on the wire rope.

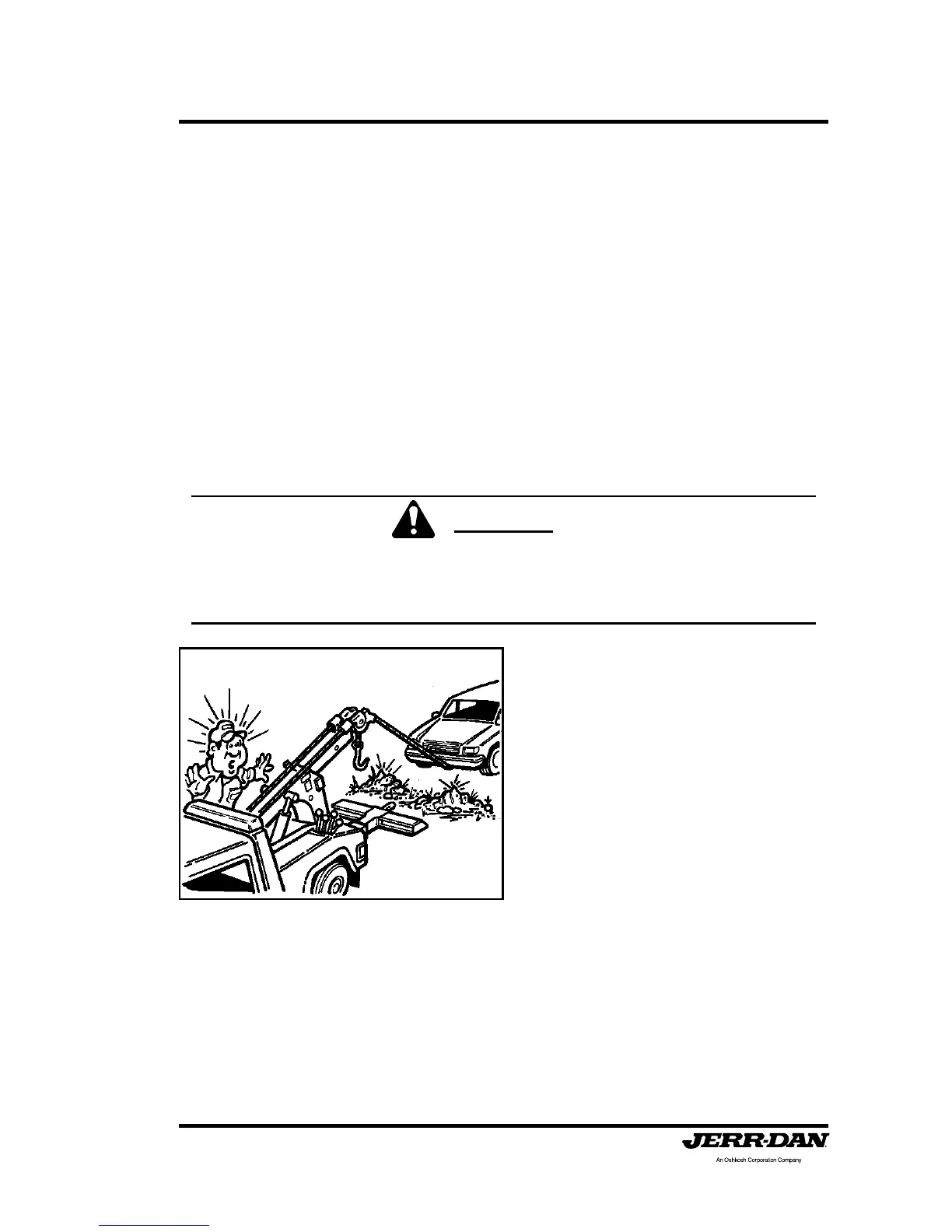

1. Check the direction you wish the
work to travel, being sure there
are no major obstacles in the
way.
