Section II: Operation
Page 65
5-376-000086
REV
. 4 - 07/10
DOLL
Y
STORAGE OPERA
TION
(OPTIONAL)

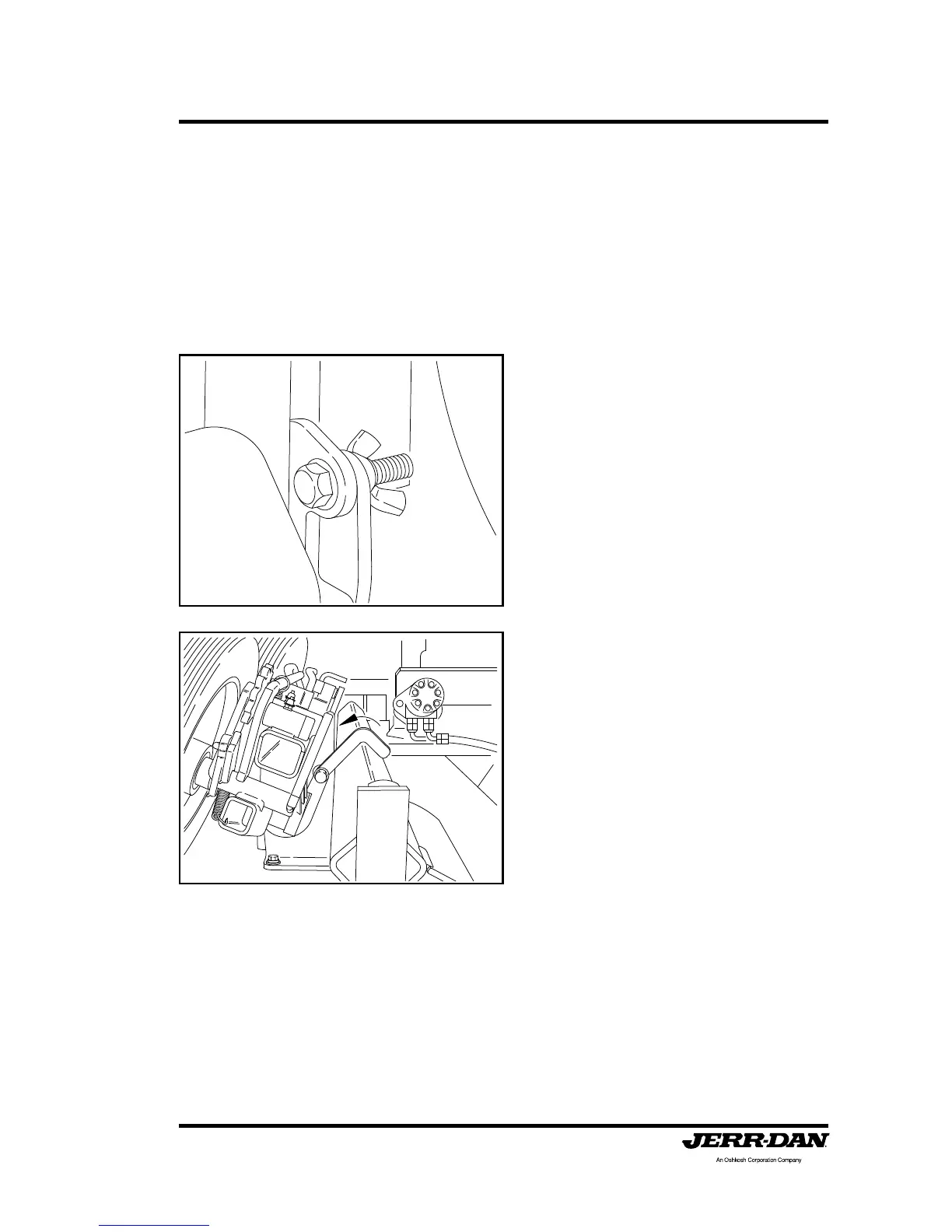

If your MPL40 is equipped with a towing dolly
, follow these step
s for
dolly removal and storage:
1.
Remove the retaining bolts and
wing nuts or pad locks, which
ever your unit may have.
2.
Open dolly the retaining latch by
pulling the top toward you.
72
