Section II: Operation
Page 44
5-376-000086
REV. 4 - 07/10

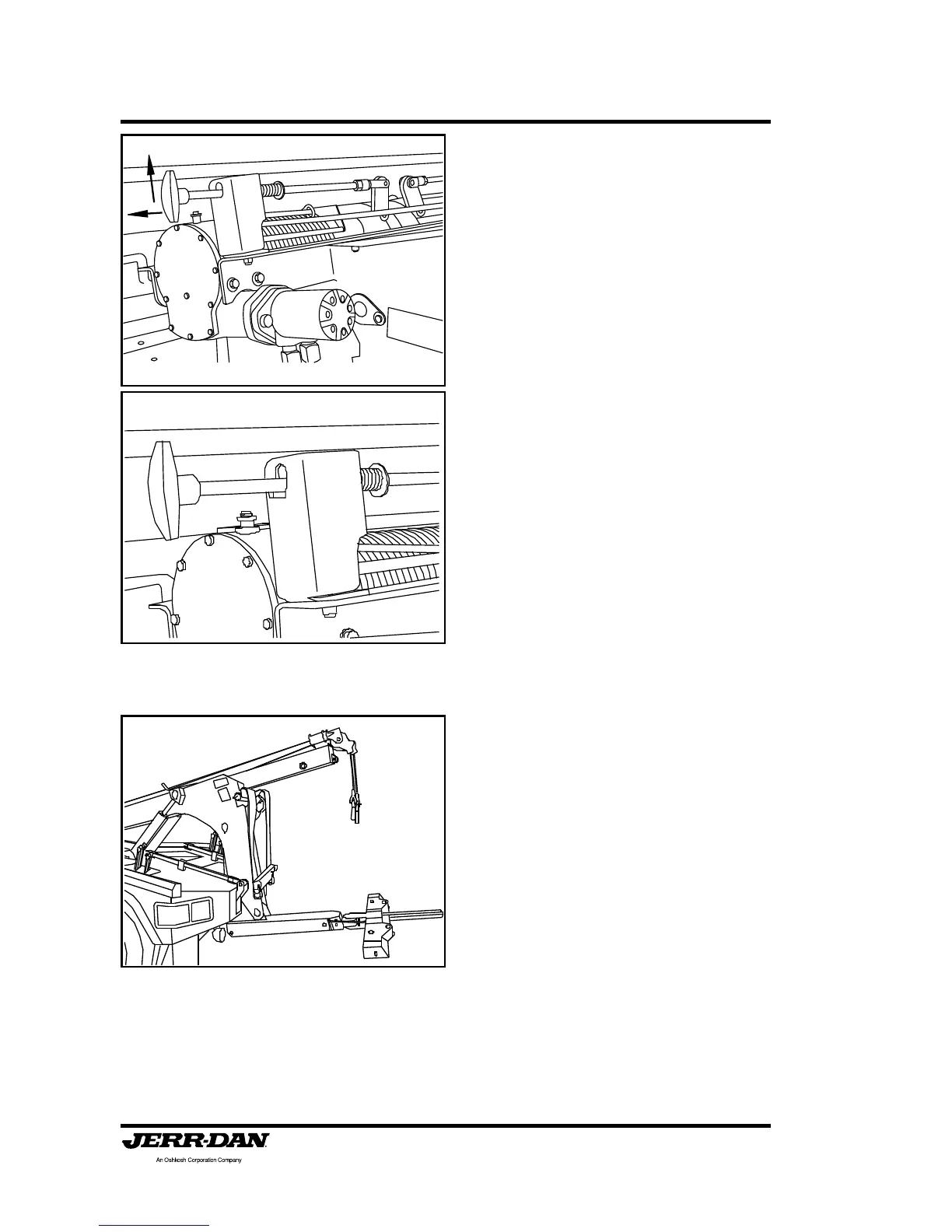

7. Set both boom winches into “free
spool” using the disengagement
levers. Raise, lift, and pull out on
the free-spool lever handle. Lower
the free-spool lever handle
capturing the lever stop bar on the
outside of the bracket locking the
winch in free-spool. Never pull
this handle while the wire
rope is under load! Moving the
boom head with the wire rope
locked can result in damage to
both the wire ropes and the boom.
Be sure both winches are free
spooling. This allows the wire
rope to be pulled directly off the
drum to the work. Unwind
enough wire rope to make the
hook-up being sure that a
minimum of at least five (5) wraps
of wire rope remains on the
drums.
8. Position the boom head by using
the boom up and down control
lever and the boom in and out
lever.
