Section II: Operation
Page 69
5-376-000086
REV
. 4 - 07/10
1
4
.

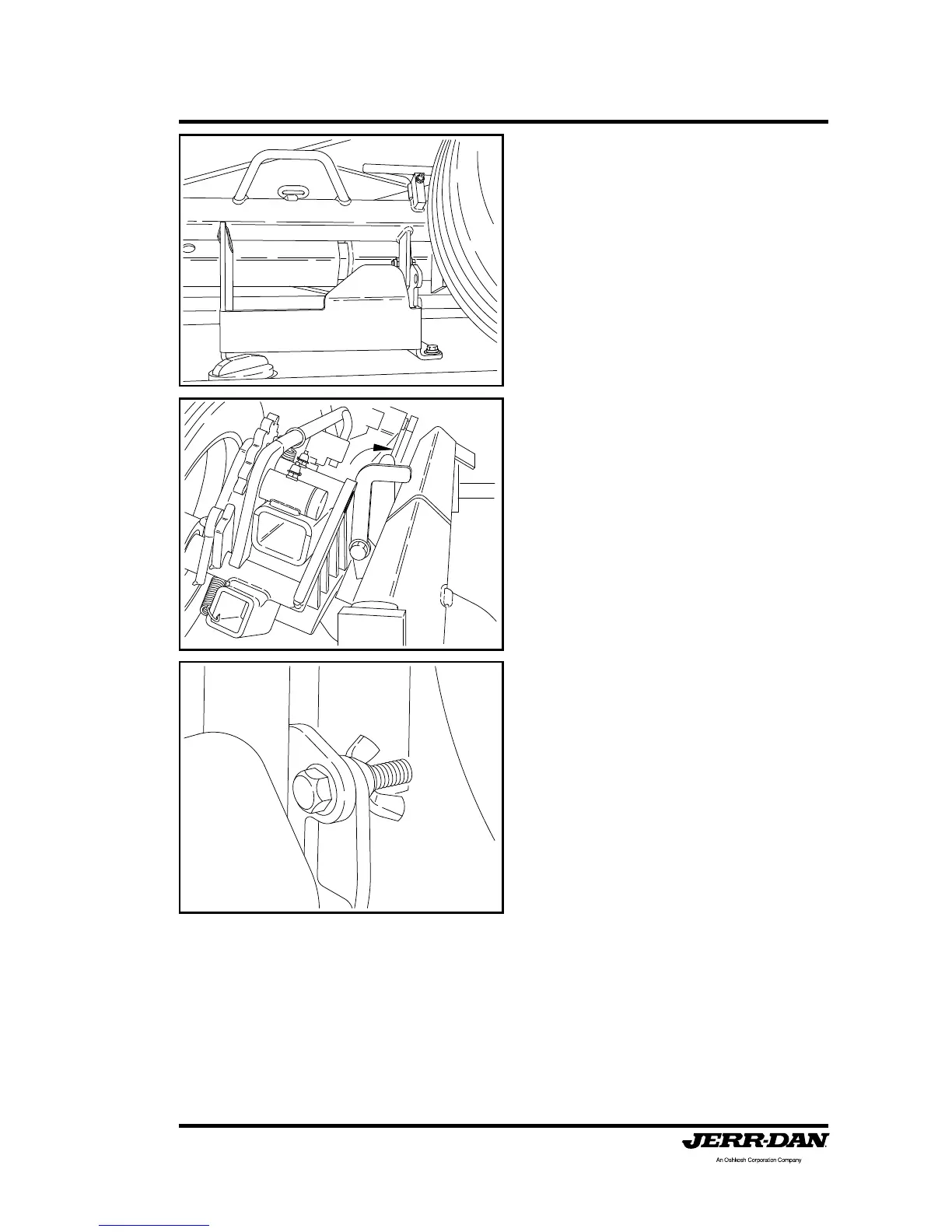

The tab on the storage bracket
should be placed through the dolly
pocket of the dolly wheel
assembly
.
1
5.
Close the dolly retaining latch by
pushing the top away from you.
1
6
.
Install the retaining bolts and
wing nuts or pad locks.
76
78
