Jesco MEMDOS E - Page 34

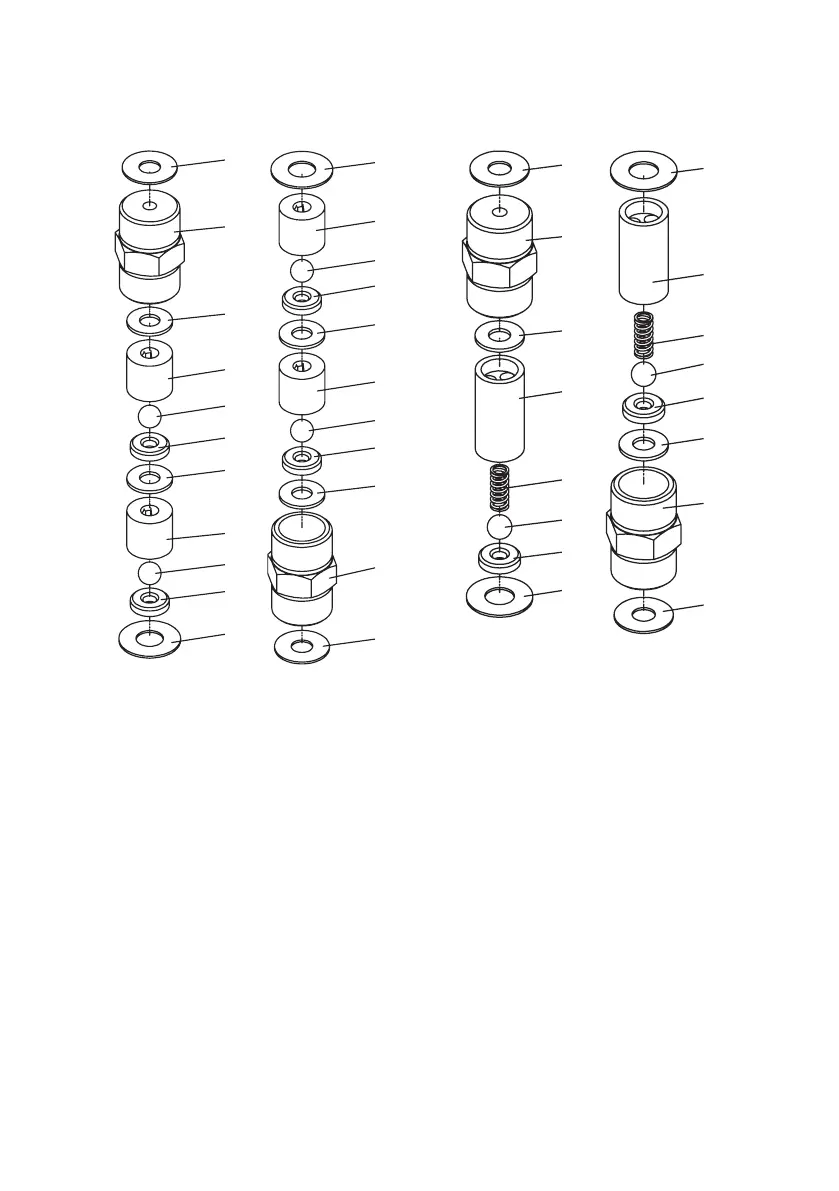

Valves DN 6, MEMDOS E/DX 50..0.76
Double-ball valves Spring-loaded valves
Discharge valve Suction valve Discharge valve Suction valve
c
d
e
f
b
a
d
e
f
c
g
d
a
b
c
f
e
d
c
f
e
g
c
h
e
f
b
a
g
g
d
a
b
e
c
f
d
h
a * Flat gasket
b Valve body
c * Flat gasket
d Ball guide
e * Valve ball
f * Valve seat
g * Flat gasket
h * Pressure spring
* included in the spare parts set.
34 | Operation & Maintenance Instructions | Maintenance
