JessEm Tool MITE-R-SLIDE II User Manual

STEP A:
With the 1/8" hex key provided loosen the 1/4" stainless
steel nylon tipped set screw (Part #19) See Figure 32.
STEP B:
With the 9/64" hex key provided, snug up the Adjustable
roller pivot cap (Part #12). Moving the roller assembly
(Part #18) back and forth within the track, you should be
able to feel any play disappearing as you snug this up.
See Figure 33.
STEP C:
Snug up the 1/4" stainless steel nylon tipped set
screw ( Part #19). See Figure #34. Do not
overtighten this set screw.
STEP D:
Repeat Steps A, B and C to adjust the rollers on the right side.
12

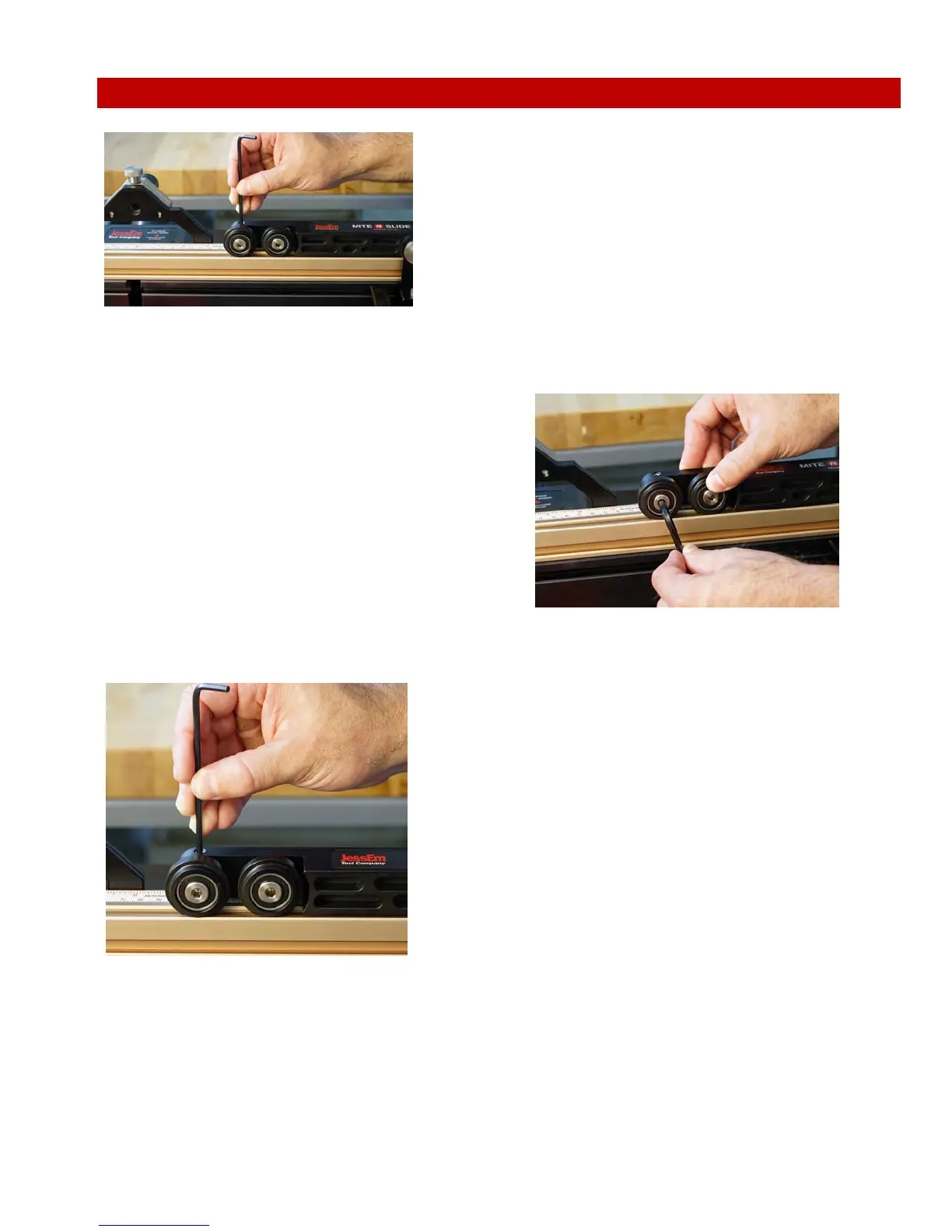

FIGURE 32
FIGURE 33
FIGURE 34
ADJUSTING FIT OF ROLLERS IN TRACKCK
