JessEm Tool MITE-R-SLIDE II - Installing the Guard Assembly

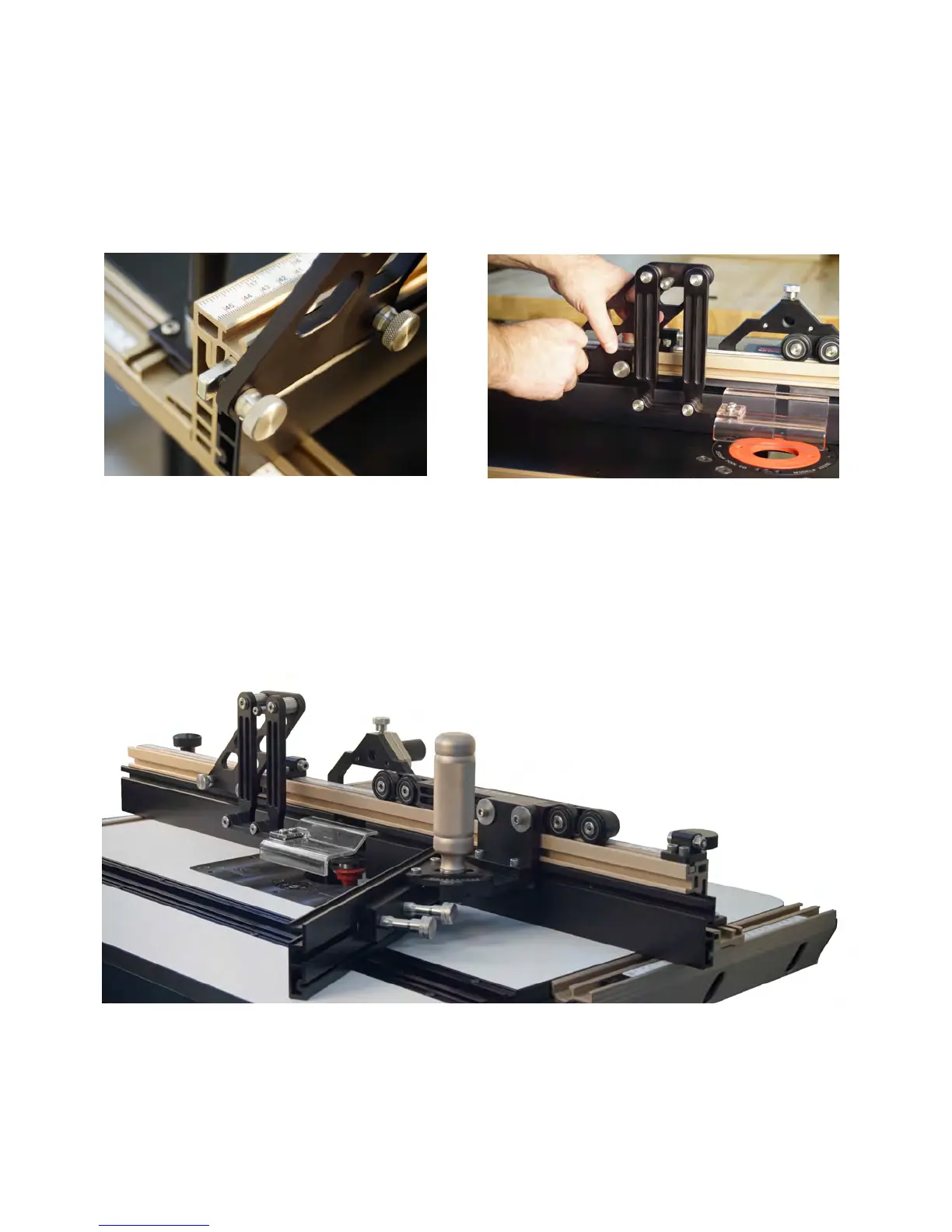

YOUR MITE-R-SLIDE II SHOULD BE FULLY ASSEMBLED. SEE FIGURE 18.
FIGURE 18
With the Guard assembly and guard you put together in Step 4, slide the t-nut attached to the guard
assembly into the top t-slot on the fence. See Figure 16. Slide the guard mount over until the guard is
centered over the router bit opening. Tighten the guard assembly knobs to secure the guard in place. See
Figure 17.
STEP 14:
FIGURE 16
FIGURE 17
