Jet DC-1200-M - Assembly

Formobility,theunitisequippedwith4wheels.
Youmustobservethemachine´scentreofgravity,otherwise
themachinemaytip!

5.2Assembly
Ifyounoticetransportdamagewhileunpacking,notifyyour
supplierimmediately.Donotoperatetheunit!
Disposeofthepackinginanenvironmentallyfriendlymanner.
Attention:
Thedustcollectormustbedisconnectedfromthepower
sourceduringassembly.
Base:

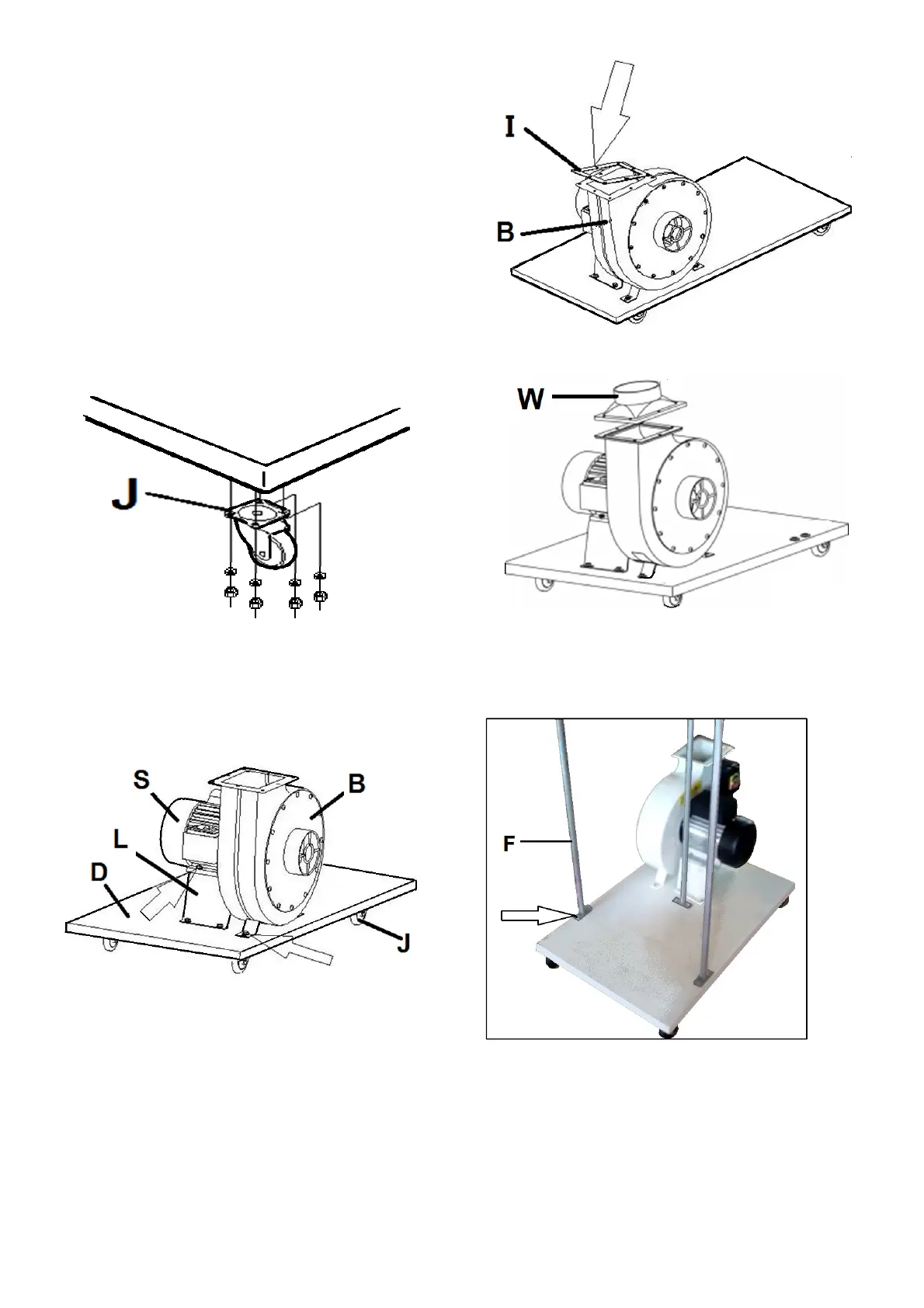

Installfourcasters(J,Fig3)totheundersideofthebase(D)
withbolts,nutsandwashers.

Fig3
Motorandfanassembly:
Attachthemotorbase(L,Fig4)andthemotorandfan
assembly(S,B)tothebase(D),usingscrewsandwashers
provided(seeFig4).

Fig4
Outletconnectorassembly:
Installthegasket(I,Fig5)andmounttheoutletconnector(W,
Fig6)tothecollectorbody(B)withscrewsandwashers
provided(Fig5&Fig6).

Fig5

Fig6
CollectorHousing:
Attach3supportrods(F,Fig7)tothebaseusing6hexcap
screwsandwashers.

Fig7
Installthehousing(C,Fig8)with6hexcapscrews.
Attachthefilterbaghanger(E)…seeFig8.
