Jet DC-1200-M - Dust Collection



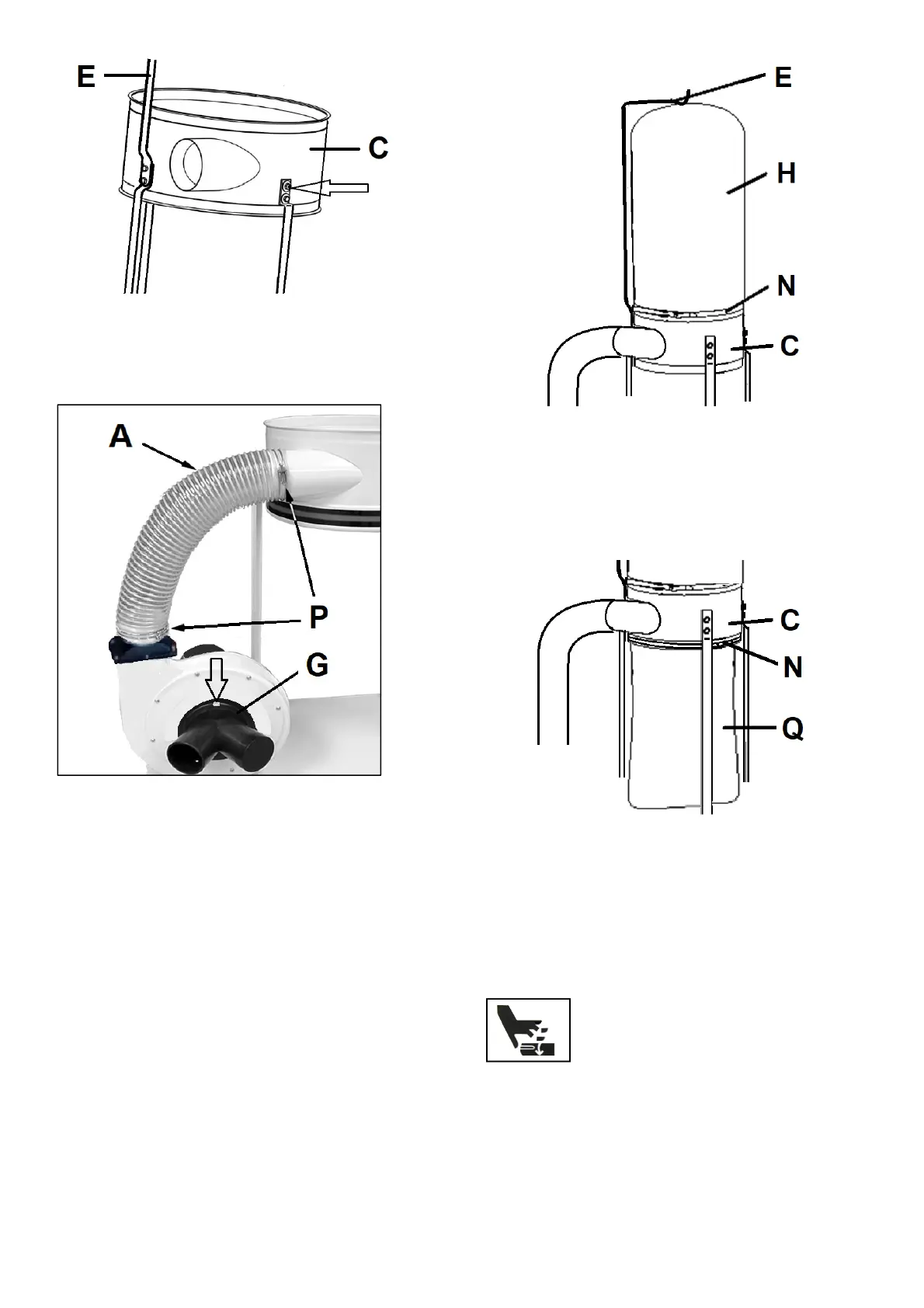

Fig8
HoseAssembly:
Attachthehose(A,Fig9)with2providedhoseclamps(P).
Attachtheinlet(G)withscrewM5.

Fig9
Installthefilterbag:
Attachtheloopofthefilterbagtothefilterbaghanger(E,Fig
10).
Placethefilterbag(H)overthehousing(C).
Installthefilterbagwithretainerstrap(N).


Fig10
Note:makesurethebagisfastenedsecurelysothatnodust
willescapeduringoperation.
Installthecollectionbag:
Placeacollectionbag(Q,Fig11)overthehousing(C).
Installthecollectionbagwithretainerstrap(N).

Fig11
Note:makesurethebagisfastenedsecurelysothatnodust
willescapeduringoperation.

5.3Dustconnection
Beforeoperation,theunitmustbeconnectedtohosesand
ductwork.

Onlyelectricallyconductiveandfireresistantflexiblehoses
maybeused.
Attachthehose:
Useahoseclamp(P,Fig12)toconnectthehose(O)tothe
intakeport.
