3. Apron - oil must be up to indicator mark in

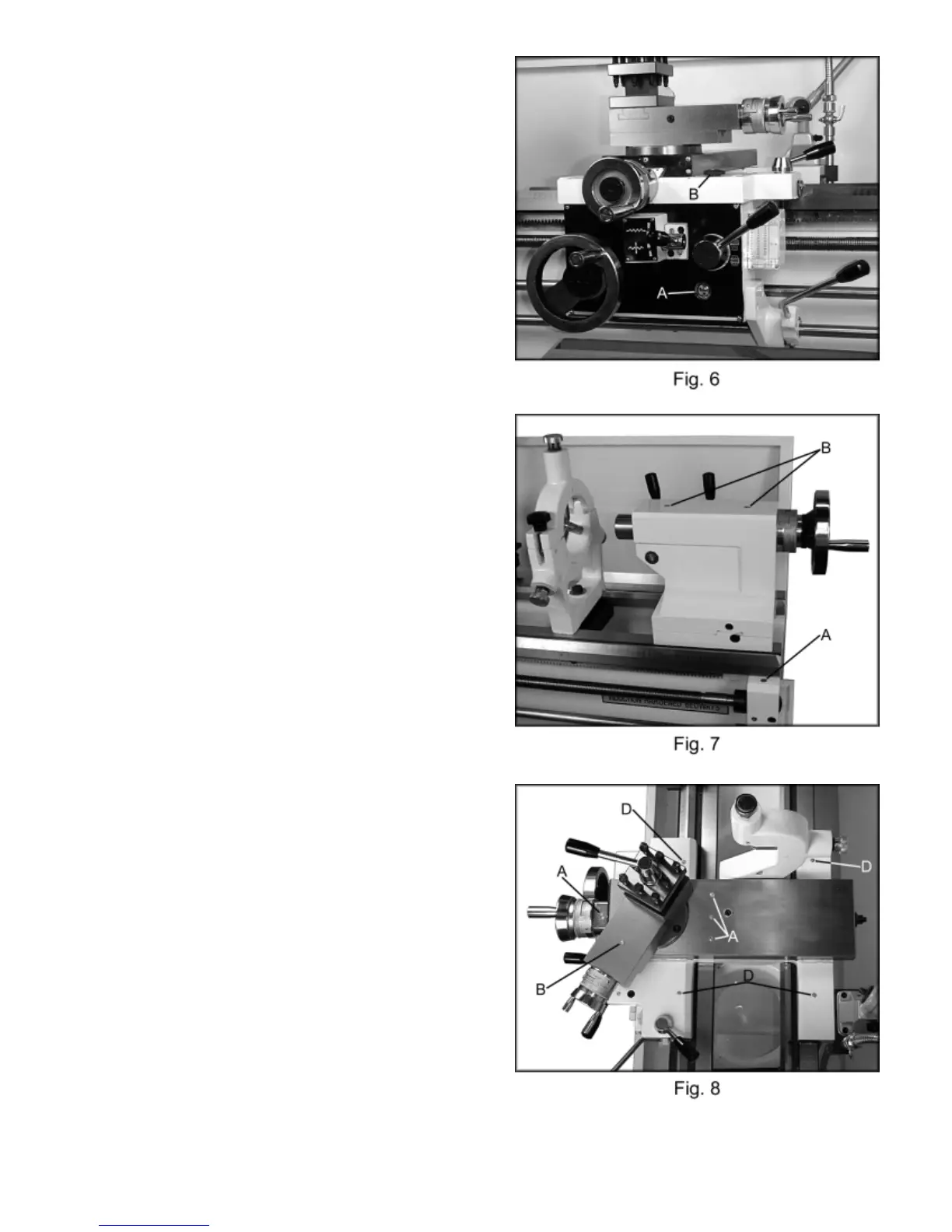

oil sight glass (A, Fig. 6). Top off with
Mobil DTE Oil Heavy Medium. Remove
oil cap (B, Fig. 6) on top of apron to fill. To
drain, remove drain plug on bottom of
apron. Drain oil completely and refill after
the first month of operation. Then, change
oil in the apron annually.
4. Leadscrew Feed Rod - lubricate ball oiler
(A, Fig. 7) on leadscrew/feed rod bracket
with Mobil DTE Oil Heavy Medium once
daily.
5. Tailstock - lubricate two ball oilers
(B, Fig. 7) on tailstock with Mobil DTE
Oil Heavy Medium once daily.
6. Cross Slide - lubricate four ball oilers
(A, Fig. 8) with Mobil DTE Oil Heavy
Medium once daily.
7. Compound Rest - lubricate one ball oiler
(B, Fig. 8) with Mobil DTE Oil Heavy
Medium once daily.
8. Carriage - lubricate four ball oilers
(D, Fig. 8) with Mobil DTE Oil Heavy
Medium once daily.
