Unpacking
Open shipping container and check for shipping
damage. Report any damage immediately to
your distributor and shipping agent. Do not
discard any shipping material until the Lathe is
assembled and running properly.
Compare the contents of your container with the
following parts list to make sure all parts are
intact. Missing parts, if any, should be reported
to your distributor. Read the instruction manual
thoroughly for assembly, maintenance and
safety instructions.
Contents of the Shipping Container
1 Lathe
1 Steady Rest (mounted on Lathe)
1 Follow Rest (mounted on Lathe)
1 10” Three Jaw Chuck (mounted on Lathe)
1 12” Four Jaw Chuck
1 Face Plate (12” Face Plate for 14” & 16”
lathes; 16” Face Plate for 18” & 22” lathes)
1 Tool Box containing:
1 Open End Wrench Set
1 Hex Wrench Set
1 Morse Reduction Sleeve
1 Center
6 Leveling Bolts with Hex Nuts
6 Leveling Pads
1 Flat Blade Screwdriver
1 Cross Point Screwdriver
1 Chuck Wrench
1 Tool Post Wrench
1 Cam Wrench
1 Adjustable Wrench
1 Round Nut Wrench
1 Oil Gun
1 Cross Feed Handle (not shown)
2 Shear Pins (not shown)
1 Gap Bridge Pin Driver
1 Live Center (MT4 for 14” & 16” lathes;
MT5 for 18” & 22” lathes)
1 Operating Instructions Manual
1 Parts List Manual
1 Test Record
1 Warranty Card

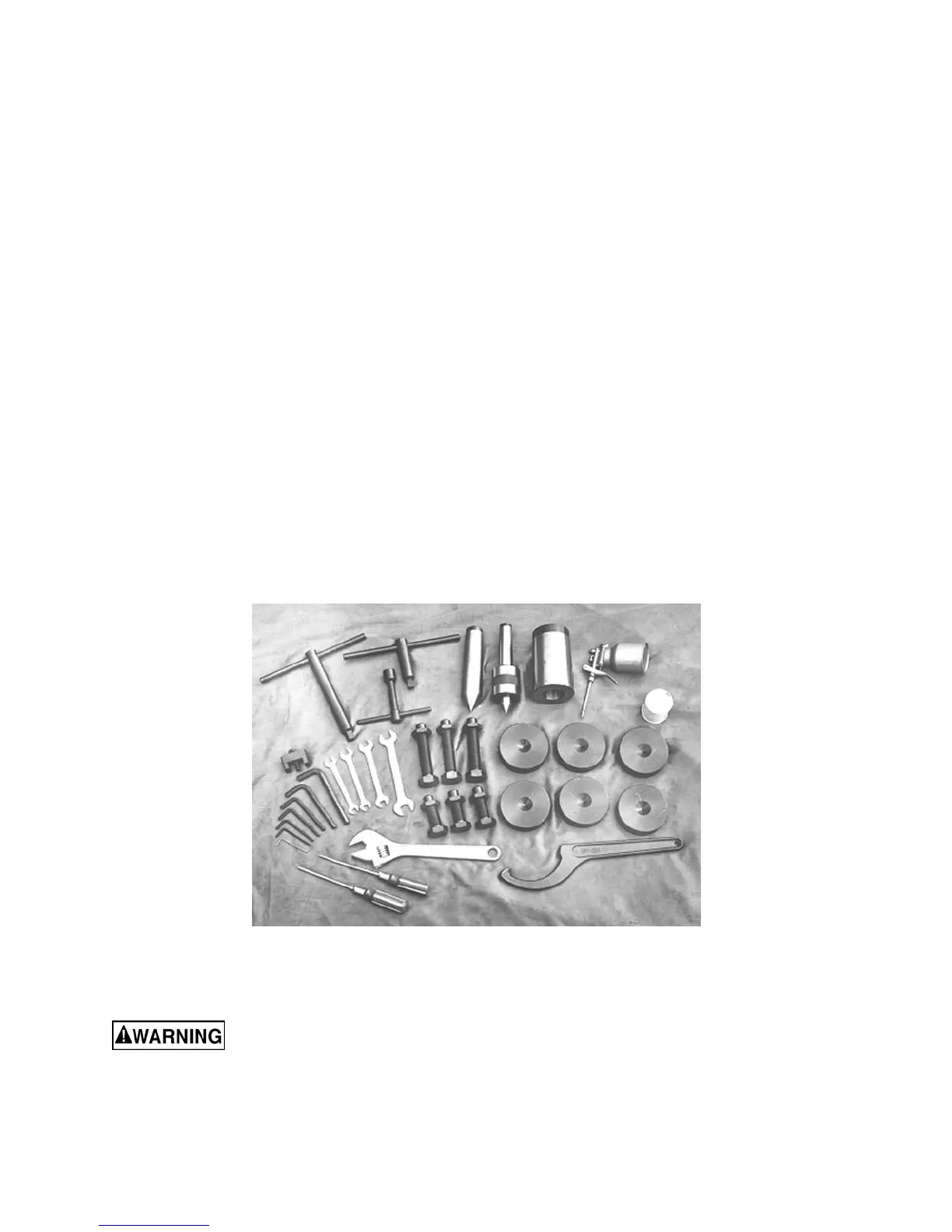

contents of Tool Box
Read and understand the entire contents of this manual before attempting set-up
or operation! Failure to comply may cause serious injury.
