Jet GH-20 ZH Series User Manual

11
7.0 Unpacking
Open shipping container and check for shipping
damage. Report any damage immediately to your
distributor and shipping agent. Do not discard any
shipping material until the Latheis set up and
running properly.
Compare the contents of your container with the
following parts list to make sure all parts are intact.
Missing parts, if any, should be reported to your
distributor. Read the instruction manual thoroughly
for set up, maintenance and safety instructions.
7.1 Contents of the Shipping Container
(Refer to Figure 3)
1 Lathe
2 Steady Rests (mounted on Lathe)
1 Follow Rest (mounted on Lathe)
1 Three Jaw Scroll Chuck, 12-25/32” (mounted
on Lathe) – A
1 Drive Plate – B
4 Tool Holder – C
1 Face Plate, 24-25/32” (with 6 dogs) – D
1 Round Nut Spanner, 170-210 mm – E
4 Change Gears – 63T, 69T, 78T, 90T – F
1 Tool Box, containing the following:
1 Morse Reduction Sleeve – G
1 Live Center, MT-5 – H
1 Dead Center, MT-5 – I
2 Drive Pins – J
1 Cam Wrench – K
1 Chuck Wrench – L
2 Hex Socket Head Cap Screw – M
1 Gap Bridge Pin Driver – N
1 Drift Key – O
1 Round Nut Spanner (45-52 mm) – P
1 Hex Key Set (2, 3, 4, 6,8,10,12 mm) – Q
6 Leveling Bolts with Hex Nuts – R
(qty. 8 for GH-26120ZH)
6 Leveling Pads – S
(qty. 8 for GH-26120ZH)
1 Flat Blade Screwdriver – T
1 Cross Point Screwdriver – U
2 Open End Wrenches (17/19,19/22) – V
1 White Touch-up Paint Can – W
1 Oil Gun – X
1 Operating Instructions Manual
1 Parts List Manual
1 Warranty Card
1 Test Record
1 Packing List
NOTE: Optional accessories are available for JET Lathes, such as Taper Attachment, Collet Closer and
Digital Read Out. Contact your dealer or JET for more information.

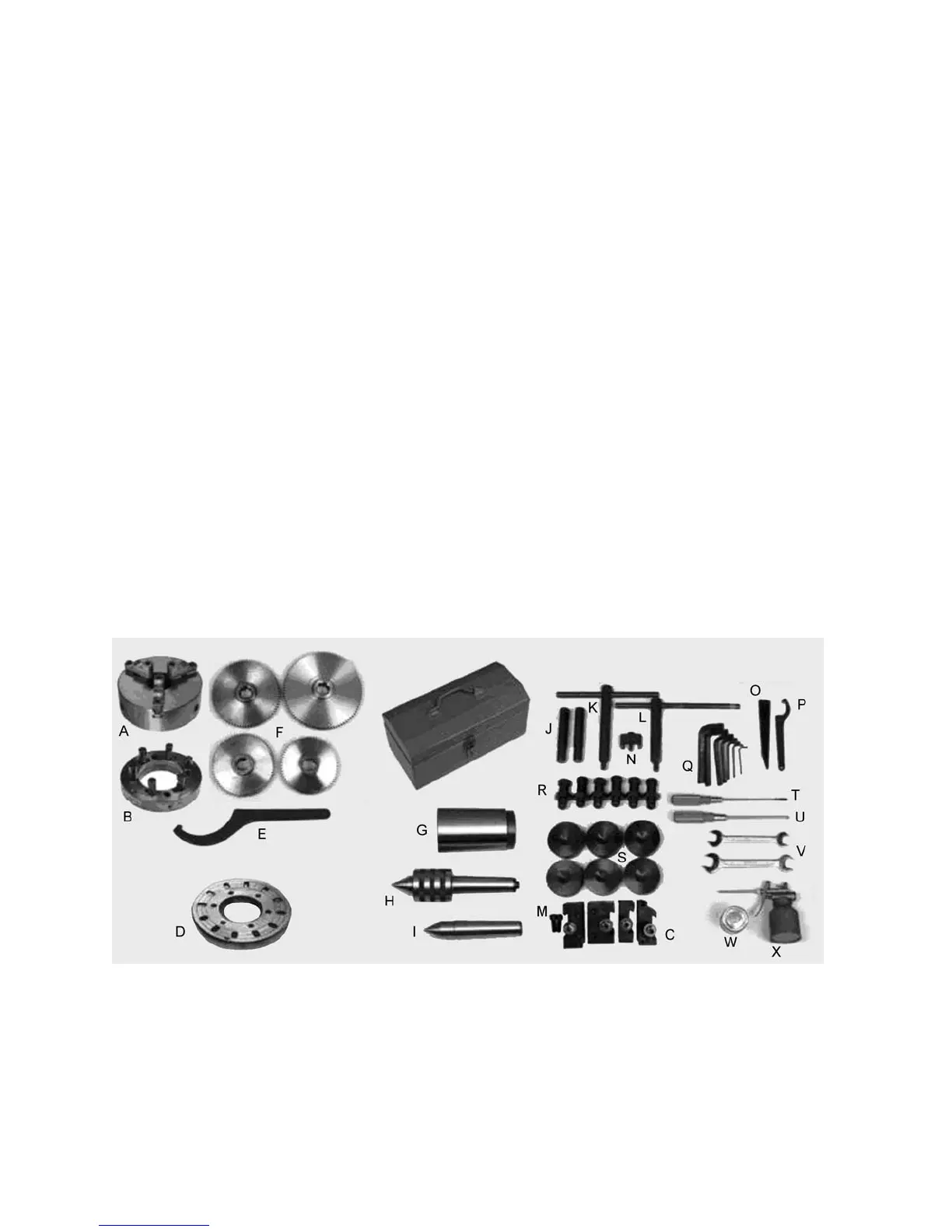

Figure 3
ZH Series Lathes – Contents of Shipping Container
