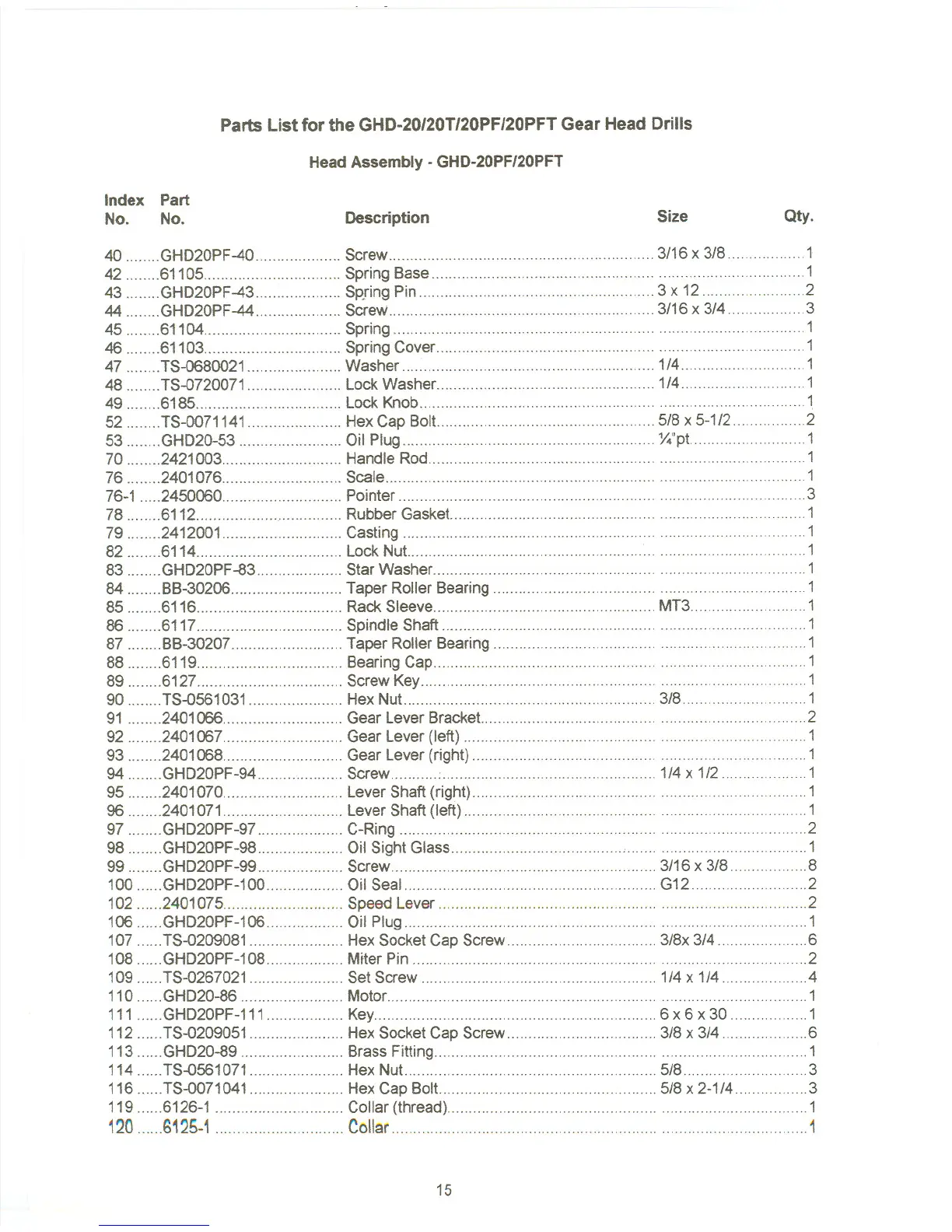

Parts List for the GHD.20/20T/20PF/20PFT Gear Head Drills
Head Assembly - GHD-20PF/20PFT
Index Part
No. No.
Description
Size
Qty.
40 GHD20PF-40 ..Screw 3/16 x 3/8 1
42 ..61105 ... Spring Base
... .., 1
43 GHD20PF-43 Spring Pin " 3 x 12 2
44 GHD20PF-44 Screw 3/16 x 3/4 3
45 .,. 61104 Spring " 1
46 ... 611 03 Spring CoveL ".. 1
47 TS-068oo21 ..""'"'''' Washer 1/4 1
48 TS-0720071 lock Washer 1/4 1
49 ..6185
lock Knob 1
52 TS-0071141 Hex Cap Bol1 5/8 x 5-1/2 2
53 GHD20-53 Oil Plug %"p1 1
70 2421003 " '" Handle Rod 1
76 2401076 Scale 1
76-1 . 2450060 Pointer 3
78 6112 Rubber Gasket 1
79 2412001 Casting"""""""""'"'''''''''''''''''''''''''''''''''''''' 1
82 "" ....6114... lock Nut ...1
83 GHD20PF -83 Star Washer ..., 1
84 BB-30206 Taper Roller Bearing " 1
85 ..6116 Rack Sleeve.. MT3 1
86 6117 Spindle Shaft """"'" 1
87 BB-30207 Taper Roller Bearing 1
88 6119 Bearing Cap ..1
89 6127 Screw Key .....1
90. TS-0561031.""""""""" ... Hex Nut. """""""""""""""""""'" 3/8 1
91 ..2401066...""'"'''''''' Gear lever Bracket 2
92 2401067 Gear lever (left) 1
93 ..2401068 Gear lever (right) .." 1
94 GHD20PF-94 Screw ; 1/4 x 1/2 1
95 .. 2401070. lever Shaft (right) 1
96 2401071 "" lever Shaft (left) 1
97 ...GHD20PF-97 C-Ring ".. 2
98 GHD20PF-98 Oil Sight Glass , 1
99 .. GHD20PF-99 Screw... , 3/16 x 3/8 8
100 GHD20PF-100 Oil Seal G12 2
102 .. 2401 075... " ""'"'''''''''' Speed lever 2
106 . GHD20PF-106 Oil Plug 1
107 TS-0209081 Hex Socket Cap Screw 3/8x 3/4 6
108 . GHD20PF-108... Miter Pin 2
109 TS-0267021 Set Screw 1/4 x 1/4 4
110 ..GHD20-86 Motor 1
111 GHD20PF-111 Key 6 x 6 x 30 1
112 TS-0209051 Hex Socket Cap Screw 3/8 x 3/4 6
113 GHD20-89 Brass Fitting.. 1
114 TS-0561071 Hex Nut 5/8 ...3
116 1S-0071041 Hex Cap Bolt 5/8 x 2-1/4.. ..3
119 6126-1 Collar (thread).. .."..." 1
120 .. 8125-1 Collar 1
