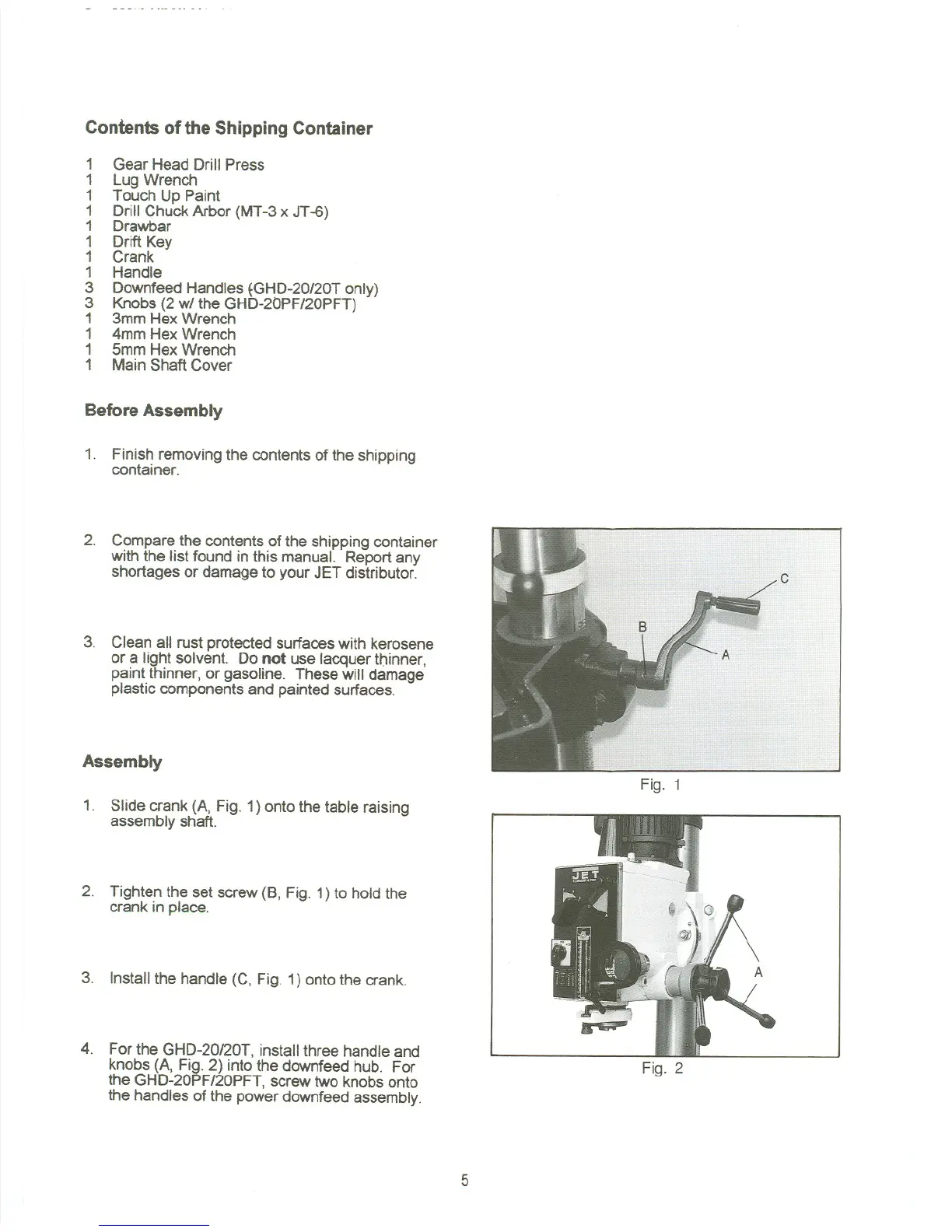

Contents of the Shipping Container
1
1
1
1
1
1
1
1
3
3
1
1
1
1
Gear Head Drill Press
LugWrench
Touch Up Paint
Drill ChuckArbor (MT-3 x JT-6)
Drawbar
Drift Key
Crank
Handle
Downfeed Handles fGHD-20/20T only)
Knobs (2 wI the GHD-20PF/20PFT)
3mm Hex Wrench
4mm Hex Wrench
5mm Hex Wrench
Main Shaft Cover
Before Assembly
1. Finish removing the contents of the shipping
container.
2. Compare the contents of the shipping container
with the list found in this manual. Report any
shortages or damage to your JET distributor.
3. Clean all rust protected surfaces with kerosene
or a light solvent. Do not use lacquer thinner,
paint thinner, or gasoline. These will damage
plastic components and painted surfaces.
Assembly
1. Slide crank (A, Fig. 1) onto the table raising
assembly shaft.
2. Tighten the set screw (8, Fig. 1)to hold the
crank in place.
3. Install the handle (C, Fig. 1) onto the crank.
4. For the GHD-20/20T, install three handle and
knobs (A, Fig. 2) into the downfeed hub. For
the GHD-20PF/20PFT, screw two knobs onto
the handles of the power downfeed assembly.
Fig. 1
Fig. 2
5
