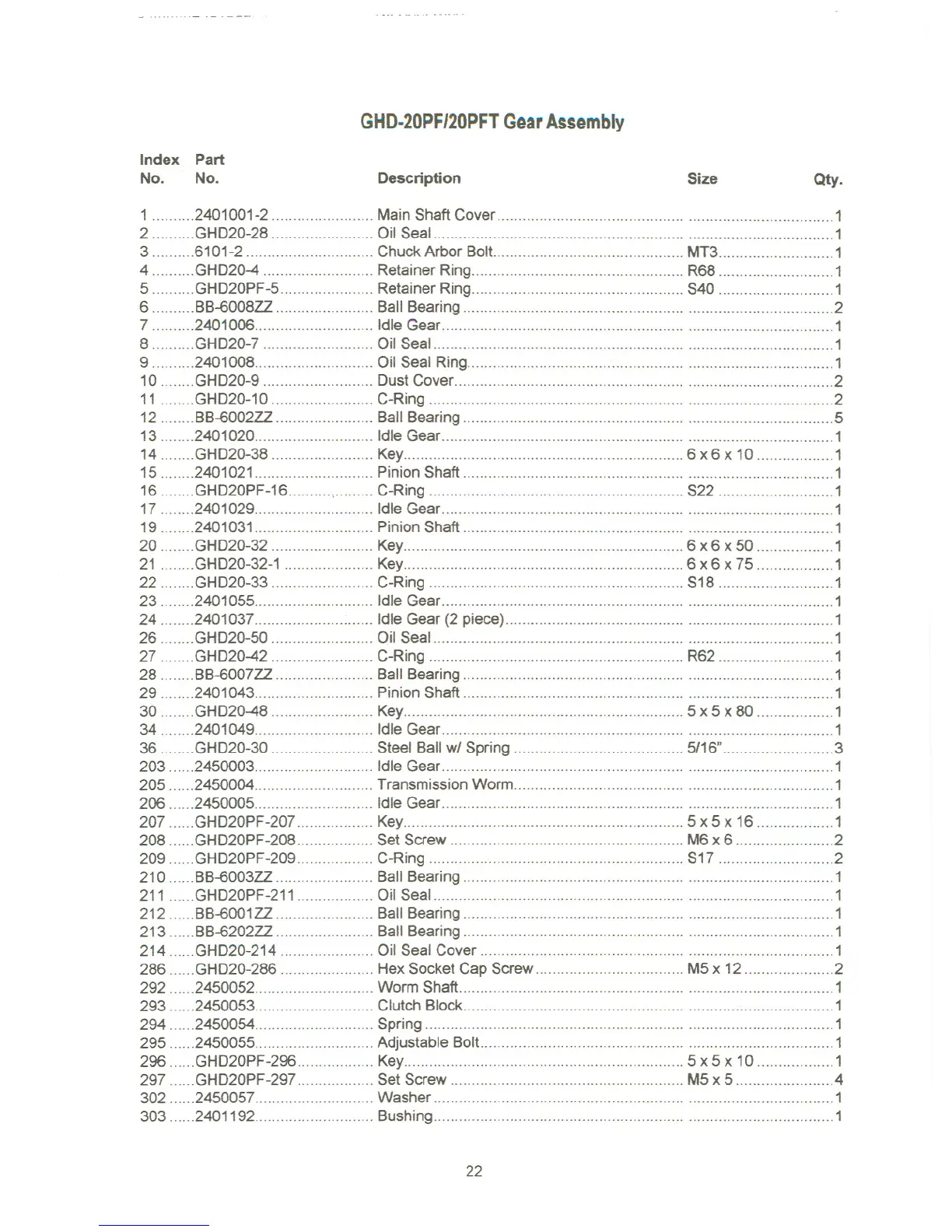

GHD-20PFJ20PFTGoarAssembly
Index Part
No. No.
Description
Size
Qty.
1 .2401001-2 """""""'''''''''' Main Shaft Cover 1
2 GHD20-28
Oil Seal 1
3 .6101-2 Chuck Arbor Bolt.. MT3.. 1
4 GHD20-4 ...... Retainer Ring... '"'''' R68 1
5 GHD20PF-5 Retainer Ring S40 1
6 .BB-6008ZZ Ball Bearing 2
7 ., ..2401 006 Idle Gear .. 1
8 GHD20-7 Oil Seal 1
9 ..2401008 Oil SealRing """'" 1
10
GHD20-9 """""""" Dust Cover 2
11 ...GHD20-10 . C-Ring ""'''''''''''''''''''''''''' ...2
12 BB-6002ZZ BallBearing.. 5
13 .2401 020 Idle Gear ""'"'''''''''' 1
14 GHD20-38 Key 6 x 6 x 10 .. 1
15 ..2401 021 Pinion Shaft "'"'''''''' 1
16 GHD20PF-16 , C-Ring S22 1
17 .2401 029 Idle Gear 1
19 .2401 031 Pinion Shaft .. '"'''''''''''''' 1
20 GHD20-32 Key 6 x 6 x 50 1
21 GHD20-32-1 Key 6 x 6 x 75 1
22 GHD20-33 C-Ring S18 1
23 .2401055 IdleGear ... 1
24 2401037 : IdleGear (2 piece) 1
26 GHD20-50 '''''''''''''''''''''''' Oil Seal 1
27 GHD20-42 , C-Ring .. .." R62 """"" 1
28 BB-6007ZZ Ball Bearing " 1
29 .2401043 PinionShaft ""'"'' 1
30 GHD20-48 Key 5 x 5 x 80 1
34 .2401 049 Idle Gear 1
36 GHD20-30 Steel Ball wI Spring 5/16" 3
203 ..2450003 Idle Gear ""'" """'" 1
205 .2450004 Transmission Worm 1
206
.2450005 Idle Gear 1
207 GHD20PF-207 Key 5 x 5 x 16 1
208 GHD20PF-208 Set Screw M6 x 6 2
209 GHD20PF-209 C-Ring S17 2
210 BB-6003ZZ Ball Bearing ... " 1
211 GHD20PF-211 ". Oil Seal 1
212 BB-6oo1ZZ Ball Bearing 1
213 ..BB-6202ZZ Ball Bearing .. 1
214 GHD20-214 Oil Seal Cover 1
286 GHD20-286 Hex Socket Cap Screw M5x 12 2
292"'" .2450052 Worm Shaft 1
293 ..2450053 Clutch Block. "'''''''''''''''''' '"'''''''''''''''''''''''''''' 1
294 .2450054 Spring 1
295 .2450055 AdjustableBoiL '"'' 1
296 GHD20PF-296 Key 5 x 5 x 10 1
297 GHD20PF-297 Set Screw M5 x 5 4
302 ..2450057 Washer 1
303 .2401192 Bushing 1
22
