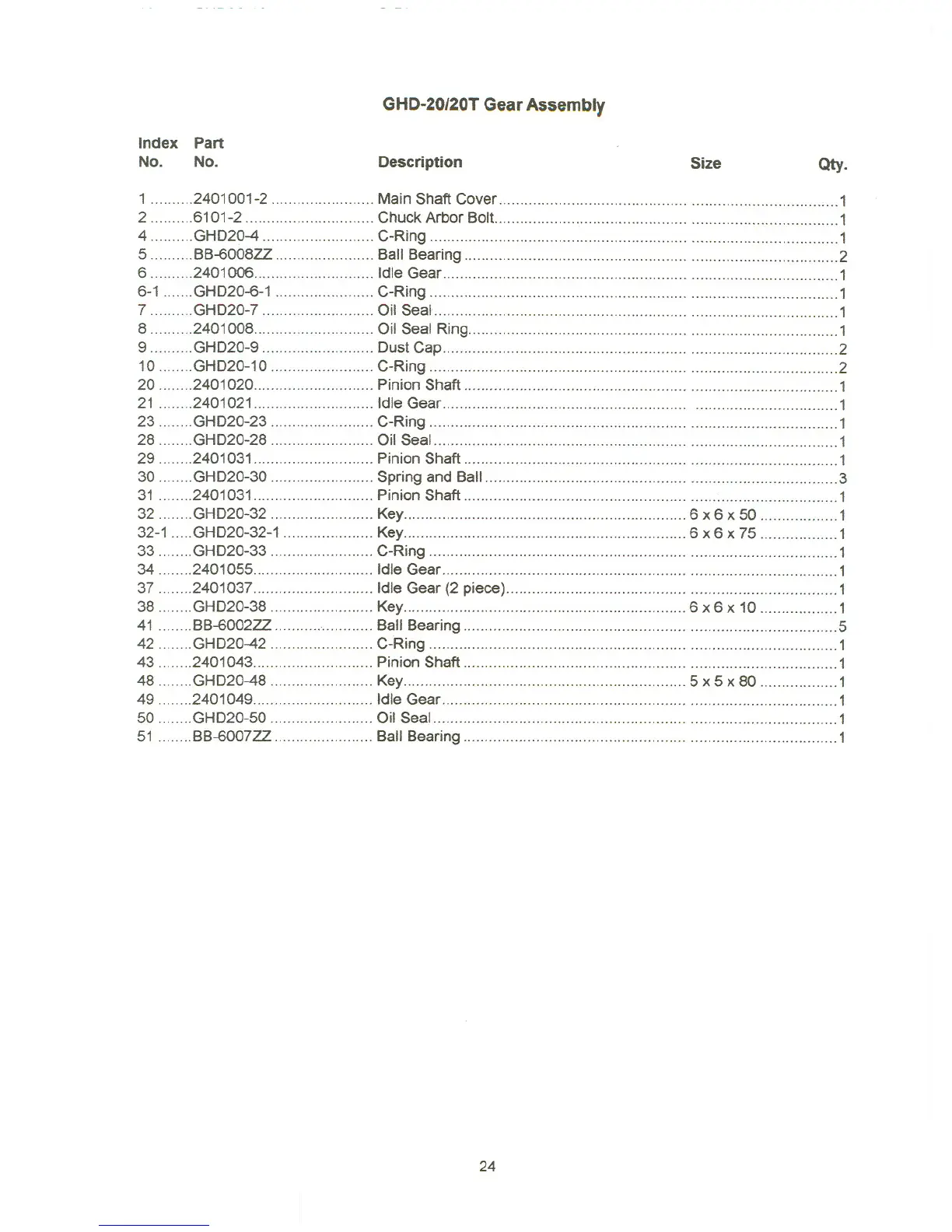

GHD-20/20T Gear Assembly

Index Part

No. No.

Description

Size

Qty.

1 2401001-2 Main Shaft Cover ,...1

2 .6101-2 """"'''''''''''''''''' Chuck Arbor BoiL 1

4 GHD20-4 C-Ring 1

5 BB-6008ZZ .." Ball Bearing 2

6 .2401 006 Idle Gear 1

6-1 . GHD20-6-1 C-Ring """"'" 1

7 GHD20-7 "'''''''''''''''''''''''' Oil Seal 1

8 2401008 Oil Seal Ring 1

9 GHD20-9 , Dust Cap 2

10 ..GHD20-1 0 C-Ring "" " ..." 2

20 ,...2401 020 """"""'" Pinion Shaft '"'''''''''''''''''' 1

21 ...2401021 Idle Gear '''''''''' 1

23 GHD20-23 C-Ring .. """"""'"'''''''''''''' 1

28 GHD20-28 Oil Sea! 1

29 2401031 Pinion Shaft """"""""""""""""""'''''''''''''''' 1

30 GHD20-30 Spring and Ball 3

31 .2401031 Pinion Shaft 1

32 GHD20-32 Key 6 x 6 x 50 1

32-1 GHD20-32-1 Key 6 x 6 x 75 1

33 GHD20-33 """""""""""" C-Ring """""""""""""""""""""" 1

34 .2401055 Idle Gear """""""""""""""""""""""""'" 1

37 2401037 Idle Gear (2 piece) 1

38 GHD20-38 Key 6 x 6 x 10 1

41 ..BB-6002ZZ.. Ball Bearing 5

42 GHD20-42 C-Ring 1

43 ..2401043 Pinion Shaft 1

48 GHD20-48 Key 5 x 5 x 80 1

49 ...2401 049 ""'"'''''''' Idle Gear. """"""'"'' '''''' . 1

50 GHD20-50 Oil Seal """""" 1

51 BB-6007ZZ " Ball Bearing ''''''' ,.. 1
