Jet GHD-20 User Manual

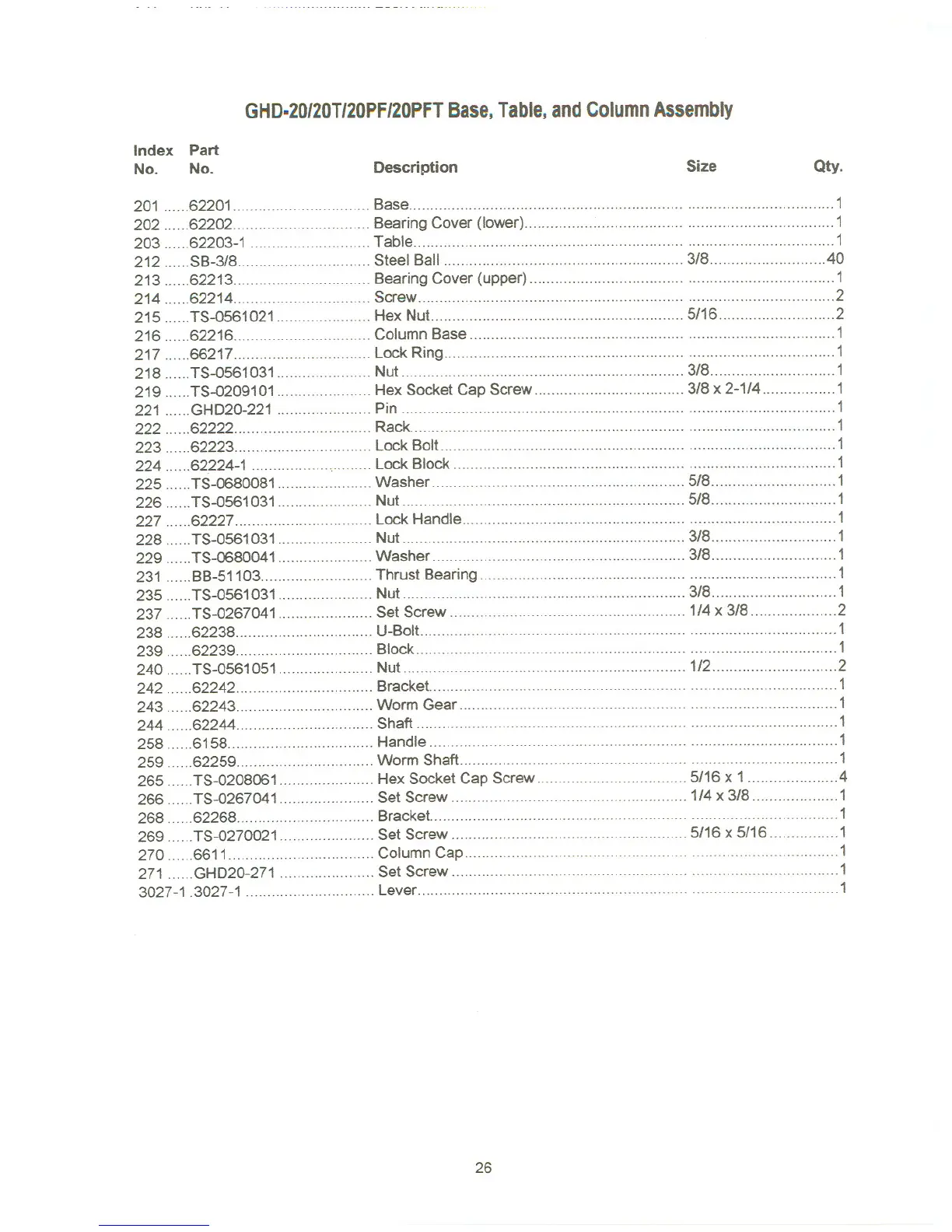

GHD.20/20T/20PF/20PFTBase,Table,andColumnAssembly
Index Part
No. No.
Description
Size
Qty.
201 ..62201
Base ".. ...1
202 62202 Bearing Cover (lower) 1
203 .62203-1 Table... " 1
212 .SB-3/8 Steel Ball 3/8 40
213 62213 Bearing Cover (uppe() 1
214 .62214 ...,.. Screw """"'" 2
215 .TS-0561 021 , Hex Nut... .." 5/16 2
216 62216 Column Base , 1
217 ..66217 Lock Ring , 1
218 .. TS-0561 031.. ... Nut ,. 3/8.. ...,.. 1
219 TS-0209101 HexSocket Cap Screw 3/8 x 2-114 1
221 GHD20-221 " Pin 1
222 ... ...62222 Rack ,.. , 1
223 .62223 Lock Bolt. " . ".. 1
224 .62224-1 ". Lock Block.. .." " 1
225 TS-0680081 Washer 5/8 1
226 TS-0561 031 Nut. 5/8 1
227 62227 Lock Handle 1
228 TS-0561 031 , Nut 3/8 1
229 ..TS-0680041 . , Washer , 3/8 1
231 BB-51103 Thrust Bearing ,... 1
235 TS-0561 031 Nut 3/8 1
237 TS-0267041 Set Screw 1/4 x 3/8 2
238 .62238 U-Bolt 1
239 ..62239 Block 1
240 .TS-0561 051 Nut. 1/2 2
242 .62242 " Bracket " " ".. 1
243 .62243 Worm Gear , ..".. 1
244 .62244 ...,... Shaft... , , , 1
258 .6158 Handle " .." " 1
259 ..62259 Worm Shaft " ...1
265 TS-0208061 Hex Socket Cap Screw 5/16 x 1 4
266 TS-0267041 Set Screw 1/4 x 3/8 1
268 .62268 Bracket .., ...... .,.. ... 1
269 TS-0270021 Set Screw 5/16 x 5/16 1
270 6611 Column Cap 1
271 GHD20-271 ".. Set Screw 1
3027-1 .3027-1 Lever .., . 1
