7
Shipping Contents
Unpack the carton and verify that all parts listed
below are included.
Main Parts
1 ea Head Assembly
1 ea Table
1 set Column and Table Bracket Assembly
1 ea Base

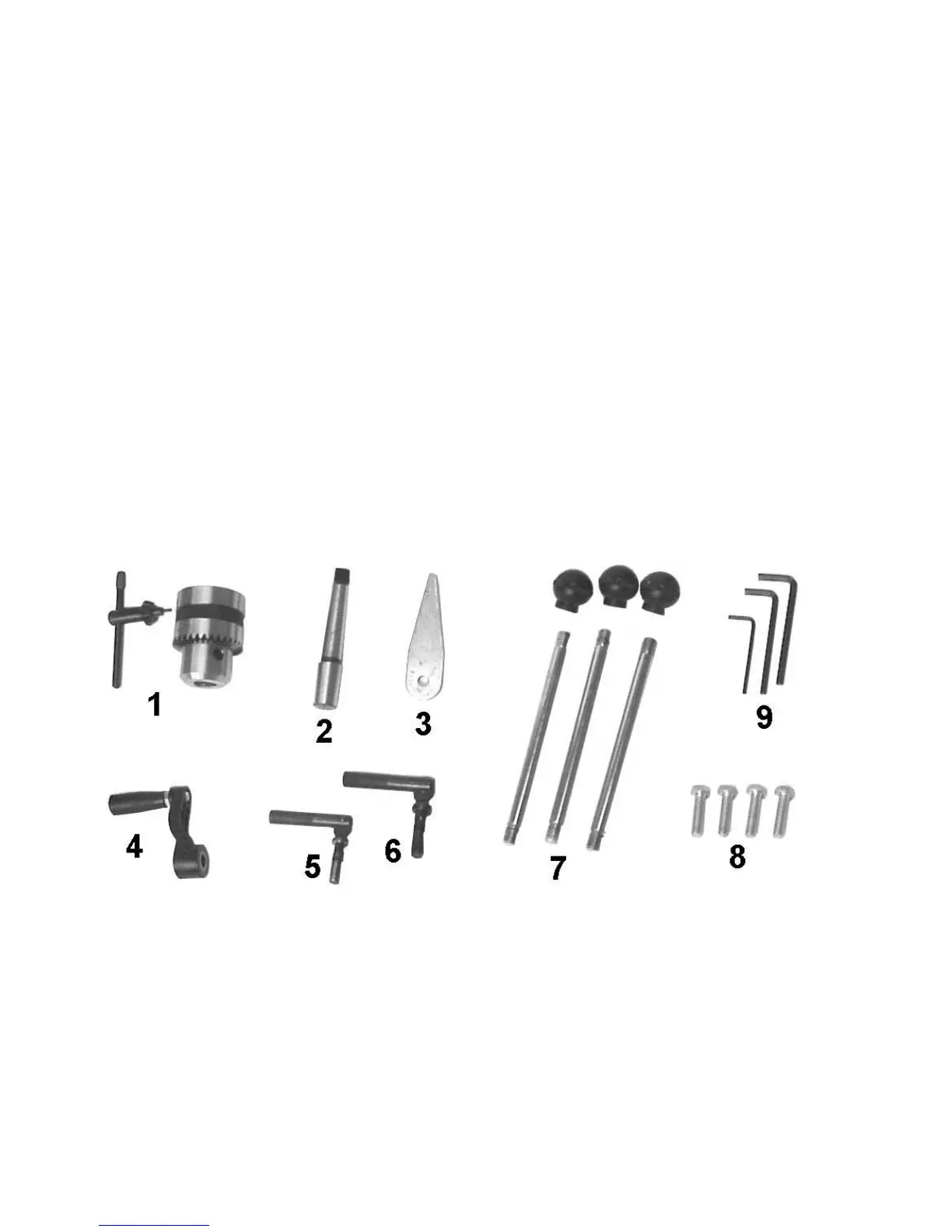

Additional Parts
1. 1 set Chuck and Chuck Key
2. 1 pc Arbor
3. 1 pc Drift Key
4. 1 pc Table Crank Handle
5. 1 pc Table Lock Handle
6. 1 pc Column Lock Handle
7. 3 pcs Downfeed Handles and Knobs
8. 4 pcs M10 x 40 Hex Cap Screws
9. 1 set Hex Wrenches (3mm, 5mm, 6mm)
Other Material
1 ea Owner’s Manual
1 ea Warranty Registration Card
Required Tools
1. 17mm Box Wrench or a 6” – 8” Adjustable
Wrench
2. 15/16" wrench
Additional Parts
