23

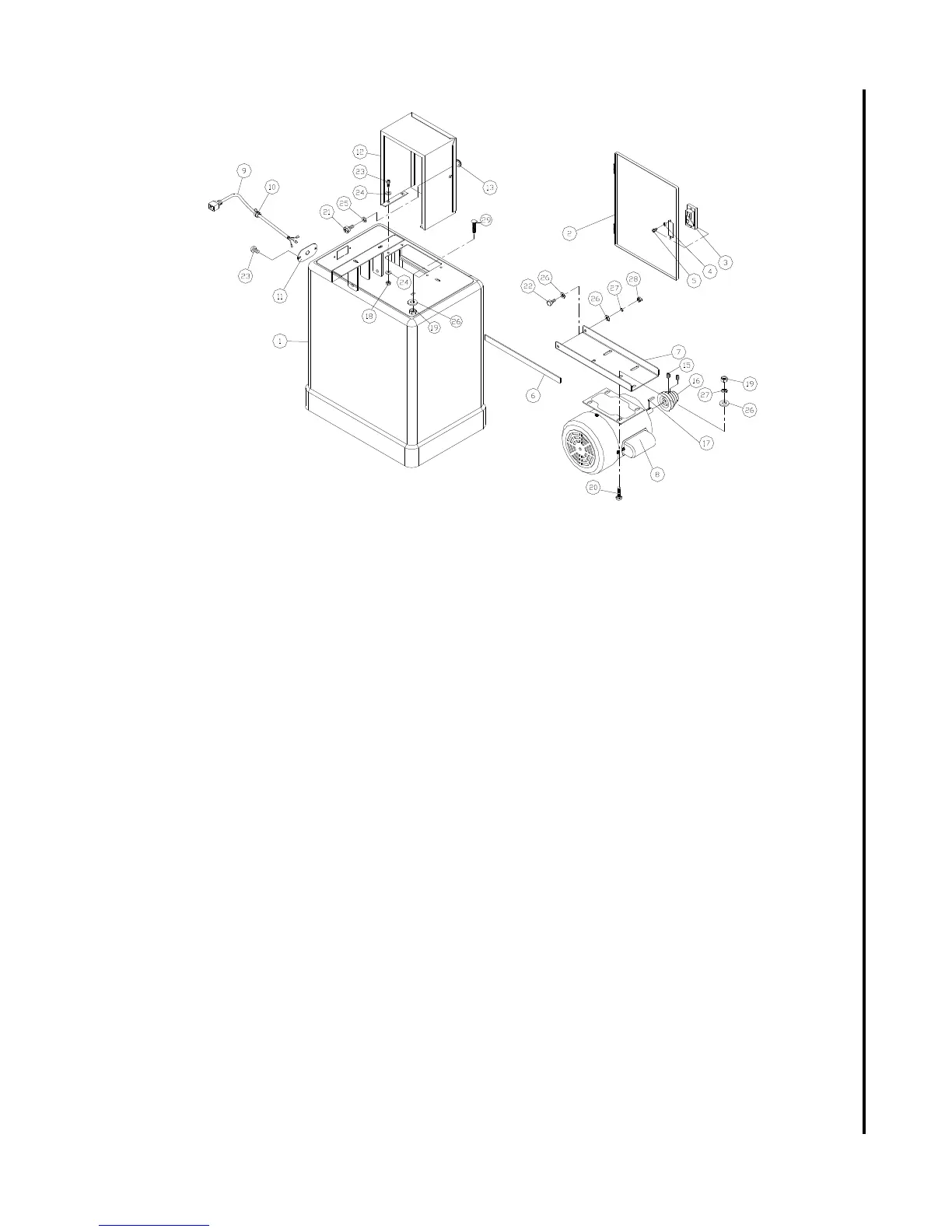

Exploded View and Parts Listing– Base– Models J-8201 and J-8203
In No. Part No. Description Size Qty.
1 ......... J-5513834 .....................Closed Stand ......................................................................................... 1
........... J-5507565 .....................Closed Stand Assembly w/o Motor ........................................................ 1
2 ......... J-5513835 .....................Door ...................................................................................................... 1
3 ......... 5513836 ........................Lock ...................................................................................................... 1
4 ......... 5513837 ........................Washer.................................................................................................. 1
5 ......... 5513838 ........................Pan Head Bolt .....................................................M4x5 ........................ 2
........... 5513858 ........................Lock Assembly (included #3, 4 and 5) ................................................... 1
6 ......... 5513839 ........................Pad........................................................................................................ 2
7 ......... J-5513861 .....................Motor Bracket ....................................................................................... 1
8 ......... J-5784391 .....................Motor ...................................................................115/230V, 1Ph .......... 1
........... J-5784411 .....................Motor ................................................................... 230/460V, 3Ph.......... 1
9 ......... 5784421 ........................Motor Cord .......................................................... 1Ph .......................... 1
........... 5784431 ........................Motor Cord .......................................................... 3Ph .......................... 1
10 ....... 5513842 ........................Strain Relief ...........................................................................................2
11........ 5784281 ........................Strain Relief Plate .................................................................................. 1
12 ....... J-5513845 .....................Pulley Cover .......................................................................................... 1
13 ....... 5513846 ........................Knob ...................................................................................................... 1
15 ....... TS-1523011 ...................Set Screw ...........................................................M6x6 ........................ 2
16 ....... 5784682 ........................Pulley .................................................................................................... 1
17 ....... 5513859 ........................Key......................................................................5x5x40 ..................... 1
18 ....... TS-1540031...................Hex Nut ...............................................................M5 ............................ 4
19 ....... TS-2311081 ...................Hex Nut ...............................................................M8 ............................ 5
20 ....... 5513849 ........................Carriage Bolt .......................................................M8x16 ...................... 4
21 ....... 5784331 ........................Hex Head Bolt .....................................................M6x12 ...................... 1
22 ....... TS-1490041...................Hex Head Bolt .....................................................M8x25 ...................... 2
23 ....... 5782761 ........................Pan Head Bolt .....................................................M5x12 ...................... 6
24 ....... TS-1550031...................Flat Washer ........................................................M5 ............................ 8
25 ....... 5511747 ........................Flat Washer ........................................................ M6 ............................ 1
26 ....... TS-1550061...................Flat Washer ........................................................M8 ............................ 9
27 ....... 5511752 ........................Lock Washer ....................................................... M8 ............................ 6
28 ....... TS-1541031...................Nylon Nut ............................................................M8 ............................ 2
29 ....... 5784683 ........................Carriage Bolt .......................................................M8x50 ...................... 1
