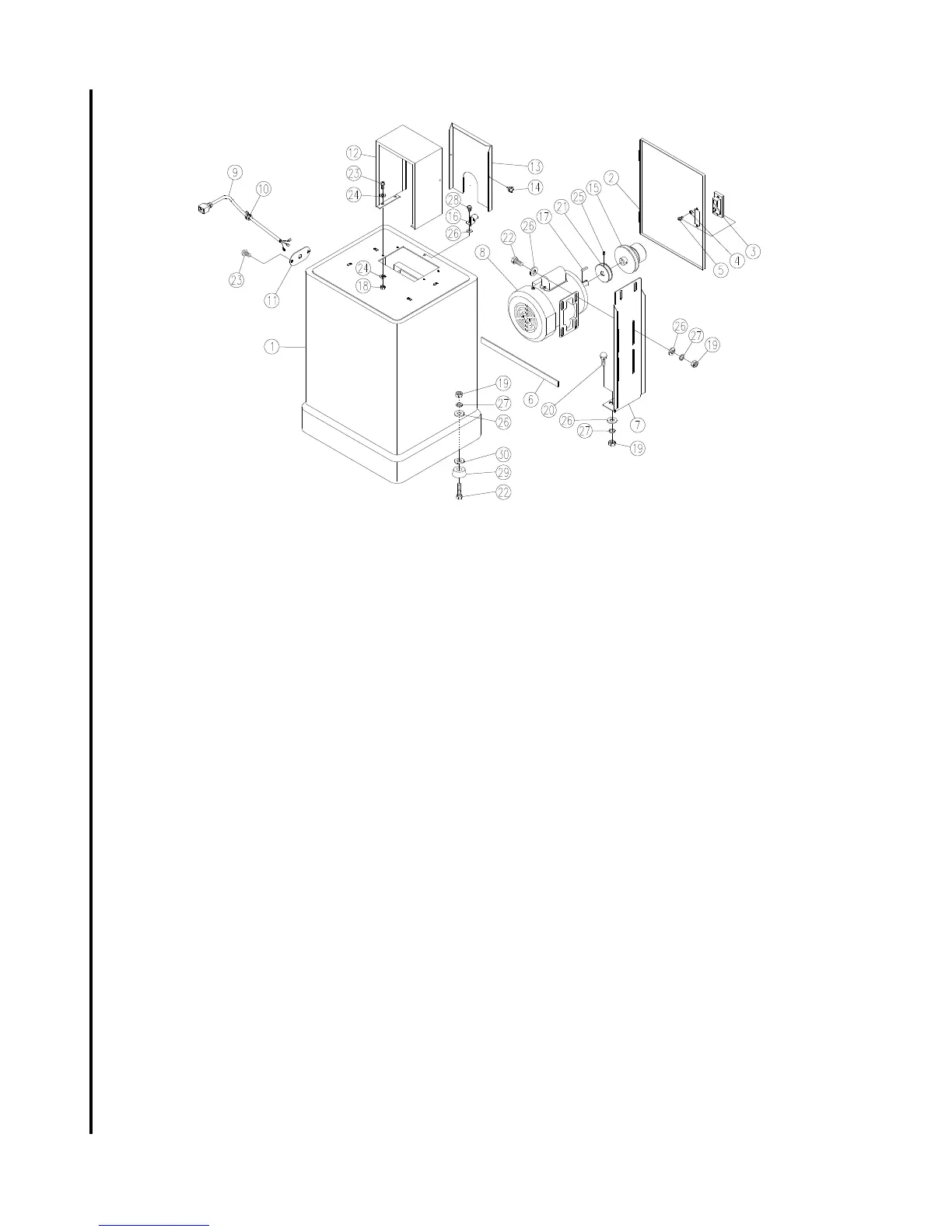

Exploded View and Parts List – Base –Models J-8201VS and J-8203VS
In No. Part No. Description Size Qty.
1 ......... J-5513860 .....................Closed Stand ......................................................................................... 1
2 ......... J-5513835 .....................Door ...................................................................................................... 1
3 ......... 5513836 ........................Lock ...................................................................................................... 1
4 ......... 5513837 ........................Washer.................................................................................................. 1
........... 5513858 ........................Lock Assembly (included #3, 4 and 5) ................................................... 1
5 ......... 5513838 ........................Pan Head Bolt .....................................................M4x5 ........................ 2
6 ......... 5513839 ........................Pad........................................................................................................ 2
7 ......... J-5784684 .....................Motor Bracket ....................................................................................... 1
8 ......... J-5784391 .....................Motor ...................................................................115/230V,1Ph ........... 1
........... J-5784411 .....................Motor ................................................................... 230/460V,3Ph........... 1
9 ......... 5784421 ........................Motor Cord .......................................................... 1Ph .......................... 1
........... 5784431 ........................Motor Cord .......................................................... 3Ph .......................... 1
10 ....... 5513842 ........................Strain Relief ...........................................................................................2
11........ 5784281 ........................Strain Relief Plate .................................................................................. 1
12 ....... J-5784685 .....................Doorframe .............................................................................................. 1
13 ....... J-5784686 .....................Cover ..................................................................................................... 1
14 ....... 5784687 ........................Knob ....................................................................M5x12 ...................... 2
15 ....... 5784688 ........................Motor VS Pulley .................................................................................... 1
16 ....... 5784689 ........................Locate Plate .......................................................................................... 1
17 ....... 5513859 ........................Key......................................................................5x5x40 ..................... 1
18 ....... TS-1540031...................Hex Nut ...............................................................M5 ............................ 4
19 ....... TS-2311081 ...................Hex Nut ...............................................................M8 .......................... 12
20 ....... 5513849 ........................Carriage Bolt .......................................................M8x16 ...................... 4
21 ....... 5784690 ........................Motor Pulley .......................................................................................... 1
22 ....... TS-1490041...................Hex Cap Screw ...................................................M8x25 ...................... 8
23 ....... 5782761 ........................Pan Head Bolt .....................................................M5x12 ...................... 6
24 ....... TS-1550031...................Flat Washer ........................................................M5 ............................ 8
25 ....... TS-1523031...................Set Screw ...........................................................M6x10 ...................... 2
26 ....... TS-1550061...................Flat Washer ........................................................M8 .......................... 16
27 ....... 5511752 ........................Lock Washer ....................................................... M8 .......................... 12
28 ....... TS-1490021...................Hex Cap Screw ...................................................M8x16 ...................... 1
29 ....... 5784692 ........................Rubber Foot .......................................................................................... 4
30 ....... 5784693 ........................Special Washer ..................................................................................... 4
