4.3 Content of delivery
150mm tool rest
Live centre
75mm face plate
Safety goggles
Spur centre and tooling knockout
Operating tools
Assembly kit
Operating manual
Spare parts list.
5. Transport and start up
5.1 Transport and installation
The machine is designed to operate in
closed rooms and must be placed
stable on a firm and levelled table
surface.
5.2 Assembly
The JML-1014VS is fully assembled
and comes ready to use out of the
box.
If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the
machine!
Dispose of the packing in an
environmentally friendly manner.
Clean all rust protected surfaces with
a mild solvent.
5.3 Mains connection
Mains connection and any extension
cords used must comply with
applicable regulations.
The mains voltage must comply with
the information on the machine licence
plate.
The mains connection must have a
10 A surge-proof fuse.
Only use power cords marked H07RN-
F
Connections and repairs to the
electrical equipment may only be
carried out by qualified electricians.
5.4 Dust collection
Use a suitable dust collection and
filtration system to avoid a high dust
concentrations in the air.
5.5 Starting operation
You can start the machine with the
green ON-button (A, Fig 1).
The lathe will begin turning and driving
the headstock spindle. The lathe will
reach full speed in about 1 to 3
seconds.

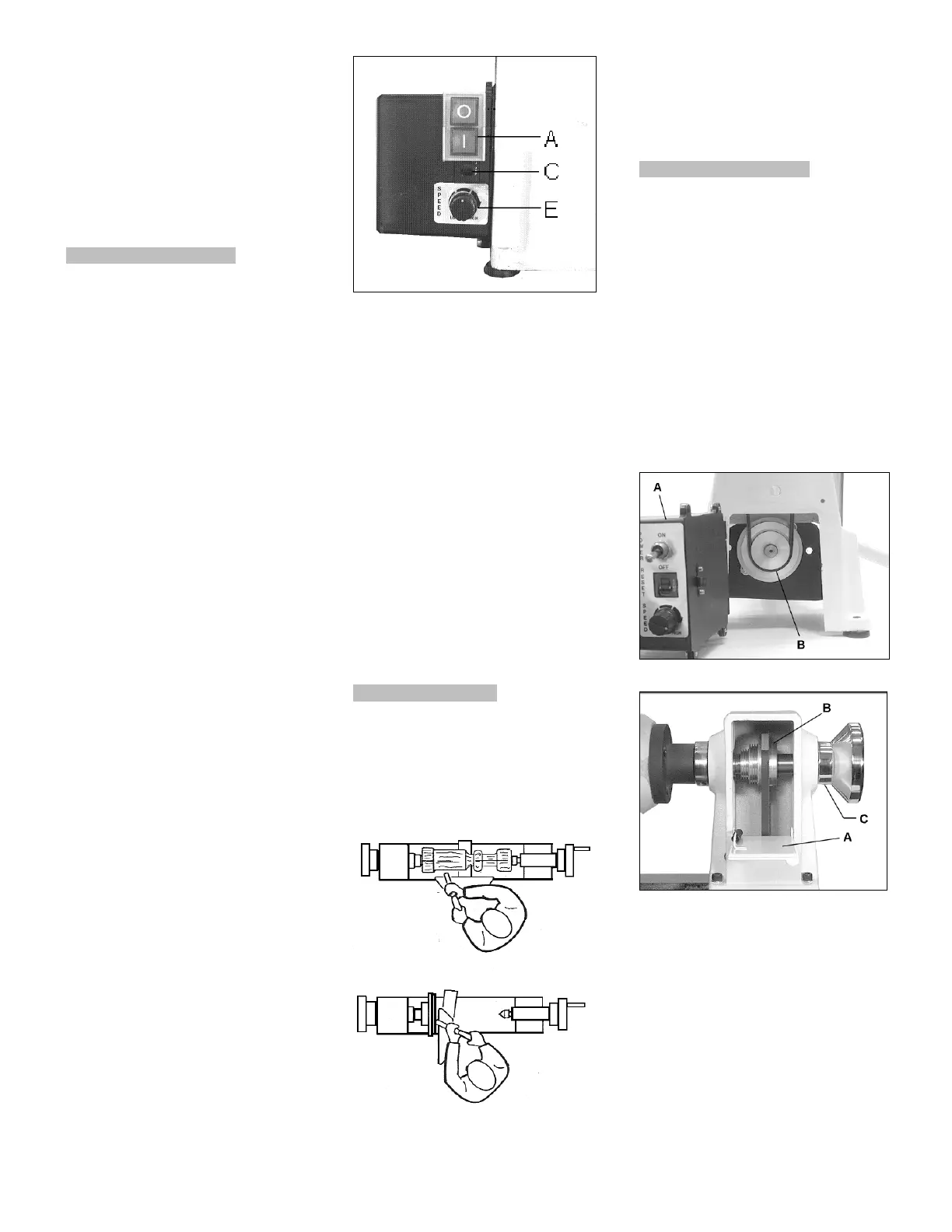

Fig 1
The red OFF-button stops the
machine.
Wait for the workpiece to come to a
complete stop.
The variable speeds of the lathe are
controlled by the speed knob (E) on the
control box as well as the position of
the belt on the pulleys.
Warning:
Always set the speed control knob to
its lowest setting before starting lathe.
Never start a workpiece at maximum
speed.
In case of machine overload the reset
button (C) will react.
-Turn off machine power
-Push the reset button
-Then re-start the lathe.
6. Machine operation
Successful wood turning does not
result from high speeds, but rather,
from the correct use of turning tools.
A perfect and sharp wood turner tool is
a precondition for professional wood-
turning.
Fig 2
Always support the tool on the tool
rest and guide with the palm of your
hand keeping your fingers closed.
7. Setup and adjustments
General note:
Setup and adjustment work may
only be carried out after the
machine is protected against
accidental starting by pulling the
mains plug.
7.1 Changing speed range
Disconnect the machine from the
power source (unplug) !
Pull open the control box at the left
side of the base (A, Fig 3) and the
access door at the back side of the
headstock (A, Fig 4) to expose the
pulleys.
Fig 3
Fig 4
Take tension off the belt. Loosen the
motor plate lock (A, Fig 5) and lift up
motor plate handle (B).
