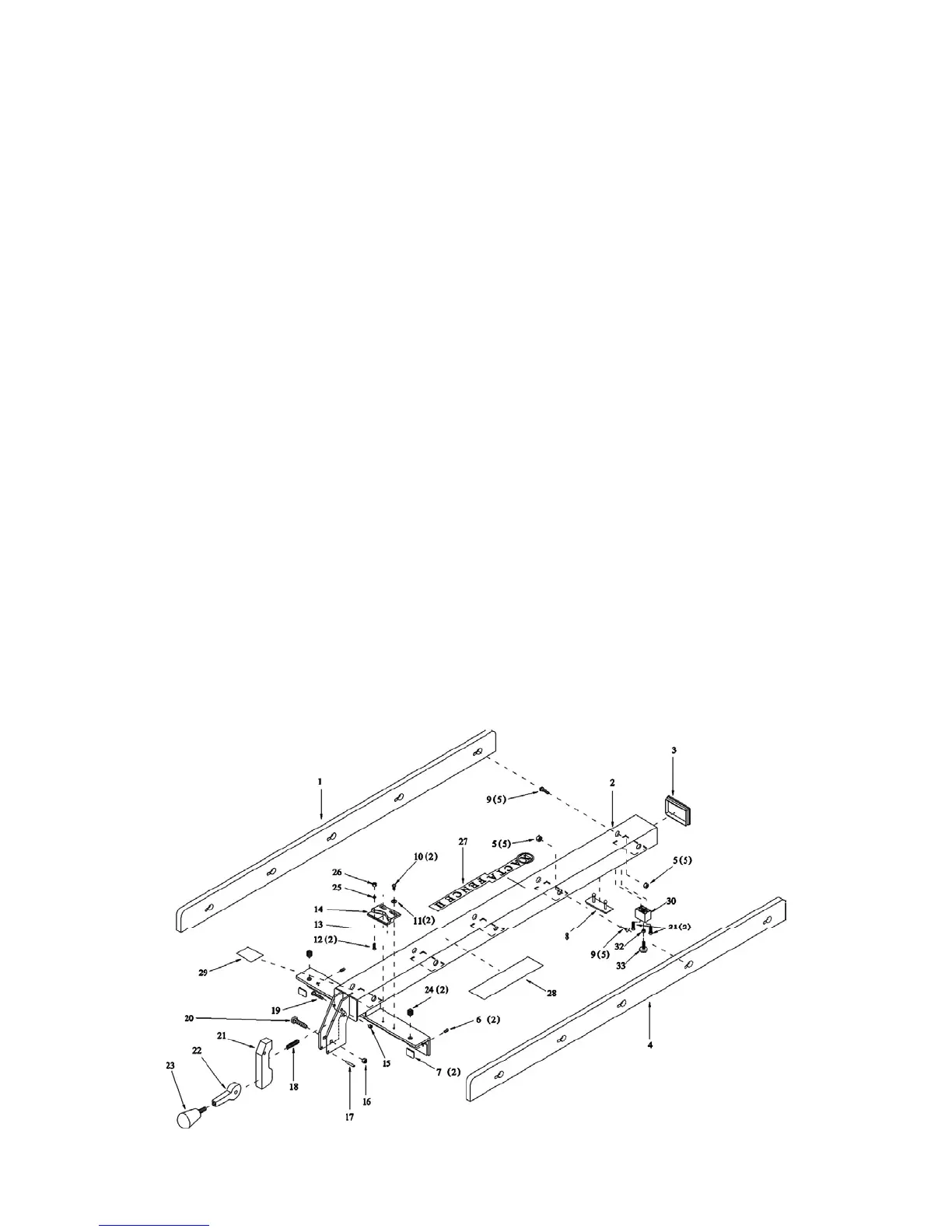

Parts for the XACTA Fence II Commercial 30/50
Index No. Part No. Description Size Qty
1 ............... XF2-101 ...................Left Side Plate...................................................... .................................... 1
2 ............... XF2-102 ...................Fence Body Assembly ......................................... .................................... 1
3 ............... XF2-103 ...................Tube Cover .......................................................... .................................... 1
4 ............... XF2-104 ...................Right Side Plate ................................................... .................................... 1
5 ............... TS-0640071 .............Lock Nut ............................................................... 1/4”-20....................... 10
6 ............... TS-0271031 .............Set Screw............................................................. 3/8”-16 x 3/8” .............. 2
7 ............... 3575081 ...................Fluoroway Pad ..................................................... .................................... 2
8 ............... XF2-108 ...................Pad....................................................................... .................................... 1
9 ............... TS-0151011 .............Carriage Bolt ........................................................ 1/4”-20 x 3/4” ............ 10
10 .............TS-081D022.............Pan Head Machine Screw ................................... 10-32 x 3/8”................. 2
11 .............TS-0680021 .............Flat Washer.......................................................... 1/4”.............................. 2
12 .............TS-081D021.............Flat Head Machine Screw.................................... 10-32 x 3/8”................. 2
13 .............800708950 D ...........Cursor .................................................................. .................................... 1
14 .............800708950 C ...........Cursor Bracket ..................................................... .................................... 1
15 .............TS-0640071 .............Lock Nut ............................................................... 1/4”-20......................... 1
16 .............TS-0640091 .............Lock Nut ............................................................... 3/8”-16......................... 1
17 .............XF2-117 ...................Spring Pin............................................................. 4mm x 28 .................... 1
18 .............6813042 ...................Compression Spring ............................................ .................................... 1
19 .............TS-0151041 .............Carriage Bolt ........................................................ 1/4”-20 x 1-1/2” ........... 1
20 .............TS-0160021 .............Carriage Bolt ........................................................ 3/8”-16 x 1-1/2” ........... 1
21 .............3215301 ...................Foot Cam ............................................................. .................................... 1
22 .............3076232 ...................Lock Cam............................................................. .................................... 1
23 .............6430055 ...................Knob w/stud ......................................................... .................................... 1
24 .............XF-5 .........................Nylon Adjustment Screw...................................... .................................... 2
25 .............TS-0680021 .............Flat Washer.......................................................... 1/4”.............................. 2
26 .............TS-0560081 .............Hex Nut ................................................................ 10-32........................... 2
27 .............XF2-127 ...................XCTA Fence Label............................................... .................................... 1
28 .............XF2-128 ...................Instruction Label................................................... .................................... 1
29 .............XF2-129 ...................JET Label ............................................................. .................................... 1
