Jet JTAS-10 - Parts for the XACTA Fence II Rail Assembly

14

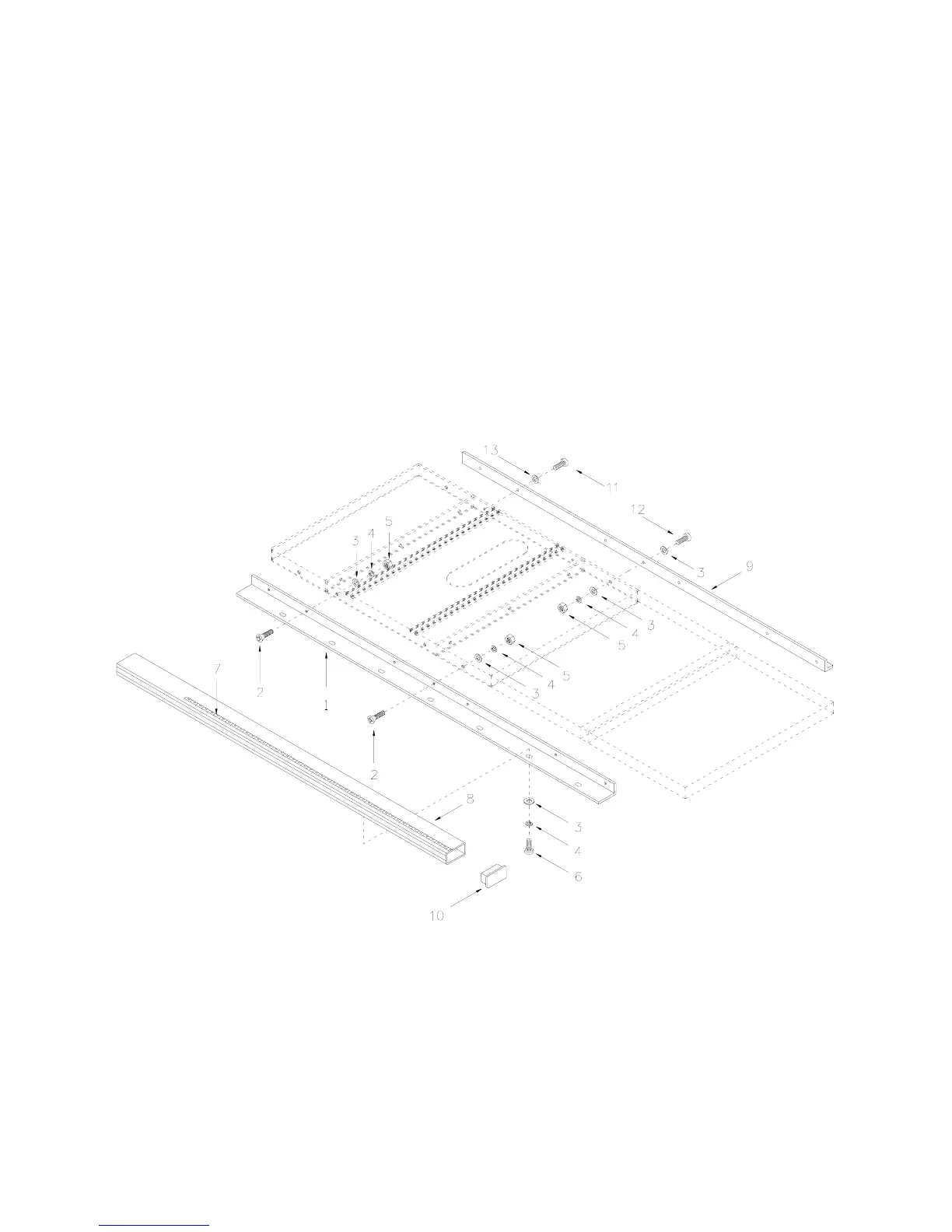

Parts for the XACTA Fence II Rail Assembly
Index No. Part No. Description Size Qty
1 ............... XF2-201 ...................Front Rail (50”)..................................................... .................................... 1
.................XF2-201A.................Front Rail (30”)..................................................... .................................... 1
2 ............... TS-081F081 .............Flat Head Screw .................................................. 1/4”-20 x 1-1/2” ........... 7
3 ............... TS-0680021 .............Flat Washer.......................................................... 1/4”............................ 24
4 ............... TS-0720071 .............Lock Washer ........................................................ 1/4”............................ 19
5 ............... TS-0561011 .............Hex Nut ................................................................ 1/4”-20....................... 12
6 ............... TS-0050031 .............Hex Cap Screw .................................................... 1/4”-20 x 3/4” .............. 7
7 ............... XF2-207 ...................Scale (50”)............................................................ .................................... 1
.................XF2-207A.................Scale (30”) ........................................................... .................................... 1
8 ............... XF2-208 ...................Guide Rail (50”).................................................... .................................... 1
.................XF2-208A.................Guide Rail (30”).................................................... .................................... 1
9 ............... XF2-209 ...................Rear Rail (50”) ..................................................... .................................... 1
.................XF2-209A.................Rear Rail (30”) ..................................................... .................................... 1
10 .............XF2-210 ...................Guide cover.......................................................... .................................... 2
11 .............TS-0081031 .............Hex Cap Screw .................................................... 5/16”-18 x 3/4” ............ 2
12 .............TS-0050071 .............Hex Cap Screw .................................................... 1/4” -20 x 1-1/2” .......... 5
13 .............TS-0680031 .............Flat Washer.......................................................... 5/16”............................ 2
