7.0 Setup and Assembly
7.1 Unpacking
Open shipping container and check for shipping
damage. Report any damage immediately to your
distributor and shipping agent. Do not discard any
shipping material until the Turret Mill is assembled and
running properly.
Compare the contents of your container with the
following parts list to make sure all parts are intact.
Missing parts, if any, should be reported to your
distributor. Read the instruction manual thoroughly for
assembly, maintenance and safety instructions.
NOTE: Some parts shown below may have come pre-
installed on the mill.
7.2 Contents of shipping container
Refer to Figure 2.
1 Turret Mill (not shown)
1 Flat Way Cover (rear)
1 Pleated Way Cover (front)
1 Knee Crank
1 Draw Bar
4 Handles
1 Tool Box, containing:
1 Hex Key Set (1.5-10mm)
1 17/19mm Box Wrench
1 Cross Point Screw Driver #2
1 Flat Blade Screw Driver #2
1 Plastic Oil Bottle
1 Handwheel
1 Adjustable Wrench
1 Operator’s Manual (not shown)
1 Warranty Card (not shown)

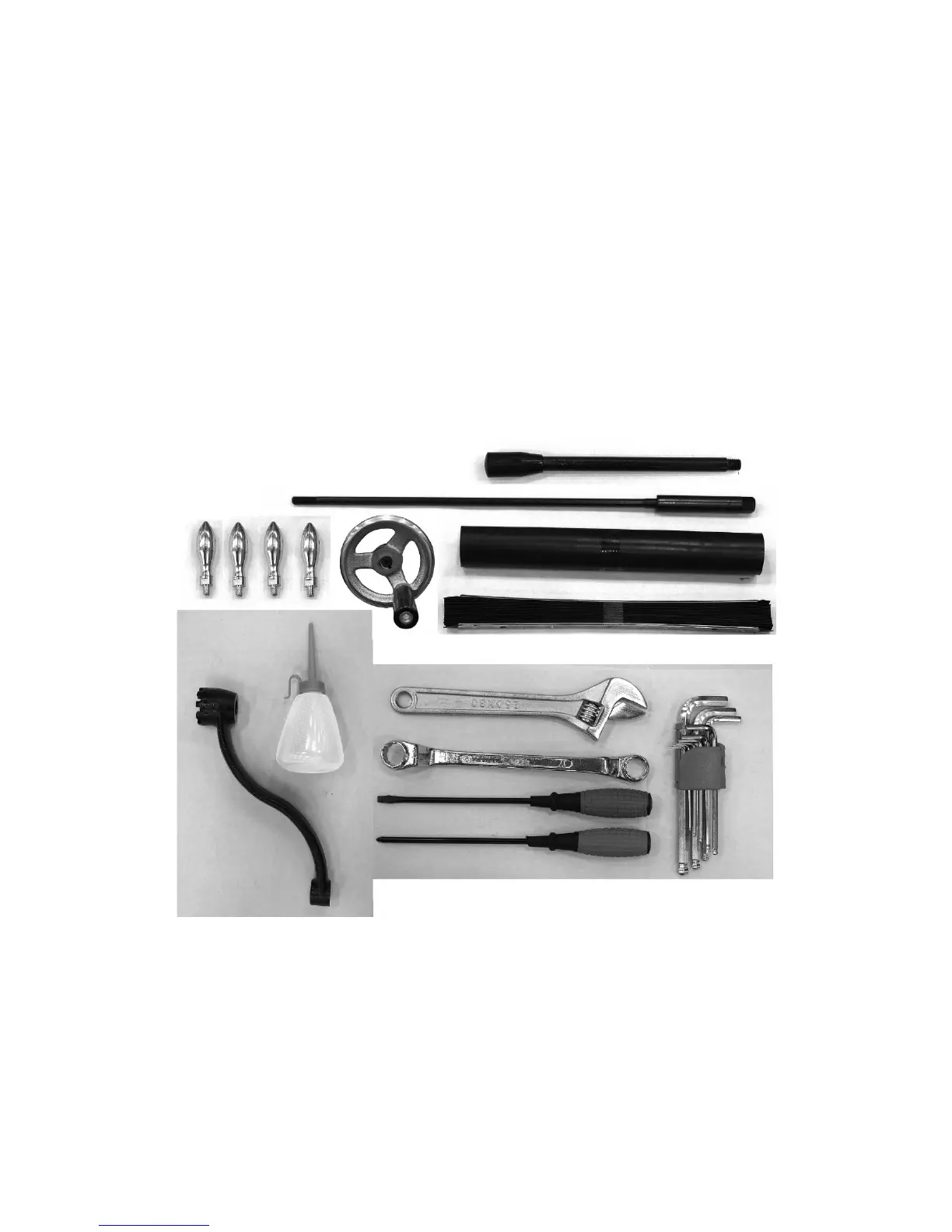

Figure 2: shipping contents
NOTE: If your mill is supplied with an optional Table Powerfeed and/or Digital Readout, be sure to consult the
separate instruction materials that accompany them.
